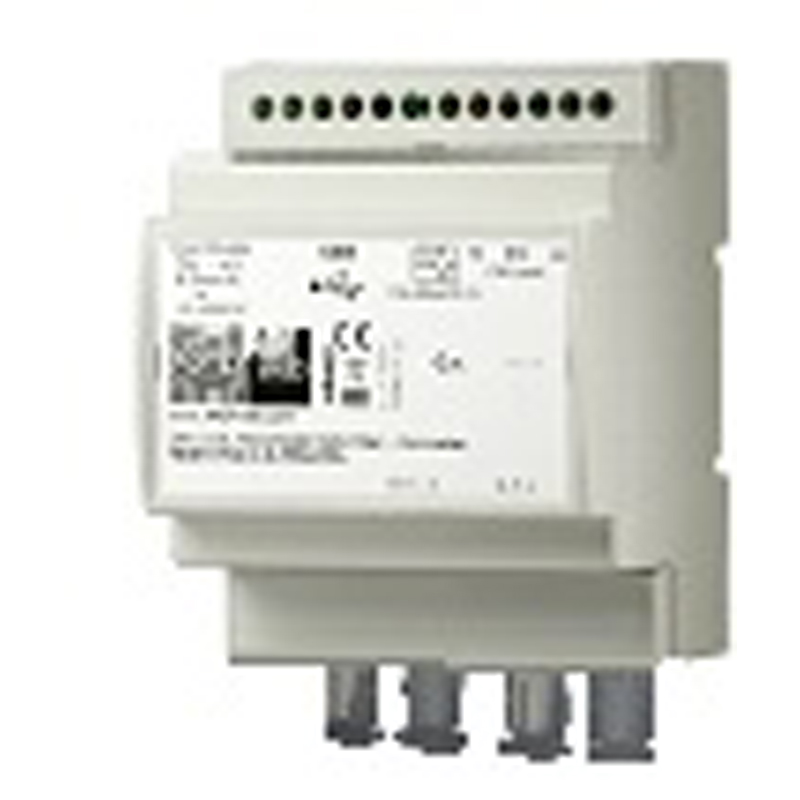

USB to Optic Fiber

Part No.: MPADFW-USB-to-Optic-Fiber
These Optic Fiber devices are designed to extend the RS485 or/and RS232 using the optic fibers.

產品介紹

RS232/RS485 / Optic Fiber - Converter

( suitable for Modbus, BACnet PTP, IEC131 etc )

These Optic Fiber devices are designed to extend the RS485 or/and RS232 using the optic fibers.
These devices are independent from the serial protocol and they are adapted for Modbus, Modbus+ and IEC131.
The HD67033M and the HD67035M are devices that allow to extend a RS232 or RS485 network through Multi-Modal optic fiber, up to 2 km.
The possible connection typologies are Point-To-Point and the Single Loop.

The HD67034M and the HD67036M are devices that allow to extend the RS232 or RS485 network through Multi-Modal optic fiber, up to 2 km. The possible connection typologies are Multidrop and the Double Loop.

These 2 series don't need to be configured by software: all the parameters of the serial line are set by the Dip-Switch.

The HD67072-B2, HD67073-B2 and HD67074-B2 are devices that allow to extend respectively RS232, RS485 and USB lines through Multi-Modal optic fiber.
The particularity of these devices is that it is possible to set the meaning of the Light/Dark into the optic fiber (0 or 1) using the internal Dip-Switch.
The possible connection typology is Point-To-Point (see the diagrams on the right).

The HD67238F allows to extend RS232 or/and RS485 networks through Multi-Modal fiber.
It is possible to set the type of serial port (RS232 or RS485) and the serial parameters using the Dip-Switch.

The HD67701 and HD67702 converters allows to convert in Optical Fiber all the buses used in the common communication systems (RS232, RS485, CAN, Ethernet, I/O).

The big advantage of these converters is the possibility to transfer in the same optical fiber system different types of bus.

In other words, it is possible to extend in the same physical means different buses, maintaining independent on different communication channels the data flows.

The HD67701 and HD67702 Converters allow to extend the networks through Multi-Modal fiber or Mono-Modal fiber or copper (Ethernet cable).

With the HD67701 is possible to make a Point-To-Point connection or a Single Loop (see the diagrams).


With the HD67702 is possible to make a Multi-Drop connection or a Double Loop (see the diagrams).


These different types of connections are possible thank the SFPs (Small Factor Pluggable): these are particular interchangeable modules that allow to change the type of cable and the maximum viable distance (up to 160 km).

To monitor the status of the optical fiber network, the devices have an auto-diagnostic system that allows to check the status of the network and find eventual failures.
With our simple software, it is possible to find all the devices in the optical fiber network and draw a simple scheme of the system.
It is possible to check the status of the devices over specific diagnostic Modbus registers too.

It is possible to add to the converters of the HD67701 and HD67702 series an I/O expansion that allows to transmit over optical fiber some I/O signals. This module can have up to 4 DI and 4 DO.
The innovation of this system is the possibility to create a map of the I/O, so the possibility to activate/deactivate more DO with the same DI.

Point-to-Point connection between two devices/networks over optical fiber.
Optimal solution to cover a long distance, isolate the two sides and when there is the necessity to pass near noise sources (engines, inductive loads, etc.).

Single Loop connection between more converters.
This solution is ideal where there is the necessity to connect/isolate over optical fiber different brenches/devices of existing systems.

Multi-Drop connection between more converters.
This solution consists in a serial connection of more converters, without the mandatory to close the optical fiber system with a loop.

Double Loop or Redundant Loop connection between more converters.
This solution ensures the security and the speed of the optical fiber associated with the redundancy of the data.
In this way, thanks to the double loop in the optical fiber system, if there is a failure in a loop, the communication will continue to work.



Series Converter RS232 from/to Optic Fibres



HD67033M

RS232 / Optic Fibres - Converter ( Daisy chain fiber connection, topology possible: Single Loop )





Ports 2xST Fibres optic; 1xRS232
Data Rates Serial RS232 Up to 115200 bps
Serial RS232 Connector Terminal Block
Fibres Optic Connector ST
Power Supply 8...19V AC ; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 71x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage



HD67034M

RS232 / Optic Fibres - Converter ( Daisy chain fiber connection, topology possible: Multi-Drop, Double Loop )





Ports 4xST Fibres optic; 1xRS232
Data Rates Serial RS232 Up to 115200 bps
Serial RS232 Connector Terminal Block
Fibres Optic Connector ST
Optic Fibres Cable Requirement 62.5/125   50/125
Power Supply 8...19V AC ; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 71x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage



Series Converter RS485 from/to Optic Fibres



HD67035M

RS485 / Optic Fibres - Converter ( Daisy chain fiber connection, topology possible: Single Loop )





Ports 2xST Fibres optic; 1xRS485
Data Rates Serial RS485 Up to 115200 bps
Serial RS485 Connector Terminal Block
Fibres Optic Connector ST
Optic Fibres Cable Requirement 62.5/125   50/125
Power Supply 8...19V AC ; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 71x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage



HD67036M

RS485 / Optic Fibres - Converter ( Daisy chain fiber connection, topology possible: Multi-Drop, Double Loop )





Ports 4xST Fibres optic; 1xRS485
Data Rates Serial RS485 Up to 115200 bps
Serial RS485 Connector Terminal Block
Fibres Optic Connector ST
Optic Fibres Cable Requirement 62.5/125   50/125
Power Supply 8...19V AC ; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 71x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage



Series Converter RS232/RS485 from/to Single-Mode Optic Fibres



HD67701-2-0-H5S

RS232 / Single-Mode Optic Fiber - Converter ( Daisy chain fiber connections allowed: Single Loop, Point to point )





Ports 1xRS232; 1xUSB; 2xOptic Fibers
Data Rates RS232 Up to 115200 bps
RS232 Connector 3way 5mm fixed screw terminal
Optic Fiber Connector SFP
Power Supply 9..19V AC; 12..35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 71x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67701



HD67702-2-0-H5S-H5S

RS232 / Single-Mode Optic Fiber - Converter ( Daisy chain fiber connections allowed: Multi-drop, redundant Double loop, Point to Point )





Ports 1xRS232; 1xUSB; 4xOptic Fibers
Data Rates RS232 Up to 115200 bps
RS232 Connector 3way 5mm fixed screw terminal
Optic Fiber Connector SFP
Power Supply 9..19V AC; 12..35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 71x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67701



HD67701-4-0-H5S

RS485 / Single-Mode Optic Fiber - Converter ( Daisy chain fiber connections allowed: Single Loop, Point to point )





Ports 1xRS485; 1xUSB; 2xOptic Fibers
Data Rates RS485 Up to 115200 bps
RS485 Connector 3way 5mm fixed screw terminal
Optic Fiber Connector SFP
Power Supply 9..19V AC; 12..35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 71x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67701



HD67702-4-0-H5S-H5S

RS485 / Single-Mode Optic Fiber - Converter ( Daisy chain fiber connections allowed: Multi-drop, redundant Double loop, Point to Point )





Ports 1xRS485; 1xUSB; 4xOptic Fibers
Data Rates RS485 Up to 115200 bps
RS485 Connector 3way 5mm fixed screw terminal
Optic Fiber Connector SFP
Power Supply 9..19V AC; 12..35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 71x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67701



Series Converter RS232/RS485 from/to Multi-Mode Optic Fibres



HD67701-2-0-D5M

RS232 / Multi-Mode Optic Fiber - Converter ( Daisy chain fiber connections allowed: Single Loop, Point to point )





Ports 1xRS232; 2xOptic Fibers
Data Rates RS232 Up to 115200 bps
RS232 Connector 3way 5mm fixed screw terminal
Optic Fiber Connector SFP
Power Supply 9..19V AC; 12..35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 71x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67701



HD67702-2-0-D5M-D5M

RS232 / Multi-Mode Optic Fiber - Converter ( Daisy chain fiber connections allowed: Multi-drop, redundant Double loop, Point to Point )





Ports 1xRS232; 4xOptic Fibers
Data Rates RS232 Up to 115200 bps
RS232 Connector 3way 5mm fixed screw terminal
Optic Fiber Connector SFP
Power Supply 9..19V AC; 12..35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 71x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67701



HD67701-4-0-D5M

RS485 / Multi-Mode Optic Fiber - Converter ( Daisy chain fiber connections allowed: Single Loop, Point to point )





Ports 1xRS485; 2xOptic Fibers
Data Rates RS485 Up to 115200 bps
RS485 Connector 3way 5mm fixed screw terminal
Optic Fiber Connector SFP
Power Supply 9..19V AC; 12..35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 71x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67701



HD67702-4-0-D5M-D5M

RS485 / Multi-Mode Optic Fiber - Converter ( Daisy chain fiber connections allowed: Multi-drop, redundant Double loop, Point to Point )





Ports 1xRS485; 4xOptic Fibers
Data Rates RS485 Up to 115200 bps
RS485 Connector 3way 5mm fixed screw terminal
Optic Fiber Connector SFP
Power Supply 9..19V AC; 12..35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 71x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67701



Series Converter/Repeater RS232/RS485/USB from/to Fiber Optic



HD67072-B2

RS232 / Optic Fibres - Converter - Modem ( Selectable: Light = '1' with Dark = '0', or vivìce versa: Light = '0' with Dark = '1' ) ( Fiber connection, topology possible: Poin to point )





Ports 1xRS232; 2xFiber Optic
Data Rates RS232 Up to 115200 bps
Data Rates Fiber Optic The same of RS232
RS232 Connector 5mm Fixed Screw Terminal
Fiber Optic Connector ST
Power Supply 8..19V AC ; 8..35V DC
Operating Temperature -40°C/+85°C (-40°F/+185°F)
Dimensions 71x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67072



HD67073-B2

RS485 / Optic Fibres - Converter - Modem ( Selectable: Light = '1' with Dark = '0', or vivìce versa: Light = '0' with Dark = '1' ) ( Fiber connection, topology possible: Poin to point )





Ports 1xRS485; 2xFiber Optic
Data Rates RS485 Up to 115200 bps
Data Rates Fiber Optic The same of RS485
RS485 Connector 5mm Fixed Screw Terminal
Fiber Optic Connector ST
Power Supply 8..19V AC ; 8..35V DC
Operating Temperature -40°C/+85°C (-40°F/+185°F)
Dimensions 71x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67072



HD67074-B2

USB / Optic Fibres - Converter - Modem ( Selectable: Light = '1' with Dark = '0', or vivìce versa: Light = '0' with Dark = '1' ) ( Fiber connection, topology possible: Poin to point )





Ports 1xUSB; 2xFiber Optic
Data Rates USB Up to 115200 bps
Data Rates Fiber Optic The same of USB
USB Connector TypeB
Fiber Optic Connector ST
Power Supply 8..19V AC ; 8..35V DC
Operating Temperature -40°C/+85°C (-40°F/+185°F)
Dimensions 71x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67072



Series Converter RS485/RS232 from/to Optic Fibres



HD67238F

RS485 / RS232 / Optic Fiber - Repeater - Extender bus line ( Fiber connection, topology possible: Poin to point )





Ports 1xRS485; 2xST Fibres optic; 1xRS232
Data Rates Serial RS232/RS485 Up to 115200 bps
Data Rates Optic Fibres Up to 1 Mbps
Serial RS232 Connector Terminal Block
Serial RS485 Connector Terminal Block
Fibres Optic Connector ST
Power Supply 10...19V AC ; 10...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage





Accessories



Order Code Description
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC
AC34121 Patch Cable Fibers ST/ST 2x2 Meters
AC34122 Patch Cable Fibers ST/ST 2x10 Meters
AC34107 Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m
AC34114 Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m
AC34132-OS2-2 Patch Cable Fiber / Single-Mode Optic Fiber with LC/LC connectors - 2 Meters
AC34132-OS2-10 Patch Cable Fiber / Single-Mode Optic Fiber with LC/LC connectors - 10 Meters
AC34132-OS2-20 Patch Cable Fiber / Single-Mode Optic Fiber with LC/LC connectors - 20 Meters
AC34133-OS2-2 Patch Cable Fiber / Multi-Mode Optic Fiber with LC/LC connectors - 2 Meters
AC34133-OS2-10 Patch Cable Fiber / Multi-Mode Optic Fiber with LC/LC connectors - 10 Meters
AC34133-OS2-20 Patch Cable Fiber / Multi-Mode Optic Fiber with LC/LC connectors - 20 Meters
AC67700-10-S Accessory Transmitters, receivers, transceivers for fiber optics with SFP for 10 km
MONOMODAL
AC67700-20-S
Accessory Transmitters, receivers, transceivers for fiber optics with SFP for 20 km
MONOMODAL
AC67700-40-S
Accessory Transmitters, receivers, transceivers for fiber optics with SFP for 40 km
MONOMODAL



Benefits

  • Resistant to harsh environmental specifications
  • Designed for serius use
  • Very easy to configure
  • Low cost
  • Rail din mountable
  • Isolation between Power Supply, Optic Fibres and Serial line
  • Industrial temperature range: -40°C / 80°C (-40°F / 176°F)
