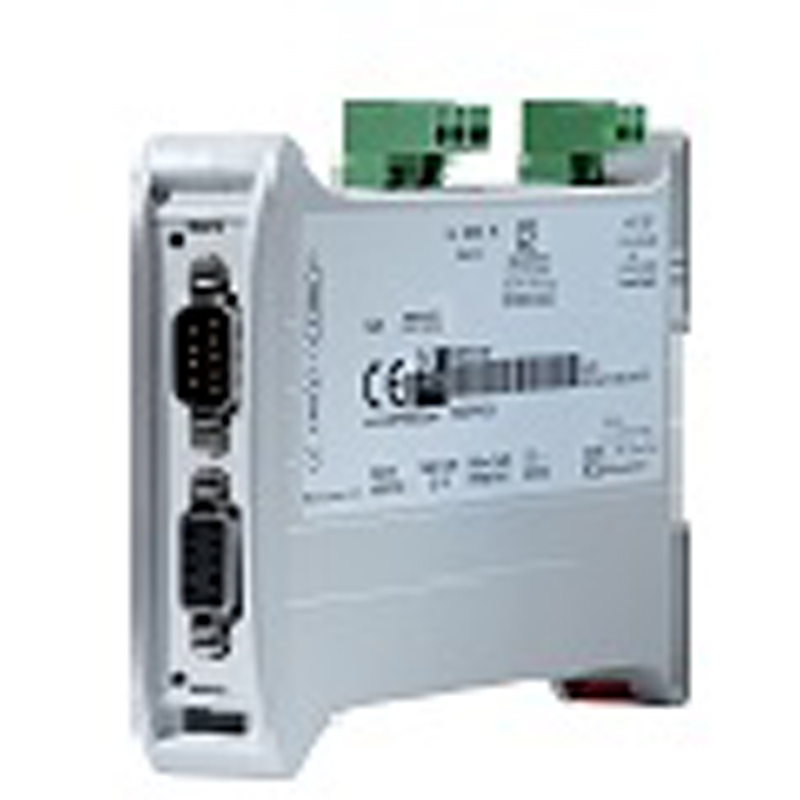

SNMP to Modbus TCP

Part No.: MPADFW-SNMP-to-Modbus-TCP
This series of products allows to integrate a Modbus TCP network with a SNMP net.

產品介紹

Modbus TCP / SNMP - Converter

This series of products allows to integrate a Modbus TCP network with a SNMP net.

The HD67166 is a Modbus TCP Master / SNMP Agent Converter and it allows you to connect some Modbus TCP Slaves devices with a SNMP Manager net (for example a PC, Supervisory System...).

The HD67167 is a Modbus TCP Slave / SNMP Agent Converter and it allows you to connect a Modbus TCP Master net (for example a PLC, SCADA System...) with a SNMP Manager net (for example a PC, Supervisory System...).


The HD67176 is a Modbus TCP Slave / SNMP Manager Converter and it allows you to connect a Modbus TCP Master net (for example a PLC, SCADA System...) with some SNMP Slaves devices.



Series Modbus TCP / SNMP Agent



HD67166-A1

Modbus TCP Master / SNMP Agent - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 2xEthernet
Modbus TCP Protocol Modbus TCP Master
SNMP Protocol SNMP Agent
Modbus TCP Connector RJ45
SNMP Connector RJ45
Data Rates Modbus TCP 10/100 MHz Autosensing
Data Rates SNMP 10/100 MHz Autosensing
Power Supply 8..24V AC; 12..35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail mountage
Software SW67166



HD67167-A1

Modbus TCP Slave / SNMP Agent - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 2xEthernet
Modbus TCP Protocol Modbus TCP Slave
SNMP Protocol SNMP Agent
Modbus TCP Connector RJ45
SNMP Connector RJ45
Data Rates Modbus TCP 10/100 MHz Autosensing
Data Rates SNMP 10/100 MHz Autosensing
Power Supply 8..24V AC; 12..35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail mountage
Software SW67167



Series Modbus TCP / SNMP Manager



HD67176-A1

Modbus TCP Slave / SNMP Manager - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 2xEthernet
Modbus TCP Protocol Modbus TCP Slave
SNMP Protocol SNMP Manager
Modbus TCP Connector RJ45
SNMP Connector RJ45
Data Rates Modbus TCP 10/100 MHz Autosensing
Data Rates SNMP 10/100 MHz Autosensing
Power Supply 8..24V AC; 12..35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail mountage
Software SW67176

Accessories


Order Code Description
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC



Benefits

  • Software for easy configurator
  • Designed for serius use
  • Very easy to configure
  • Low cost
  • Rail din mountable
  • Wide supply input range
  • Galvanic isolation
  • Industrial temperature range:  -30° / 70° (-22°F / 158°F)
