SNMP to Modbus - Slave (Agent)

Part No.: MPADFW-SNMP-to-Modbus-Slave-Agent
This series of products allows to integrate a Modbus network with a SNMP net.

產品介紹

Modbus / SNMP - Converter

This series of products allows to integrate a Modbus network with a SNMP net.

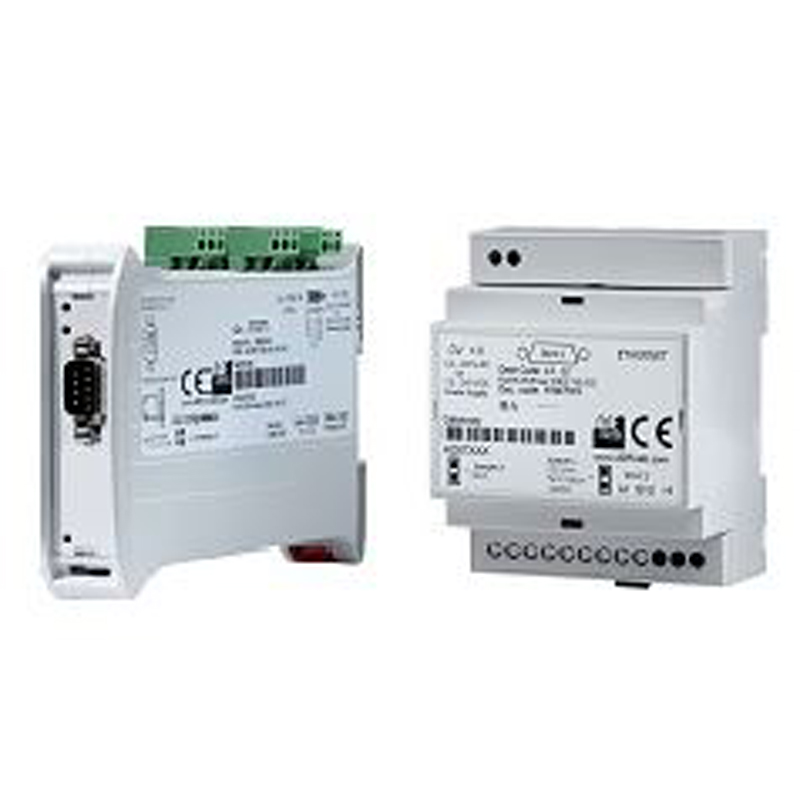

The HD67165 is a Modbus Slave / SNMP Agent Converter and it allows you to connect a Modbus Master net (for example a PLC, SCADA System...) with a SNMP Manager net (for example a PC, Supervisory System...) in order to exchange the informations between the networks.

In all devices there is the possibility to have RS232 and/or RS485 and/or RS422.

The converters are available also in another version, ideal for STRONG applications.

The corresponding models are:

  • HD674-A009 - Modbus Slave / SNMP Agent, STRONG Converter

These converters are contained in a metal housing, so it is STRONG and RESISTANT to the vibrations and shocks. The electrical parts are with triple isolation of 4000 V between Modbus/SNMP - Modbus/Power Supply - SNMP/Power Supply.
Particularly suitable for the installation on cars, trains, boats, industrial sector and in fragile environments.
Two versions, one with Varnished PCB and one with Resined PCB.
Varnished treatment gives dust and humidity protection, Resined treatment gives high water, dust and vibrations protection.
Excellent range of temperature resistance from -40°C to +105°C, features required by AUTOMOTIVE applications.



Series Modbus Slave from/to SNMP Agent


HD67165-232-A1

Modbus Slave / SNMP Agent - Converter ( Ethernet Switch inside for enter/exit connection, Serial Port: RS232 )





Ports 1xEthernet; 1xRS232
Modbus Protocol Modbus Slave
Data Rates Modbus Up to 115200 bps
Data Rates SNMP 10/100 Base-T Autosensing
Modbus Connector D-sub connector, type DE-9 Male
SNMP Connector RJ45
Power Supply Connector 2way 5mm terminal block
Power Supply 8..24V AC; 12..35V DC
Operating Temperature -40/+85ºC (-40ºF/+185ºF)/TD>
Dimensions 120x23x107 (LxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
SOFTWARE SW67165



HD67165-232-B2

Modbus Slave / SNMP Agent - Converter ( Ethernet Switch inside for enter/exit connection, Serial Port: RS232 )





Ports 1xEthernet; 1xRS232
Modbus Protocol Modbus Slave
Data Rates Modbus Up to 115200 bps
Data Rates SNMP 10/100 Base-T Autosensing
Modbus Connector D-sub connector, type DE-9 Male
SNMP Connector RJ45
Power Supply Connector 2way 5mm terminal block
Power Supply 8..24V AC; 12..35V DC
Operating Temperature -40/+85ºC (-40ºF/+185ºF)/TD>
Dimensions 71x60x95 (LxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
SOFTWARE SW67165



HD67165-485-A1

Modbus Slave / SNMP Agent - Converter ( Ethernet Switch inside for enter/exit connection, Serial Port: RS485 )





Ports 1xEthernet; 1xRS485
Modbus Protocol Modbus Slave
Data Rates Modbus Up to 115200 bps
Data Rates SNMP 10/100 Base-T Autosensing
Modbus Connector 3way 5mm terminal block
SNMP Connector RJ45
Power Supply Connector 2way 5mm terminal block
Power Supply 8..24V AC; 12..35V DC
Operating Temperature -40/+85ºC (-40ºF/+185ºF)/TD>
Dimensions 120x23x107 (LxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
SOFTWARE SW67165



HD67165-485-B2

Modbus Slave / SNMP Agent - Converter ( Ethernet Switch inside for enter/exit connection, Serial Port: RS485 )





Ports 1xEthernet; 1xRS485
Modbus Protocol Modbus Slave
Data Rates Modbus Up to 115200 bps
Data Rates SNMP 10/100 Base-T Autosensing
Modbus Connector 3way 5mm terminal block
SNMP Connector RJ45
Power Supply Connector 2way 5mm terminal block
Power Supply 8..24V AC; 12..35V DC
Operating Temperature -40/+85ºC (-40ºF/+185ºF)/TD>
Dimensions 71x60x95 (LxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
SOFTWARE SW67165



HD67165-422-A1

Modbus Slave / SNMP Agent - Converter ( Ethernet Switch inside for enter/exit connection, Serial Port: RS422 )





Ports 1xEthernet; 1xRS422
Modbus Protocol Modbus Slave
Data Rates Modbus Up to 115200 bps
Data Rates SNMP 10/100 Base-T Autosensing
Modbus Connector 4way 5mm terminal block
SNMP Connector RJ45
Power Supply Connector 2way 5mm terminal block
Power Supply 8..24V AC; 12..35V DC
Operating Temperature -40/+85ºC (-40ºF/+185ºF)/TD>
Dimensions 120x23x107(LxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
SOFTWARE SW67165



HD67165-232-485-A1

Modbus Slave / SNMP Agent - Converter ( Ethernet Switch inside for enter/exit connection, Serial Port: RS232-RS485 )





Ports 1xEthernet; 1xRS485; 1xRS232
Modbus Protocol Modbus Slave
Data Rates Modbus Up to 115200 bps
Data Rates SNMP 10/100 Base-T Autosensing
RS232 Connector D-sub connector, type DE-9 Male
RS485 Connector 3way 5mm terminal block
SNMP Connector RJ45
Power Supply Connector 2way 5mm terminal block
Power Supply 8..24V AC; 12..35V DC
Operating Temperature -40/+85ºC (-40ºF/+185ºF)/TD>
Dimensions 120x23x107(LxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
SOFTWARE SW67165



HD67165-232-485-B2

Modbus Slave / SNMP Agent - Converter ( Ethernet Switch inside for enter/exit connection, Serial Port: RS232-RS485 )




Ports 1xEthernet; 1xRS485; 1xRS232
Modbus Protocol Modbus Slave
Data Rates Modbus Up to 115200 bps
Data Rates SNMP 10/100 Base-T Autosensing
RS232 Connector D-sub connector, type DE-9 Male
RS485 Connector 3way 5mm terminal block
SNMP Connector RJ45
Power Supply Connector 2way 5mm terminal block
Power Supply 8..24V AC; 12..35V DC
Operating Temperature -40/+85ºC (-40ºF/+185ºF)/TD>
Dimensions 71x60x95(LxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
SOFTWARE SW67165



HD67165-232-422-A1

Modbus Slave / SNMP - Converter ( Ethernet Switch inside for enter/exit connection, Serial Port: RS234-RS422 )





Ports 1xEthernet;1xRS232;1xRS422
Modbus Protocol Modbus Slave
Data Rates Modbus Up to 115200 bps
Data Rates SNMP 10/100 Base-T Autosensing
RS232 Connector D-sub connector, type DE-9 Male
RS422 Connector 4way 5mm terminal block
SNMP Connector RJ45
Power Supply Connector 2way 5mm terminal block
Power Supply 8..24V AC; 12..35V DC
Operating Temperature -40/+85ºC (-40ºF/+185ºF)/TD>
Dimensions 120x23x107(LxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
SOFTWARE SW67165



Modbus Slave / SNMP Agent Converter

Products supplied with metal housing (Housing type: E), are STRONG and RESISTANT to mechanical stress (such as vibration and shock), electrical parts with a triple insulation 4 kV between RS232 / Ethernet – RS232 / Power Supply – Ethernet / Power Supply.
Particularly suitable for installation in cars, trucks, trains, boats, in the industrial sector and in fragile environments.
Two versions, one with a coating of the PCB (suffix code V) that ensures total protection to the dust (IP65) and another encapsulation-based resin (suffix code R) which gives to device the high performance safety and insulation for wet environments and to resist to noise.
This product can be mounted on any type of surface (horizontal, vertical and oblique) with four fixing lugs, also you can choose the type of connector, Mini-Fit or Superseal 1.5.
Excellent range of temperature resistance from -40° C to +105° C, features required by AUTOMOTIVE.



HD674-A009-2-E4V

Modbus Slave / SNMP Agent Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )





Ports 1xRS232, 1xEthernet
Data Rates RS232 Up to 115200 bps
Data Rates SNMP 10/100 Base-T Autosensing
RS232 Connector 3way Mini-Fit®
SNMP Connector RJ45
Power Supply Connector 2way Mini-Fit®
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW674-A009



HD674-A009-2-E4R

Modbus Slave / SNMP Agent Converter (Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )





Ports 1xRS232, 1xEthernet
Data Rates RS232 Up to 115200 bps
Data Rates SNMP 10/100 Base-T Autosensing
RS232 Connector 3way Mini-Fit®
SNMP Connector RJ45
Power Supply Connector 2way Mini-Fit®
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW674-A009



HD674-A009-2-E7V

Modbus Slave / SNMP Agent Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )





Ports 1xRS232, 1xEthernet
Data Rates RS232 Up to 115200 bps
Data Rates SNMP 10/100 Base-T Autosensing
RS232 Connector 3way SuperSeal 1.5
SNMP Connector 4way SuperSeal 1.5
Power Supply Connector 2way SuperSeal 1.5
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW674-A009



HD674-A009-2-E7R

Modbus Slave / SNMP Agent Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )





Ports 1xRS232, 1xEthernet
Data Rates RS232 Up to 115200 bps
Data Rates SNMP 10/100 Base-T Autosensing
RS232 Connector 3way SuperSeal 1.5
SNMP Connector 4way SuperSeal 1.5
Power Supply Connector 2way SuperSeal 1.5
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW674-A009



Modbus Slave / SNMP Agent Converter



HD674-A009-4-E4V

Modbus Slave / SNMP Agent Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )





Ports 1xRS485, 1xEthernet
Data Rates RS485 Up to 115200 bps
Data Rates SNMP 10/100 Base-T Autosensing
RS485 Connector 3way Mini-Fit®
SNMP Connector RJ45
Power Supply Connector 2way Mini-Fit®
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW674-A009



HD674-A009-4-E4R

Modbus Slave / SNMP Agent Converter (Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )





Ports 1xRS485, 1xEthernet
Data Rates RS485 Up to 115200 bps
Data Rates SNMP 10/100 Base-T Autosensing
RS485 Connector 3way Mini-Fit®
SNMP Connector RJ45
Power Supply Connector 2way Mini-Fit®
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW674-A009



HD674-A009-4-E7V

Modbus Slave / SNMP Agent Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )





Ports 1xRS485, 1xEthernet
Data Rates RS485 Up to 115200 bps
Data Rates SNMP 10/100 Base-T Autosensing
RS485 Connector 3way SuperSeal 1.5
SNMP Connector 4way SuperSeal 1.5
Power Supply Connector 2way SuperSeal 1.5
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW674-A009



HD674-A009-4-E7R

Modbus Slave / SNMP Agent Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )





Ports 1xRS485, 1xEthernet
Data Rates RS485 Up to 115200 bps
Data Rates SNMP 10/100 Base-T Autosensing
RS485 Connector 3way SuperSeal 1.5
SNMP Connector 4way SuperSeal 1.5
Power Supply Connector 2way SuperSeal 1.5
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW674-A009

Accessories


Order Code Description
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC
AC67402 Cable Super Seal 1.5 MALE 2-pole - 1.0 Meters
AC67402-3 Cable Super Seal 1.5 MALE 2-pole - 3.0 Meters
AC67403 Cable Super Seal 1.5 MALE 3-pole - 1.0 Meters
AC67403-3 Cable Super Seal 1.5 MALE 3-pole - 3.0 Meters
AC67404 Cable Super Seal 1.5 MALE 4-pole - 1.0 Meters
AC67404-3 Cable Super Seal 1.5 MALE 4-pole - 3.0 Meters
AC67410 Accessory Automotive Devices - Support for rail DIN
AC34107 Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m
AC34114 Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m

Benefits

  • Software for easy configurator
  • Designed for serius use
  • Very easy to configure
  • Low cost
  • Rail din mountable
  • Wide supply input range
  • Galvanic isolation
  • Industrial temperature range:  -30°C / 70°C (-22°F / 158°F)
