SNMP to EthernetIP

Part No.: MPADFW-SNMP-to-EthernetIP
This series of products allows to integrate a SNMP network with an EtherNet/IP net.

產品介紹

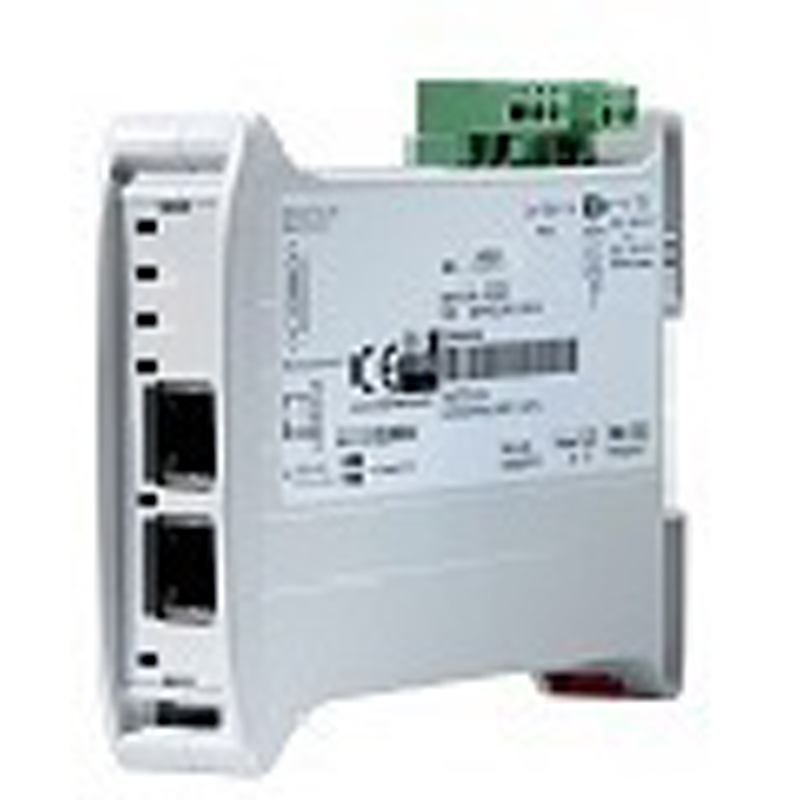

SNMP / EtherNet/IP - Converter

This series of products allows to integrate a SNMP network with an EtherNet/IP net.

The HD67158 is a SNMP Agent / EtherNet/IP Master Converter and it allows you to connect a SNMP Manager net (for example a PC, Supervisory System...) with some EtherNet/IP slaves (for example Encoder, I/O..etc).

The HD67159 is a SNMP Agent / EtherNet/IP Converter and it allows you to connect a SNMP Manager net (for example a PC, Supervisory System...) with an EtherNet/IP net (for example an Allen-Bradley PLC ).

The HD67174 is a SNMP Manager / EtherNet/IP Converter and it allows you to connect some SNMP Agent devices (for example a Inverters, UPS...) with an EtherNet/IP net (for example an Allen-Bradley PLC ).

In all devices are installed 2 LAN ports with RJ45 connectors that allow you to not use an external switch.



HD67158-A1

EtherNet/IP / SNMP Agent - Converter ( Housing type: A, Terminal Blocks Connectors )




Ports 2xEthernet
Ethernet Protocol (1) EtherNet/IP Master
Ethernet Protocol (2) SNMP Agent
EtherNet/IP Connector RJ45
SNMP Connector RJ45
Data Rates EtherNet/IP 10/100 Base-T Autosensing
Data Rates SNMP 10/100 Base-T Autosensing
Power Supply 8..24V AC; 12..35V DC
Power Supply Connector 2way 5mm terminal block
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 120x23x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing 35mm DIN Rail montage
Software SW67159


HD67159-A1

EtherNet/IP / SNMP Agent - Converter ( Housing type: A, Terminal Blocks Connectors )




Ports 2xEthernet
EtherNet/IP Connector RJ45
SNMP Connector RJ45
Data Rates EtherNet/IP 10/100 Base-T Autosensing
Data Rates SNMP 10/100 Base-T Autosensing
Power Supply 8..24V AC; 12..35V DC
Power Supply Connector 2way 5mm terminal block
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 120x23x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing 35mm DIN Rail montage
Software SW67159

HD67174-A1

EtherNet/IP / SNMP Manager - Converter ( Housing type: A, Terminal Blocks Connectors )




Ports 2xEthernet
Ethernet/IP Protocol EtherNet/IP
SNMP Protocol SNMP Manager
EtherNet/IP Connector RJ45
SNMP Connector RJ45
Data Rates EtherNet/IP 10/100 Base-T Autosensing
Data Rates SNMP 10/100 Base-T Autosensing
Power Supply 8..24V AC; 12..35V DC
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 120x23x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing 35mm DIN Rail montage
Software SW67159





Accessories


Order Code Description
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC
