PROFINET to PROFIBUS
Part No.: MPADFW-PROFINET-to-PROFIBUS
This series of products allows to integrate a PROFINET network with a PROFIBUS net.
產品介紹

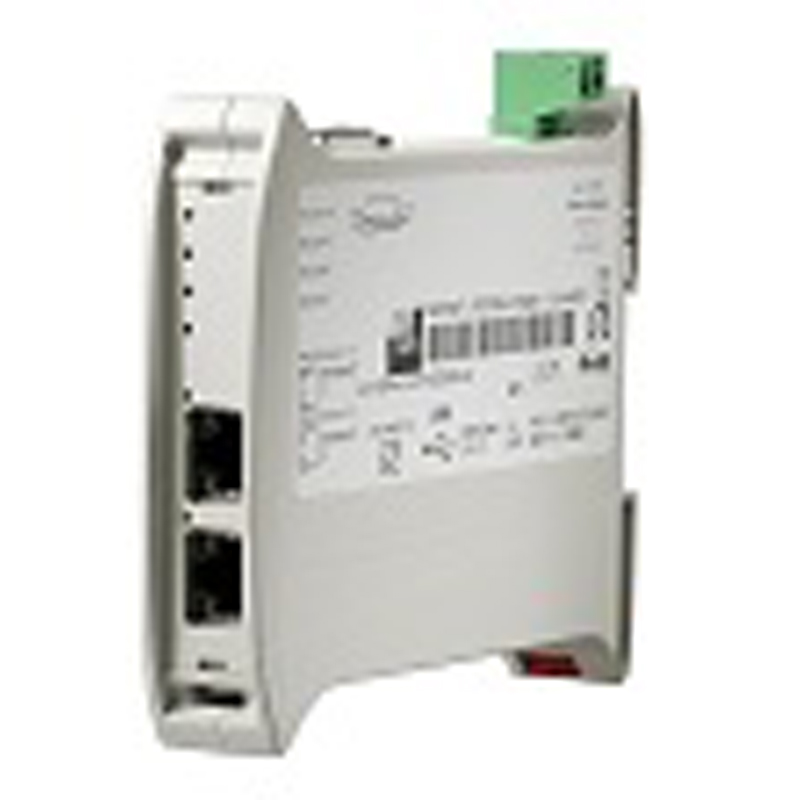

PROFINET / PROFIBUS - Converter
This series of products allows to integrate a PROFINET network with a PROFIBUS net.
The HD67604 is a PROFINET / PROFIBUS Master Converter and it allows you to connect a PROFINET net (for example a SIEMENS PLC...) with some PROFIBUS devices.
The HD67605 is a PROFINET / PROFIBUS Slave Converter and it allows you to connect a PROFINET net (for example a SIEMENS PLC...) with a PROFIBUS Master net in order to exchange the informations between the networks.
In all devices are installed 2 LAN ports with RJ45 connectors that allow you to not use an external switch and extend the PROFINET line.
HD67604-A1
PROFINET / PROFIBUS Master - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )
| Ports | 1xPROFIBUS; 2xEthernet | |
|---|---|---|
| PROFIBUS Protocol | PROFIBUS Master | |
| Ethernet Protocol | PROFINET | |
| Data Rates PROFIBUS | Up to 6Mbps | |
| Data Rates PROFINET | 10/100 Base-T Autosensing | |
| PROFIBUS Connector | D-SUB9 Female | |
| PROFINET Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67604 | |
HD67605-A1
PROFINET / PROFIBUS Slave - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )
| Ports | 1xPROFIBUS; 2xEthernet | |
|---|---|---|
| PROFIBUS Protocol | PROFIBUS Slave | |
| Ethernet Protocol | PROFINET | |
| Data Rates PROFIBUS | Up to 12Mbps | |
| Data Rates PROFINET | 10/100 Base-T Autosensing | |
| PROFIBUS Connector | D-SUB9 Female | |
| PROFINET Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67605 | |
HD67B72-A1
PROFINET Master / PROFIBUS Slave - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )
| Ports | 1xPROFIBUS; 2xEthernet | |
|---|---|---|
| PROFIBUS Protocol | PROFIBUS Slave | |
| Ethernet Protocol | PROFINET Master | |
| Data Rates PROFIBUS | Up to 12Mbps | |
| Data Rates PROFINET | 10/100 Base-T Autosensing | |
| PROFIBUS Connector | D-SUB9 Female | |
| PROFINET Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67B72 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
