PROFINET to KNX
Part No.: MPADFW-PROFINET-to-KNX
This series of products allows to integrate a PROFINET network with a KNX net.
產品介紹
PROFINET / KNX - Converter
This series of products allows to integrate a PROFINET network with a KNX net.

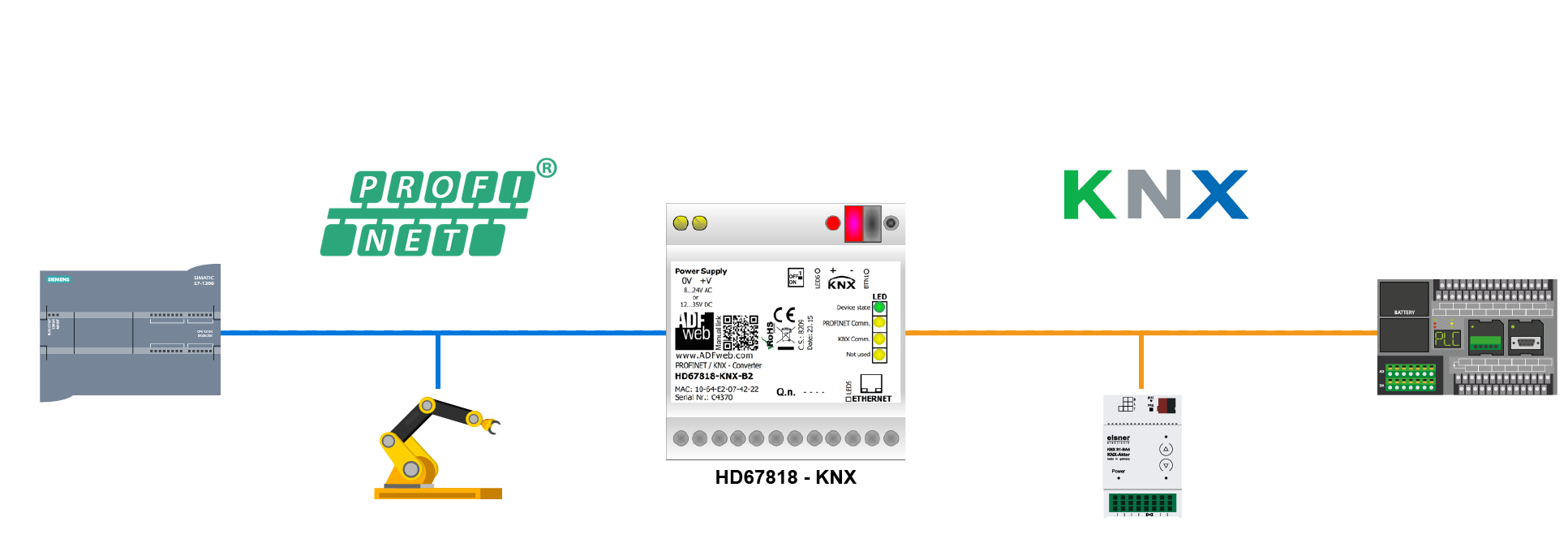

The HD67818 is a PROFINET / KNX Converter and it allows you to connect a PROFINET net (for example a SIEMENS PLC..) with a KNX net (for example light switches, actuators..) in order to exchange the informations between the networks.
The HD67B79 is a PROFINET Master / KNX Converter and it allows you to connect a PROFINET net with a KNX net (for example light switches, actuators..) in order to exchange the informations between the networks.
This converters are very easy to configure and allows you to interface a PROFINET system with the KNX world.
On KNX side you can connect all the common KNX devices such as temperature sensors, shutters, light switches, actuators, alarms etc.

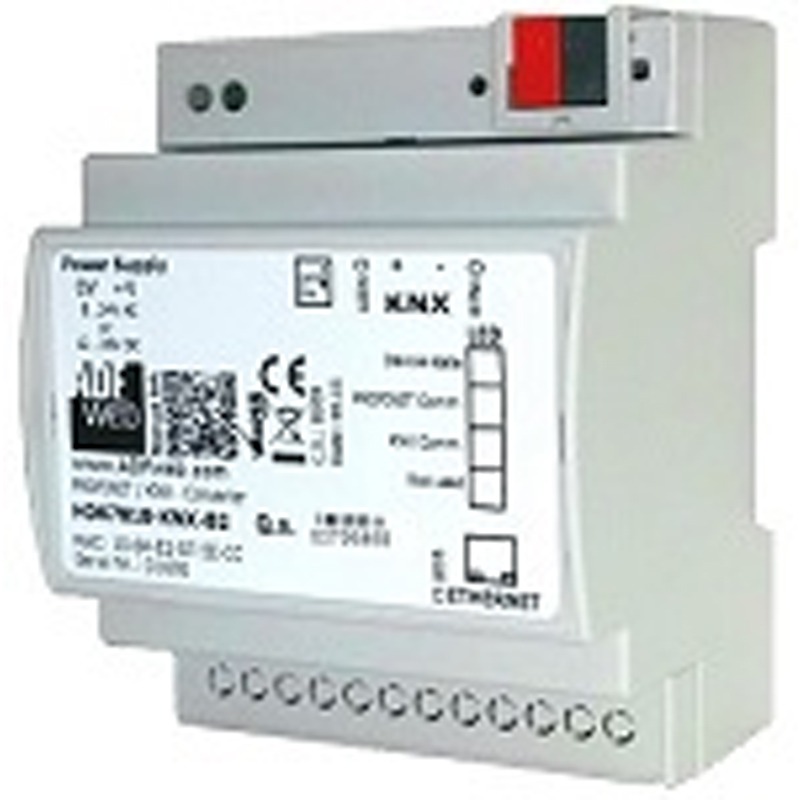

HD67818-KNX-B2
PROFINET / KNX - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX; 1xEthernet | |
|---|---|---|
| KNX Protocol | KNX TP | |
| PROFINET Protocol | PROFINET slave | |
| Data Rates KNX | 9600 bit/s | |
| Data Rates Ethernet | 10/100 Base-T Autosensing | |
| KNX Connector | KNX Bus connector | |
| Ethernet Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67818 | |
HD67B79-KNX-B2
PROFINET Master / KNX - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX; 1xEthernet | |
|---|---|---|
| KNX Protocol | KNX TP | |
| PROFINET Protocol | PROFINET Master | |
| Data Rates KNX | 9600 bit/s | |
| Data Rates Ethernet | 10/100 Base-T Autosensing | |
| KNX Connector | KNX Bus connector | |
| Ethernet Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67B79 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34-AB1TP | KNX Power Supply - KNX out 640mA - in 240VAC |
| AC34-AG1TP | KNX Power Supply - KNX out 640mA + AUX out 30VDC - in 240VAC |
