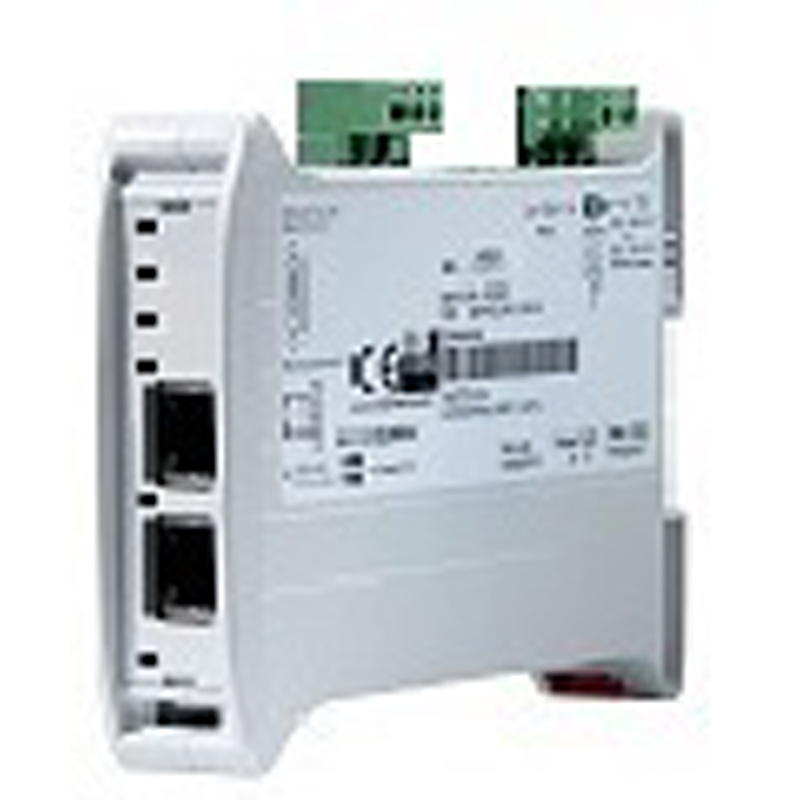

PROFINET to DeviceNet
Part No.: MPADFW-PROFINET-to-DeviceNet
This series of products allows to integrate a PROFINET network with a DeviceNet net.
產品介紹
PROFINET / DeviceNet - Converter
This series of products allows to integrate a PROFINET network with a DeviceNet net.

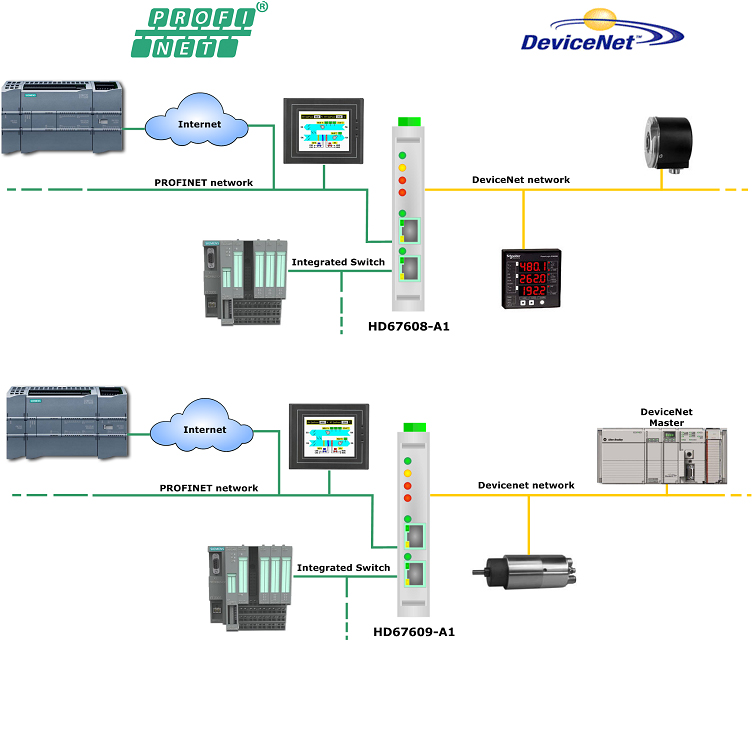

The HD67608 is a PROFINET / DeviceNet Master Converter and it allows you to connect a PROFINET net (for example a SIEMENS PLC...) with some DeviceNet Slaves in order to exchange the informations between the networks.
The HD67609 is a PROFINET / DeviceNet Slave Converter and it allows you to connect a PROFINET network (for example a SIEMENS PLC...) with a DeviceNet Master (for example an Allen-Bradley PLC...) in order to exchange the informations between the networks.
The HD67B75 is a PROFINET Master / DeviceNet Slave Converter and it allows you to connect a PROFINET network with a DeviceNet Master (for example an Allen-Bradley PLC...) in order to exchange the informations between the networks.
In all devices are installed 2 LAN ports with RJ45 connectors that allow you to not use the switch and extend the PROFINET line.
HD67608-A1
PROFINET / DeviceNet Master - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )
| Ports | 1xCAN; 2xPROFINET | |
|---|---|---|
| CAN Protocol | DeviceNet Master | |
| Ethernet Protocol | PROFINET | |
| Data Rates CAN | Up to 500Kbps | |
| Data Rates PROFINET | 100 Base-T Autosensing | |
| CAN Connector | 3way 5mm terminal block | |
| PROFINET Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67608 | |
HD67609-A1
PROFINET / DeviceNet Slave - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )
| Ports | 1xCAN; 2xPROFINET | |
|---|---|---|
| CAN Protocol | DeviceNet Slave | |
| Ethernet Protocol | PROFINET | |
| Data Rates CAN | Up to 500Kbps | |
| Data Rates PROFINET | 100 Base-T Autosensing | |
| CAN Connector | 3way 5mm terminal block | |
| PROFINET Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67609 | |
HD67B75-A1
PROFINET Master/ DeviceNet Slave - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )
| Ports | 1xCAN; 2xPROFINET | |
|---|---|---|
| CAN Protocol | DeviceNet Slave | |
| Ethernet Protocol | PROFINET Master | |
| Data Rates CAN | Up to 500Kbps | |
| Data Rates PROFINET | 100 Base-T Autosensing | |
| CAN Connector | 3way 5mm terminal block | |
| PROFINET Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67B75 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
