PROFINET / CAN - Converter

PROFINET / CANopen - Converter

This series of products allows to integrate a PROFINET network with a CAN / CANopen net.

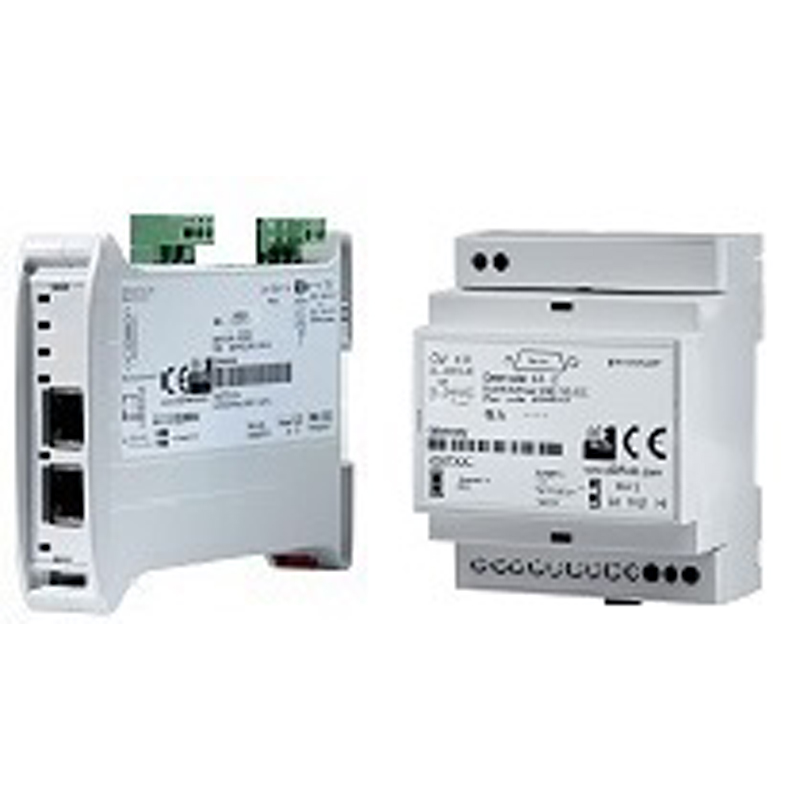

The HD67606 is a PROFINET / CAN Converter and it allows you to connect some CAN devices with a PROFINET net (for example a SIEMENS PLC...) in order to exchange the informations between the networks.

The HD67607 is a PROFINET / CANopen Converter and it allows you to connect some CANopen devices with a PROFINET net (for example a SIEMENS PLC...) in order to exchange the informations between the networks.

The HD67B73 is a PROFINET Master / CAN Converter and it allows you to connect some CAN devices with a PROFINET net in order to exchange the informations between the networks.

The HD67B74 is a PROFINET Master / CANopen Converter and it allows you to connect some CANopen devices with a PROFINET net in order to exchange the informations between the networks.

In all devices are installed 2 LAN ports with RJ45 connectors that allow you to not use the switch and extend the PROFINET line.

See diagram ...

The converters are available also in another version, ideal for STRONG applications.

The corresponding models are:

• HD67418 - PROFINET / CAN, STRONG Converter
• HD67428 - PROFINET / CANopen, STRONG Converter

These converters are contained in a metal housing, so it is STRONG and RESISTANT to the vibrations and shocks. The electrical parts are with triple isolation of 4000 V between PROFINET/CAN - PROFINET/Power Supply - CAN/Power Supply.
Particularly suitable for the installation on cars, trains, boats, industrial sector and in fragile environments.
Two versions, one with Varnished PCB and one with Resined PCB.
Varnished treatment gives dust and humidity protection, Resined treatment gives high water, dust and vibrations protection.
Excellent range of temperature resistance from -40°C to +105°C, features required by AUTOMOTIVE applications.

Series CAN from/to PROFINET

HD67606-A1

PROFINET / CAN - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )

PROFINET / CAN Converter

Products supplied with metal housing (Housing type: E), are STRONG and RESISTANT to mechanical stress (such as vibration and shock), electrical parts with a triple insulation 4 kVbetween CAN/PROFINET - CAN/Power Supply – PROFINET/Power Supply.

Particularly suitable for installation in cars, trucks, trains, boats, in the industrial sector and in fragile environments.Two versions, one with a coating of the PCB (suffix code V) that ensures total protection to the dust (IP65) and another encapsulation-based resin (suffix code R) which gives to device the high performance safety and insulation for wet environments (IP67) and to resist to noise.This product can be mounted on any type of surface (horizontal, vertical and oblique) with four fixing lugs, also you can choose the type of connector, Mini-Fit or Superseal 1.5.Excellent range of temperature resistance from -40 ° C to +105 ° C, features required by AUTOMOTIVE.



HD67418-E4V

PROFINET / CAN - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )



HD67418-E4R

PROFINET / CAN - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )

HD67418-E7V

PROFINET / CAN - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )

HD67418-E7R

PROFINET / CAN - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )

HD67B73-A1

PROFINET Master / CAN - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )

Series CANopen from/to PROFINET

HD67607-A1

PROFINET / CANopen - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )

PROFINET / CANopen Converter

Products supplied with metal housing (Housing type: E), are STRONG and RESISTANT to mechanical stress (such as vibration and shock), electrical parts with a triple insulation 4 kVbetween CANopen/PROFINET - CANopen/Power Supply – PROFINET/Power Supply.

Particularly suitable for installation in cars, trucks, trains, boats, in the industrial sector and in fragile environments.Two versions, one with a coating of the PCB (suffix code V) that ensures total protection to the dust (IP65) and another encapsulation-based resin (suffix code R) which gives to device the high performance safety and insulation for wet environments (IP67) and to resist to noise.This product can be mounted on any type of surface (horizontal, vertical and oblique) with four fixing lugs, also you can choose the type of connector, Mini-Fit or Superseal 1.5.Excellent range of temperature resistance from -40 ° C to +105 ° C, features required by AUTOMOTIVE.

HD67428-E4V

PROFINET / CANopen- Converter (Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )

HD67428-E4R

PROFINET / CANopen- Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )

HD67428-E7V

PROFINET / CANopen - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )

HD67428-E7R

PROFINET / CANopen - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )

HD67B74-A1

PROFINET Master / CANopen - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )
