PROFINET to BACnet
Part No.: MPADFW-PROFINET-to-BACnet
This series of products allows to integrate a BACnet network with a PROFINET net.
產品介紹

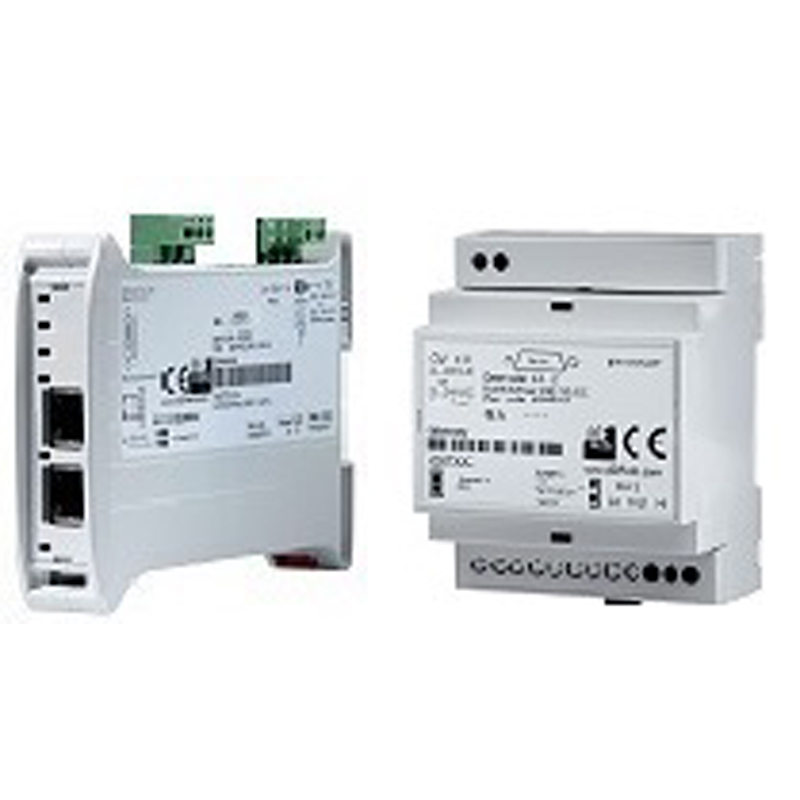

BACnet / PROFINET - Converter
This series of products allows to integrate a BACnet network with a PROFINET net.

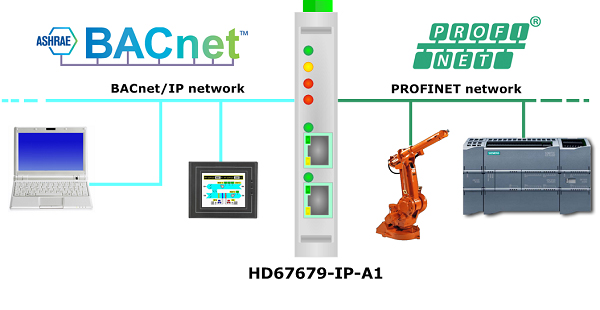

The HD67679 is a BACnet Slave / PROFINET Converter and it allows you to connect a BACnet Master (for example a PC, a Supervisory System...) with a PROFINET NET in order to exchange the informations between the networks.
The HD67B81 is a BACnet Slave / PROFINET Master Converter and it allows you to connect a BACnet Master (for example a PC, a Supervisory System...) with a PROFINET NET in order to exchange the informations between the networks.
The HD67719 is a BACnet Master / PROFINET Converter and it allows you to connect some BACnet Slaves with a PROFINET Master (for example a SIEMENS PLC…) in order to exchange the informations between the networks.
HD67679-IP, HD67B81-IP, HD7719-IP supports both BACnet/IP and BACnet/Ethernet.
The connection to BACnet is done over Ethernet.
HD67679-MSTP, HD67B81-MSTP, HD67719-MSTP supports BACnet MSTP.
The connection to BACnet is done over RS485.
BACnet Slave / PROFINET Slave series
HD67679-IP-A1
BACNet IP Slave / PROFINET Slave - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 2xEthernet | |
|---|---|---|
| PROFINET Protocol | PROFINET IO-Device RT Class1 | |
| BACnet Protocol | BACNet IP Slave | |
| Data Rates PROFINET | 100 Base-T autosensing | |
| Data Rates BACnet | 10/100 Base-T Autosensing | |
| PROFINET Connector | RJ45 | |
| BACnet Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67679 | |
HD67679-MSTP-A1
BACnet MSTP Slave / PROFINET Slave - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 1xRS485; 1xEthernet | |
|---|---|---|
| PROFINET Protocol | PROFINET IO-Device RT Class1 | |
| BACnet Protocol | BACnet MS/TP Slave | |
| Data Rates PROFINET | 100 Base-T autosensing | |
| Data Rates BACnet | Up to 115200 bps | |
| PROFINET Connector | RJ45 | |
| BACnet Connector | 3way 5mm removable screw terminal | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67679 | |
HD67679-MSTP-B2
BACnet MSTP Slave / PROFINET Slave - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xRS485; 1xEthernet | |
|---|---|---|
| PROFINET Protocol | PROFINET IO-Device RT Class1 | |
| BACnet Protocol | BACnet MS/TP Slave | |
| Data Rates PROFINET | 100 Base-T autosensing | |
| Data Rates BACnet | Up to 115200 bps | |
| PROFINET Connector | RJ45 | |
| BACnet Connector | 3way 5mm removable screw terminal | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67679 | |
BACnet Slave / PROFINET Master series
HD67B81-IP-A1
BACNet IP Slave / PROFINET Master - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 2xEthernet | |
|---|---|---|
| PROFINET Protocol | PROFINET Master | |
| BACnet Protocol | BACNet IP Slave | |
| Data Rates PROFINET | 100 Base-T autosensing | |
| Data Rates BACnet | 10/100 Base-T Autosensing | |
| PROFINET Connector | RJ45 | |
| BACnet Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67B81 | |
HD67B81-MSTP-A1
BACnet MSTP Slave / PROFINET Master - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 1xRS485; 1xEthernet | |
|---|---|---|
| PROFINET Protocol | PROFINET Master | |
| BACnet Protocol | BACnet MSTP Slave | |
| Data Rates PROFINET | 100 Base-T autosensing | |
| Data Rates BACnet | Up to 115200 bps | |
| PROFINET Connector | RJ45 | |
| BACnet Connector | 3way 5mm removable screw terminal | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67B81 | |
HD67B81-MSTP-B2
BACnet MSTP Slave / PROFINET Master - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xRS485; 1xEthernet | |
|---|---|---|
| PROFINET Protocol | PROFINET Master | |
| BACnet Protocol | BACnet MSTP Slave | |
| Data Rates PROFINET | 100 Base-T autosensing | |
| Data Rates BACnet | Up to 115200 bps | |
| PROFINET Connector | RJ45 | |
| BACnet Connector | 3way 5mm removable screw terminal | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67B81 | |
BACnet Master / PROFINET Slave series
HD67719-IP-A1
BACNet IP Master/ PROFINET Slave - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 2xEthernet | |
|---|---|---|
| PROFINET Protocol | PROFINET Slave | |
| BACnet Protocol | BACNet IP Master | |
| Data Rates PROFINET | 100 Base-T autosensing | |
| Data Rates BACnet | 10/100 Base-T Autosensing | |
| PROFINET Connector | RJ45 | |
| BACnet Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67714 | |
HD67719-MSTP-A1
BACnet MSTP Master / PROFINET Slave - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 1xRS485; 1xEthernet | |
|---|---|---|
| PROFINET Protocol | PROFINET IO-Device RT Class1 | |
| BACnet Protocol | BACnet MS/TP Master | |
| Data Rates PROFINET | 100 Base-T autosensing | |
| Data Rates BACnet | Up to 115200 bps | |
| PROFINET Connector | RJ45 | |
| BACnet Connector | 3way 5mm removable screw terminal | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67719 | |
HD67719-MSTP-B2
BACnet MSTP Master / PROFINET Slave - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xRS485; 1xEthernet | |
|---|---|---|
| PROFINET Protocol | PROFINET IO-Device RT Class1 | |
| BACnet Protocol | BACnet MS/TP Master | |
| Data Rates PROFINET | 100 Base-T autosensing | |
| Data Rates BACnet | Up to 115200 bps | |
| PROFINET Connector | RJ45 | |
| BACnet Connector | 3way 5mm removable screw terminal | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67719 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
