PROFIBUS to M-Bus
Part No.: MPADFW-PROFIBUS-to-M-Bus
The HD67053-B2-xxx are M-Bus / PROFIBUS converters.
產品介紹

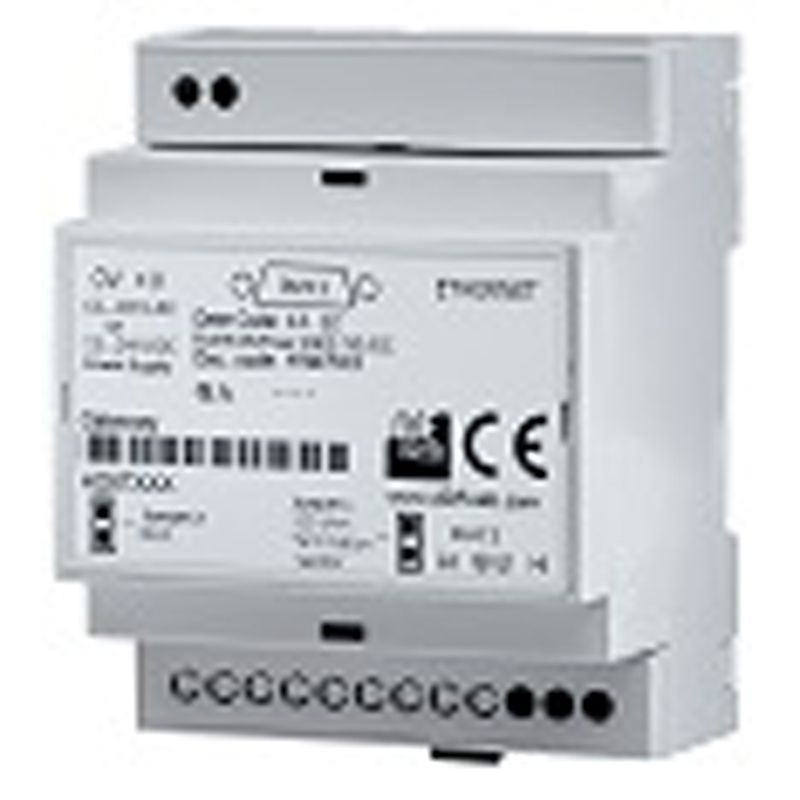

M-Bus / PROFIBUS - Converter
The HD67053-B2-xxx are M-Bus / PROFIBUS converters.
They allow to monitor some M-Bus meters (like Engelmann, Amber-Wireless, Maddalena, Siemens, exc. meters) with a PROFIBUSnet (like an SIEMENES PLC exc).
On M-Bus side, the HD67053-B2 can manage up to 250 meters.
HD67053-B2-40
M-Bus / PROFIBUS - Converter ( Master M-Bus: up to 40 slaves )
| Ports | 1xM-Bus; 1xRS232; 1xPROFIBUS | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| Data Rates PROFIBUS | Auto baudrate | |
| M-Bus Connector | Terminal block | |
| PROFIBUS Connector | DB9 Female | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+70ºC (-40ºF/+158ºF) | |
| Dimensions | 106x58x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67053 | |
HD67053-B2-80
M-Bus / PROFIBUS - Converter ( Master M-Bus: up to 80 slaves )
| Ports | 1xM-Bus; 1xRS232; 1xPROFIBUS | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| Data Rates PROFIBUS | Auto baudrate | |
| M-Bus Connector | Terminal block | |
| PROFIBUS Connector | DB9 Female | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+70ºC (-40ºF/+158ºF) | |
| Dimensions | 106x58x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67053 | |
HD67053-B2-160
M-Bus / PROFIBUS - Converter ( Master M-Bus: up to 160 slaves )
| Ports | 1xM-Bus; 1xRS232; 1xPROFIBUS | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| Data Rates PROFIBUS | Auto baudrate | |
| M-Bus Connector | Terminal block | |
| PROFIBUS Connector | DB9 Female | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+70ºC (-40ºF/+158ºF) | |
| Dimensions | 106x58x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67053 | |
HD67053-B2-250
M-Bus / PROFIBUS - Converter ( Master M-Bus: up to 250 slaves )
| Ports | 1xM-Bus; 1xRS232; 1xPROFIBUS | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| Data Rates PROFIBUS | Auto baudrate | |
| M-Bus Connector | Terminal block | |
| PROFIBUS Connector | DB9 Female | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+70ºC (-40ºF/+158ºF) | |
| Dimensions | 106x58x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67053 | |
Power Supply Accessories
APW040
Power Supply for M-Bus Master device that supports up to 40 slaves
| Input Voltage Range | 110...240V AC | |
|---|---|---|
| Mains Frequency | 50/60Hz | |
| Output Voltage | 24VDC | |
| Power Output | 6W | |
| Other Protections |
Overcurrent Input Protection;
Overtension Input Protection;
Undertension Input Protection;
Overtemperature Protection
|
|
| Mechanical Fixing | 35mm DIN Rail mounting | |
| Dimensions DxWxH | 53x60x95 (DxWxH) | |
| Weight | 200g | |
APW080
Power Supply for M-Bus Master device that supports up to 80 slaves
| Input Voltage Range | 110...240V AC | |
|---|---|---|
| Mains Frequency | 50/60Hz | |
| Output Voltage | 24VDC | |
| Power Output | 9W | |
| Other Protections |
Overcurrent Input Protection;
Overtension Input Protection;
Undertension Input Protection;
Overtemperature Protection
|
|
| Mechanical Fixing | 35mm DIN Rail mounting | |
| Dimensions DxWxH | 53x60x95 (DxWxH) | |
| Weight | 200g | |
APW160
Power Supply for M-Bus Master device that supports up to 160 slaves
| Input Voltage Range | 110...240V AC | |
|---|---|---|
| Mains Frequency | 50/60Hz | |
| Output Voltage | 24VDC | |
| Power Output | 18W | |
| Other Protections |
Overcurrent Input Protection;
Overtension Input Protection;
Undertension Input Protection;
Overtemperature Protection
|
|
| Mechanical Fixing | 35mm DIN Rail mounting | |
| Dimensions DxWxH | 53x60x95 (DxWxH) | |
| Weight | 200g | |
APW250
Power Supply for M-Bus Master device that supports up to 250 slaves
| Input Voltage Range | 110...240V AC | |
|---|---|---|
| Mains Frequency | 50/60Hz | |
| Output Voltage | 24VDC | |
| Power Output | 36W | |
| Other Protections |
Overcurrent Input Protection;
Overtension Input Protection;
Undertension Input Protection;
Overtemperature Protection
|
|
| Mechanical Fixing | 35mm DIN Rail mounting | |
| Dimensions DxWxH | 53x60x95 (DxWxH) | |
| Weight | 200g | |
Repeaters / Isolator
HD67032M-20
M-Bus - Repeater - Isolator
| Ports | 2xM-Bus; 1xRS232 | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| Data Rates RS232 | Up to 115200 bps | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+70ºC (-40ºF/+158ºF) | |
| Dimensions | 106x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67032 | |
HD67032M-40
M-Bus - Repeater - Isolator ( Master M-Bus: up to 40 slaves )
| Ports | 2xM-Bus; 1xRS232 | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| Data Rates RS232 | Up to 115200 bps | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+70ºC (-40ºF/+158ºF) | |
| Dimensions | 106x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67032 | |
HD67032M-80
M-Bus - Repeater - Isolator ( Master M-Bus: up to 80 slaves )
| Ports | 2xM-Bus; 1xRS232 | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| Data Rates RS232 | Up to 115200 bps | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+70ºC (-40ºF/+158ºF) | |
| Dimensions | 106x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67032 | |
HD67032M-160
M-Bus - Repeater - Isolator ( Master M-Bus: up to 160 slaves )
| Ports | 2xM-Bus; 1xRS232 | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| Data Rates RS232 | Up to 115200 bps | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+70ºC (-40ºF/+158ºF) | |
| Dimensions | 106x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67032 | |
HD67032M-250
M-Bus - Repeater - Isolator ( Master M-Bus: up to 250 slaves )
| Ports | 2xM-Bus; 1xRS232 | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| Data Rates RS232 | Up to 115200 bps | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+70ºC (-40ºF/+158ºF) | |
| Dimensions | 106x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67032 | |
Accessories
| Order Code | Description |
|---|---|
| APW040 | Power Supply for M-Bus Master device that supports up to 40 Slaves |
| APW080 | Power Supply for M-Bus Master device that supports up to 80 Slaves |
| APW040 | Power Supply for M-Bus Master device that supports up to 160 Slaves |
| APW040 | Power Supply for M-Bus Master device that supports up to 250 Slaves |
