PROFIBUS to EtherNetIP
Part No.: MPADFW-PROFIBUS-to-EtherNetIP
This series of products allows to integrate an EtherNetIP network with a PROFIBUS net.
產品介紹

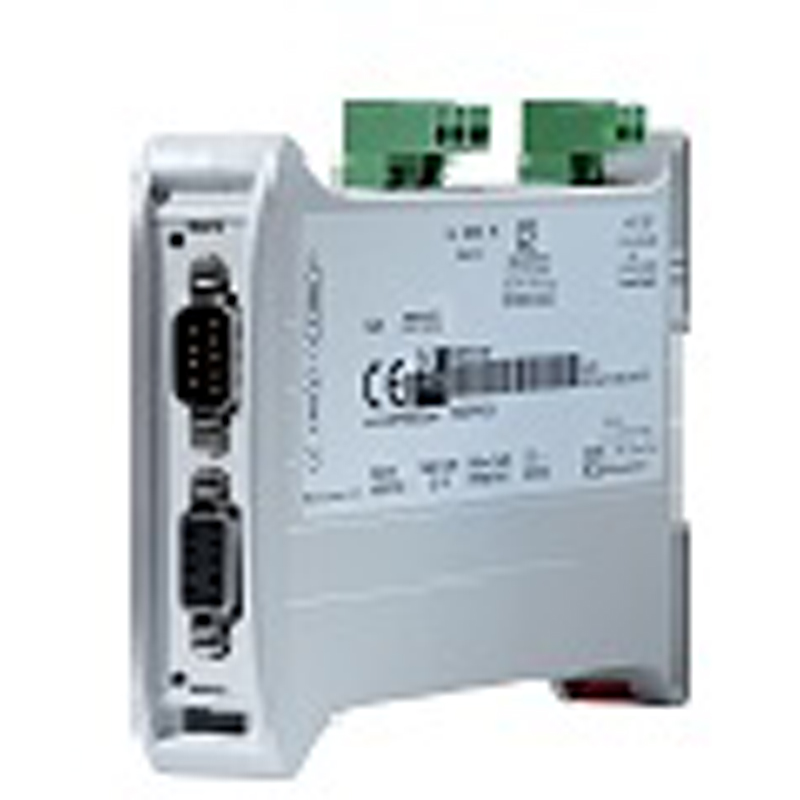

EtherNet/IP / PROFIBUS - Converter
This series of products allows to integrate an EtherNetIP network with a PROFIBUS net.
The HD67593 is an EtherNetIP / PROFIBUS Master Converter and it allows you to connect some PROFIBUS Slaves devices (for example sensors, valves...) with an EtherNetIP net (for example an Allen-Bradley PLC...) in order to exchange the informations between the networks.

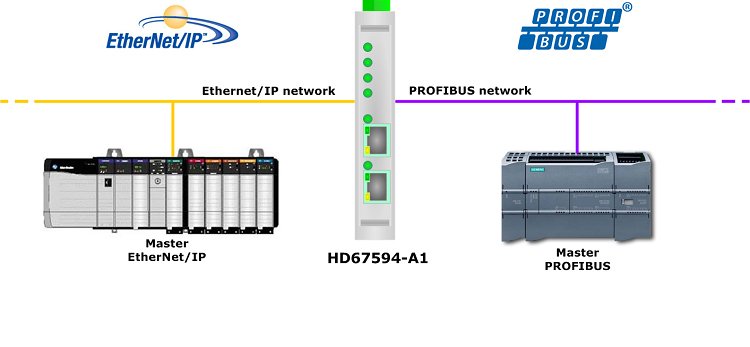

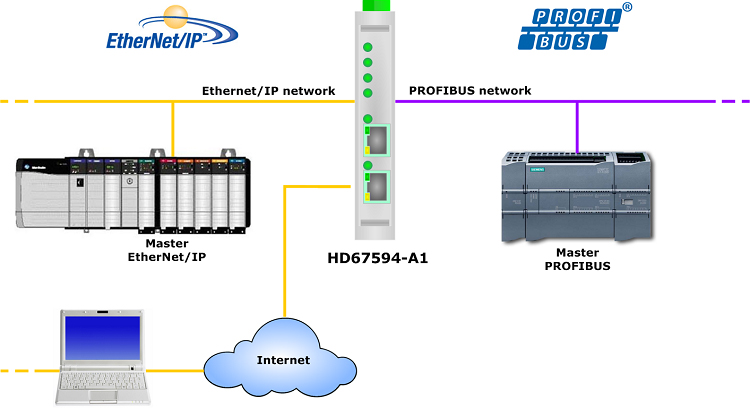

The HD67594 is an EtherNetIP / PROFIBUS Slave Converter and it allows you to connect a PROFIBUS Master net (for example a SIEMENS PLC...) with an EtherNetIP net (for example an Allen-Bradley PLC...) in order to exchange the informations between the networks.
The HD67643 is an EtherNetIP Master / PROFIBUS Slave Converter and it allows you to connect a PROFIBUS Master net (for example a SIEMENS PLC...) with some EtherNetIP devices (for example Encoder, I/O...) in order to exchange the informations between the networks.
In all devices are installed 2 LAN ports with RJ45 connectors that allow you to not use an external switch and extend the EtherNetIP line.
Series PROFIBUS from/to EtherNet/IP
HD67593-A1
EtherNet/IP / PROFIBUS Master - Converter ( EtherNet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )
| Ports | 1xPROFIBUS; 1xEtherNet/IP | |
|---|---|---|
| PROFIBUS Protocol | PROFIBUS Master | |
| Ethernet Protocol | EtherNet/IP Slave | |
| Data Rates PROFIBUS | Up to 6Mbps | |
| Data Rates Ethernet | 10/100 Base-T Autosensing | |
| PROFIBUS Connector | D-SUB9 Female | |
|
Ethernet Connector
|
RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
|
Weight
|
200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67593 | |
HD67594-A1
EtherNet/IP / PROFIBUS Slave - Converter ( EtherNet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )
| Ports | 1xPROFIBUS; 1xEtherNet/IP | |
|---|---|---|
| PROFIBUS Protocol | PROFIBUS Slave | |
| Ethernet Protocol | EtherNet/IP Slave | |
| Data Rates PROFIBUS | Up to 6Mbps | |
| Data Rates Ethernet | 10/100 Base-T Autosensing | |
| PROFIBUS Connector | D-SUB9 Female | |
|
Ethernet Connector
|
RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
|
Weight
|
200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67594 | |
HD67643-A1
EtherNet/IP Master/ PROFIBUS Slave - Converter ( EtherNet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )
| Ports | 1xPROFIBUS; 1xEtherNet/IP | |
|---|---|---|
| PROFIBUS Protocol | PROFIBUS Slave | |
| Ethernet Protocol | EtherNet/IP Master | |
| Data Rates PROFIBUS | Up to 6Mbps | |
| Data Rates Ethernet | 10/100 Base-T Autosensing | |
| PROFIBUS Connector | D-SUB9 Female | |
|
Ethernet Connector
|
RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
|
Weight
|
200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67643 | |
Series PROFIBUS from/to Ethernet
HD67563M
PROFIBUS Slave / Ethernet - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xEthernet, 1xPROFIBUS | |
|---|---|---|
| Data Rates PROFIBUS | Auto Baudrate | |
| Ethernet Protocol | TCP or UDP | |
| Power Supply | 8...19V AC ; 8...35V DC | |
| Operating Temperature | -40°C/+85°C (-40°F/+185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | Sw67563 | |
HD67575-A1
PROFIBUS Master / Ethernet - Converter ( Housing type: A, Terminal Blocks Connectors)
| Ports | 1xEthernet, 1xPROFIBUS | |
|---|---|---|
| Data Rates PROFIBUS | Auto Baudrate | |
| Data Rates Ethernet | 10/100 Base-T Autosening | |
| Ethernet Protocol | TCP or UDP | |
| PROFIBUS Connector | D-SUB9 Female | |
| Ethernet Connector | RJ45 | |
| Power Supply | 8...24V AC ; 12...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail mounting | |
| Software | SW67575 | |
HD67576-A1
PROFIBUS slave / Ethernet - Converter ( Modality of exchange of the PROFIBUS frame: Transparent Tunnelling )
| Ports | 1xEthernet, 1xPROFIBUS | |
|---|---|---|
| Data Rates PROFIBUS | Auto Baudrate | |
| Data Rates Ethernet | 10/100 Base-T Autosening | |
| Ethernet Protocol | TCP or UDP | |
| PROFIBUS Connector | D-SUB9 Female | |
| Ethernet Connector | RJ45 | |
| Power Supply | 8...24V AC ; 12...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail mounting | |
| Software | SW67576 | |
| Specifications | |
|---|---|
| Ports | 1xPROFIBUS; 1xEthernet/IP |
| Data Rates PROFIBUS | Up to 6Mbps |
| Data Rates Ethernet | 10/100 Base-T Autosensing |
| PROFIBUS Connector | D-SUB9 Female |
| Ethernet Connector | RJ45 |
| Power Supply | 8…24V AC; 12…35V DC |
| Operating Temperature | -40° to +85° (-40°F to +185°F) |
| Dimensions | 120x23x107 (DxWxH) |
| Weight | 200g approx |
| Mechanical Fixing | DIN Rail montage |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
Benefits
- Software for easy configurator
- Designed for serius use
- Very easy to configure
- Low cost
- Rail din mountable
- Wide supply input range
- Galvanic isolation
- Industrial temperature range: -30° / 70° (-22°F / 158°F)
