PROFIBUS to DeviceNet

Part No.: MPADFW-PROFIBUS-to-DeviceNet
This series of products allows to integrate a DeviceNet network with a PROFIBUS net.

產品介紹

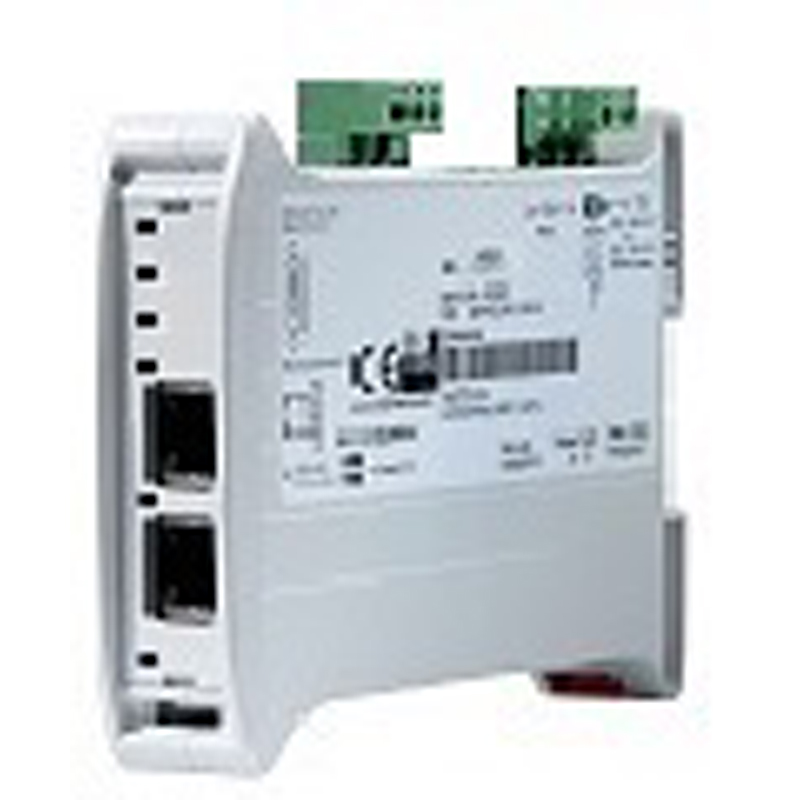

DeviceNet / PROFIBUS - Converter

This series of products allows to integrate a DeviceNet network with a PROFIBUS net.

The HD67555 is a DeviceNet Master / PROFIBUS Slave Converter and it allows you to connect some DeviceNet devices with a PROFIBUS net (for example a SIEMENS PLC...) in order to exchange the informations between the networks.

The HD67574 is a DeviceNet Slave / PROFIBUS Slave Converter and it allows you to connect a DeviceNet Master net (for example a Rockwell PLC...) with a PROFIBUS net (for example a SIEMENS PLC...) in order to exchange the informations between the networks.

The HD67570 is a DeviceNet Slave / PROFIBUS Master Converter and it allows you to connect a DeviceNet Master net (for example a Rockwell PLC...) with some PROFIBUS Slaves devices in order to exchange the informations between the networks.

The converters are available also in another version, ideal for STRONG applications.

The corresponding models are:

  • HD67440 - PROFIBUS Master / DeviceNet Slave, STRONG Converter

These converters are contained in a metal housing, so it is STRONG and RESISTANT to the vibrations and shocks. The electrical parts are with triple isolation of 4000 V between DeviceNet/PROFIBUS - DeviceNet/Power Supply - PROFIBUS/Power Supply.
Particularly suitable for the installation on cars, trains, boats, industrial sector and in fragile environments.
Two versions, one with Varnished PCB and one with Resined PCB.
Varnished treatment gives dust and humidity protection, Resined treatment gives high water, dust and vibrations protection.
Excellent range of temperature resistance from -40°C to +105°C, features required by AUTOMOTIVE applications.



HD67574-A1

DeviceNet Slave / PROFIBUS Slave - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 1xDeviceNet; 1xPROFIBUS; 1xRS232
Data Rates DeviceNet Up to 500 Mbps
Data Rates PROFIBUS Up to 12 Mbps
Power Supply 8...19V AC ; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67574

HD67570-A1

DeviceNet Slave/ PROFIBUS Master - Converter





Ports 1xDeviceNet; 1xPROFIBUS
Data Rates DeviceNet Up to 1 Mbps
Data Rates PROFIBUS Up to 6 Mpbs
DeviceNet Connector 3way removable terminal block connector
PROFIBUS Connector D-SUB9 Female
Power Supply 8...24V AC ; 12...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67570

HD67555

DeviceNet Master / PROFIBUS Slave - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 1xPROFIBUS; 1xDeviceNet
Data Rates DeviceNet Up to 500 Mbps
Data Rates PROFIBUS Auto baudrate
Power Supply 8...19V AC ; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67555

HD67440-E4V

PROFIBUS Master / DeviceNet Slave - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )





Ports 1xPROFIBUS, 1xDeviceNet
Data Rates DeviceNet Up to 500k bps
Data Rates PROFIBUS Up to 6 Mpbs
PROFIBUS Connector D-SUB9 Female
DeviceNet Connector 3way Mini-Fit®
Power Supply Connector 2way Mini-Fit®
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
SOFTWARE SW67440



HD67440-E7V

PROFIBUS Master / DeviceNet Slave - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )





Ports 1xPROFIBUS, 1xDeviceNet
Data Rates PROFIBUS Up to 6Mbps
Data Rates DeviceNet Up to 500k bps
PROFIBUS Connector D-SUB9 Female
DeviceNet Connector 3way SuperSeal 1.5
Power Supply Connector 2way SuperSeal 1.5
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40ºC/+105ºC (-40ºF/+221ºF)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
SOFTWARE SW67440



HD67440-E4R

PROFIBUS Master / DeviceNet Slave - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )





Ports 1xPROFIBUS, 1xDeviceNet
Data Rates PROFIBUS Up to 6Mbps
Data Rates DeviceNet Up to 500k bps
PROFIBUS Connector D-SUB9 Female
DeviceNet Connector 3way Mini-Fit®
Power Supply Connector 2way Mini-Fit®
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
SOFTWARE SW67440



HD67440-E7R

PROFIBUS Master / DeviceNet Slave - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )





Ports 1xPROFIBUS, 1xDeviceNet
Data Rates PROFIBUS Up to 6Mbps
Data Rates DeviceNet Up to 500k bps
PROFIBUS Connector D-SUB9 Female
DeviceNet Connector 3way SuperSeal 1.5
Power Supply Connector 2way SuperSeal 1.5
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40ºC/+105ºC (-40ºF/+221ºF)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
SOFTWARE SW67440



Accessories


Order Code Description
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC
AC34107 Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m
AC34114 Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m

Benefits

  • Software for easy configurator
  • Designed for serius use
  • Very easy to configure
  • Low cost
  • Rail din mountable
  • Wide supply input range
  • Galvanic isolation
  • Industrial temperature range:  -30° / 70° (-22°F / 158°F)
