Optic Fiber: J1939

Part No.: MPADFW-Optic-Fiber-J1939
The F and FSX converters allows to convert in Optical Fiber all the CAN buses used in the common systems.

產品介紹

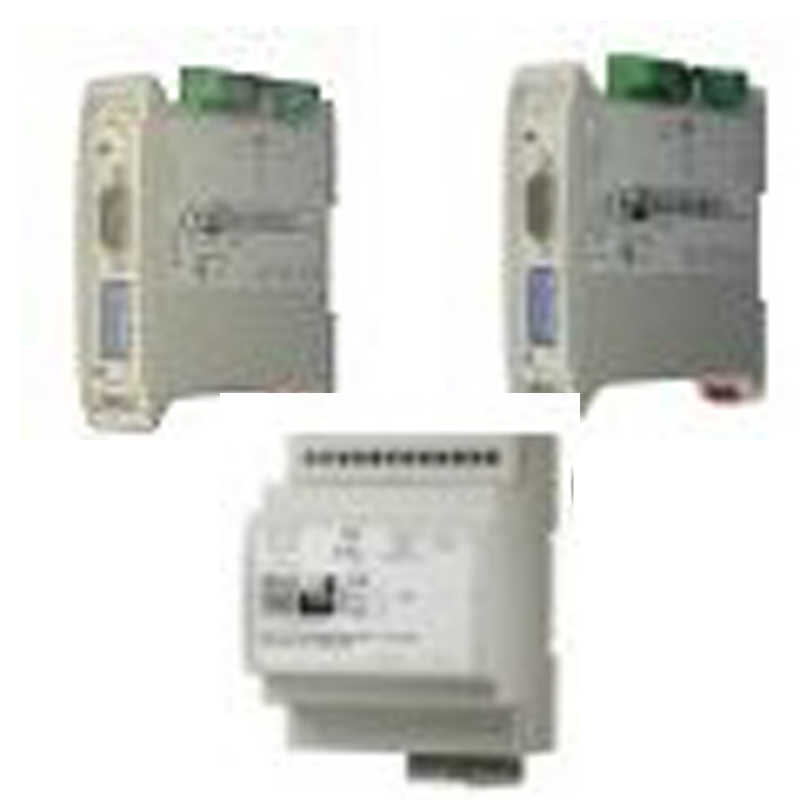

CAN / Optic Fiber - Converter

The F and FSX converters allows to convert in Optical Fiber all the CAN buses used in the common systems.

The HD67221F and the HD67221FSX are CAN repeaters with filter data configurable by software. It means that it is possible to filter the CAN data and choose the CAN frames that can be transmitted or not.

The HD67181F and the HD67181FSX are generic CAN repeaters that allows to extend a CAN network through Multi-Modal fiber optic.

The HD67117F and the HD67117FSX are CAN repeaters, specific for CANopen protocol.
The HD67182F and the HD67182FSX are CAN repeaters, specific for J1939 and NMEA 2000 protocol.
The HD67180F and the HD67180FSX are CAN repeaters, specific for DeviceNet protocol.

The HD67701 and HD67702 converters allow to convert in Optical Fiber all the buses used in the common communication systems (RS232, RS485, CAN, Ethernet, I/O).

The big advantage of these converters is the possibility to transfer in the same optical fiber system different types of bus.

In other words, it is possible to extend in the same physical means different buses, maintaining independent on different communication channels the data flows.

The HD67701 and HD67702 Converters allow to extend the networks through Multi-Modal fiber or Mono-Modal fiber or copper (Ethernet cable).

With the HD67701 is possible to make a Point-To-Point connection or a Single Loop (see the diagrams).







With the HD67702 is possible to make a Multi-Drop connection or a Double Loop (see the diagrams).






These different types of connections are possible thank the SFPs (Small Factor Pluggable): these are particular interchangeable modules that allow to change the type of cable and the maximum viable distance (up to 160 km).

To monitor the status of the optical fiber network, the devices have an auto-diagnostic system that allows to check the status of the network and find eventual failures.
With our simple software, it is possible to find all the devices in the optical fiber network and draw a simple scheme of the system.
It is posssible to check the status of the devices over specific diagnostic Modbus registers too.

It is possible to add to the converters of the HD67701 and HD67702 series an I/O expansion that allows to transmit over optical fiber some I/O signals. This module can have up to 4 DI and 4 DO.
The innovation of this system is the possibility to create a map of the I/O, so the possibility to activate/deactivate more DO with the same DI.

Point-to-Point connection between two devices/networks over optical fiber.
Optimal solution to cover a long distance, isolate the two sides and when there is the necessity to pass near noise sources (engines, inductive loads, etc.).
Single Loop connection between more converters.
This solution is ideal where there is the necessity to connect/isolate over optical fiber different brenches/devices of existing systems.
Multi-Drop connection between more converters.
This solution consists in a serial connection of more converters, without the mandatory to close the optical fiber system with a loop.
Double Loop or Redundant Loop connection between more converters.
This solution ensures the security and the speed of the optical fiber associated with the redundancy of the data.
In this way, thanks to the double loop in the optical fiber system, if there is a failure in a loop, the communication will continue to work.


Series CAN Optic fibres repeater and Bridge



HD67221F

CAN / Optic Fiber - Repeater - Extender bus line - (With filter data configurable)




Ports 1xCAN 2.0; 2xOptic Fibres
CAN2.0 Connector Terminal block
Optic Fibres Connector ST 820 um
DATA Rates CAN2.0 Up to 1 Mbps
DATA Rates Optic Fibres Up to 1Mbps
Power Supply 10...19V AC ; 10...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
SOFTWARE SW67221F



HD67221FSX

CAN / Optic Fiber - Repeater - Extender bus line - (With filter data configurable) ( High Performance )





Ports 1xCAN 2.0; 2xOptic Fibres
CAN2.0 Connector Terminal block
Optic Fibres Connector ST 820 um
DATA Rates CAN2.0 Up to 1 Mbps
DATA Rates Optic Fibres 1Mbps
Serial Connector 3way 5mm terminal block
Ethernet Connector RJ45
Power Supply Connector 2way 5mm removable screw terminal
Power Supply 8..24V AC; 12..35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
SOFTWARE SW67221FSX



Series CAN Optic fibres repeater



HD67181F

CAN / Optic Fiber - Repeater - Extender bus line




Ports 1xCAN; 2x Optic Fibres
CAN2.0 Connector Terminal block
Optic Fibres Connector ST 820 um
DATA Rates CAN2.0 Up to 1Mbps
DATA Rates Optic Fibres Up to 1Mbps
Power Supply 10...19V AC ; 10...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage



HD67181FSX

CAN / Optic Fiber - Repeater - Extender bus line ( High Performance )





Ports 1xCAN; 2x Optic Fibres
CAN2.0 Connector Terminal block
Optic Fibres Connector ST 820 um
DATA Rates CAN2.0 Up to 1Mbps
DATA Rates Optic Fibres 1Mbps
Power Supply 10...19V AC ; 10...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage



Series Optic Fibres CANopen Repeater



HD67117F

CANopen / Optic Fiber - Repeater - Extender bus line




Ports 1xCAN; 2x Optic Fibres
CAN2.0 Connector Terminal block
Optic Fibres Connector ST 820 um
DATA Rates CAN2.0 Up to 1Mbps
DATA Rates Optic Fibres Up to 1Mbps
Power Supply 10...19V AC ; 10...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage



HD67117FSX

CANopen / Optic Fiber - Repeater - Extender bus line ( High Performance )





Ports 1xCAN; 2x Optic Fibres
CAN2.0 Connector Terminal block
Optic Fibres Connector ST 820 um
DATA Rates CAN2.0 Up to 1Mbps
DATA Rates Optic Fibres 1Mbps
Power Supply 10...19V AC ; 10...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage



Series Optic Fibres J1939 Repeater



HD67182F

J1939 and NMEA 2000 / Optic Fiber - Repeater - Extender bus line




Ports 1xCAN; 2x Optic Fibres
CAN2.0 Connector Terminal block
Optic Fibres Connector ST 820 um
DATA Rates CAN2.0 Up to 1Mbps
DATA Rates Optic Fibres Up to 1Mbps
Power Supply 10...19V AC ; 10...35V DC
Operating Temperature -40蚓/+85蚓 (-40蚌/+185蚌)
Dimensions 120x23x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage



HD67182FSX

J1939 and NMEA 2000 / Optic Fiber - Repeater - Extender bus line ( High Performance )



Ports 1xCAN; 2x Optic Fibres
CAN2.0 Connector Terminal block
Optic Fibres Connector ST 820 um
DATA Rates CAN2.0 Up to 1Mbps
DATA Rates Optic Fibres 1Mbps
Power Supply 10...19V AC ; 10...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage



Series Optic Fibres DeviceNet Repeater



HD67180F

DeviceNet / Optic Fiber - Repeater - Extender bus line




Ports 1xCAN; 2x Optic Fibres
CAN2.0 Connector Terminal block
Optic Fibres Connector ST 820 um
DATA Rates CAN2.0 Up to 1Mbps
DATA Rates Optic Fibres Up to 1Mbps
Power Supply 10...19V AC ; 10...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage



HD67180FSX

DeviceNet / Optic Fiber - Repeater - Extender bus line ( High Performance )



Ports 1xCAN; 2x Optic Fibres
CAN2.0 Connector Terminal block
Optic Fibres Connector ST 820 um
DATA Rates CAN2.0 Up to 1Mbps
DATA Rates Optic Fibres 1Mbps
Power Supply 10...19V AC ; 10...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage



Series Converter CAN from/to Single-Mode Optic Fibres



HD67701-C-0-H5S

CAN / Single-Mode Optic Fiber - Converter ( Daisy chain fiber connections allowed: Single Loop, Point to point )





Ports 1xCAN; 1xUSB; 2xOptic Fibers
Data Rates CAN Up to 1Mbps
CAN Connector 3way 5mm fixed screw terminal
Optic Fiber Connector SFP
Power Supply 9..19V AC; 12..35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 71x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67701



HD67702-C-0-H5S-H5S

CAN / Single-Mode Optic Fiber - Converter (Daisy chain fiber connections allowed: Multi-drop, redundant Double loop, Point to Point)





Ports 1xCAN; 1xUSB; 4xOptic Fibers
Data Rates CAN Up to 1Mbps
CAN Connector 3way 5mm fixed screw terminal
Optic Fiber Connector SFP
Power Supply 9..19V AC; 12..35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 71x60x95 (DxWxH)
Weight
 200g approx
Mechanical Fixing DIN Rail montage
Software SW67701



Series Converter CAN from/to Multi-Mode Optic Fibres



HD67701-C-0-D5M

CAN / Multi-Mode Optic Fiber - Converter ( Daisy chain fiber connections allowed: Single Loop, Point to point )





Ports 1xCAN; 2xOptic Fibers
Data Rates CAN Up to 1Mbps
CAN Connector 3way 5mm fixed screw terminal
Optic Fiber Connector SFP
Power Supply 9..19V AC; 12..35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 71x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67701



HD67702-C-0-D5M-D5M

CAN / Multi-Mode Optic Fiber - Converter ( Daisy chain fiber connections allowed: Multi-drop, redundant Double loop, Point to Point )





Ports 1xCAN; 4xOptic Fibers
Data Rates CAN Up to 1Mbps
CAN Connector 3way 5mm fixed screw terminal
Optic Fiber Connector SFP
Power Supply 9..19V AC; 12..35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 71x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67701





Accessories


Order Code Description
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC
AC34107 Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m
AC34114 Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m
AC34121 Patch Cable Fibers ST/ST 2x2 Meters
AC34122 Patch Cable Fibers ST/ST 2x10 Meters
AC34132-OS2-2 Patch Cable Fiber / Single-Mode Optic Fiber with LC/LC connectors - 2 Meters
AC34132-OS2-10 Patch Cable Fiber / Single-Mode Optic Fiber with LC/LC connectors - 10 Meters
AC34132-OS2-20 Patch Cable Fiber / Single-Mode Optic Fiber with LC/LC connectors - 20 Meters
AC34133-OS2-2 Patch Cable Fiber / Multi-Mode Optic Fiber with LC/LC connectors - 2 Meters
AC34133-OS2-10 Patch Cable Fiber / Multi-Mode Optic Fiber with LC/LC connectors - 10 Meters
AC34133-OS2-20 Patch Cable Fiber / Multi-Mode Optic Fiber with LC/LC connectors - 20 Meters
AC67700-10-S
Accessory Transmitters, receivers, transceivers for fiber optics with SFP for 10 km
MONOMODAL
AC67700-20-S
Accessory Transmitters, receivers, transceivers for fiber optics with SFP for 20 km
MONOMODAL
AC67700-40-S
Accessory Transmitters, receivers, transceivers for fiber optics with SFP for 40 km
MONOMODAL
