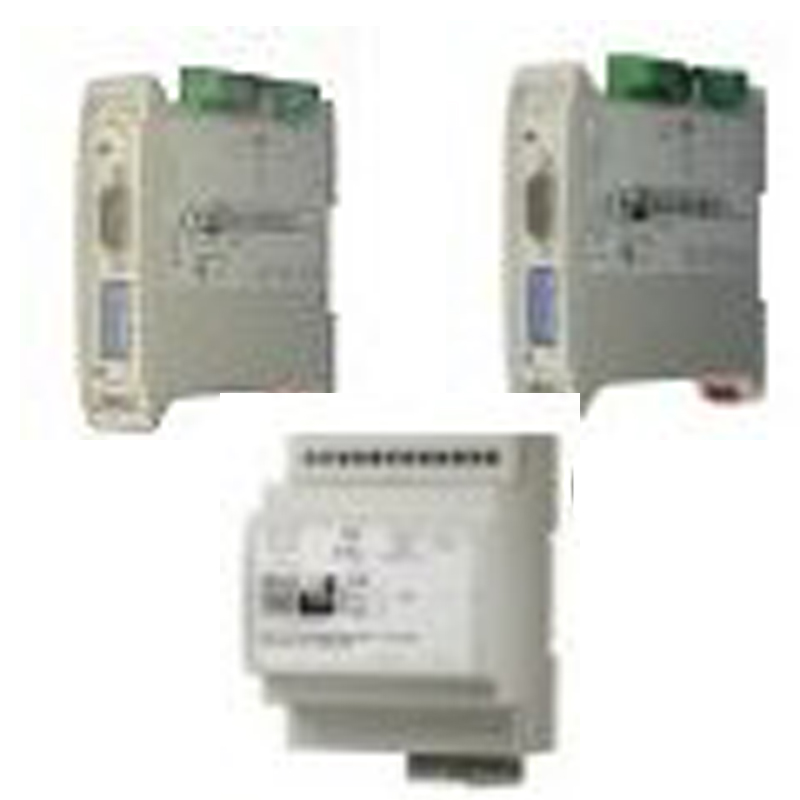

Fiber Optic

Bridge and Repeater

These Optic Fiber devices are designed to extend CAN, CANopen, DeviceNet, J1939, CAN 2.0A
and CAN2.0B networks using the optic fibers, without repeaters.




The series F and FSX CAN bus devices are designed to extend high CAN bus signals over Multi-Modal fiber optic, providing RFI and electrical insulation.

The HD67221F and the HD67221FSX are CAN repeaters with filter data configurable by software. It means that it is possible to filter the CAN data and choose the CAN frames that can be transmitted or not.

The HD67181F and the HD67181FSX are generic CAN repeaters that allows to extend a CAN network through Multi-Modal fiber optic.

The HD67117F and the HD67117FSX are CAN repeaters, specific for CANopen protocol.
The HD67182F and the HD67182FSX are CAN repeaters, specific for J1939 and NMEA 2000 protocols.




The HD67180F and the HD67180FSX are CAN repeaters, specific for DeviceNet protocol.

With the devices described previously, the possible connection topology is Point-To-Point (see diagrams on the right).




The HD67701 and the HD67702 are devices that allow to extend the CAN networks through Multi-Modal fiber or Mono-Modal fiber or copper (Ethernet cable). This different type connections are possible thank the SFPs (Small Factor Pluggable): these are particular interchangeable modules that allow to change the type of cable and the maximum viable distance (160 – 80 – 40 – 20 – 10 – 2 km). In is possible to buy this devices with the SFP mounted or without.

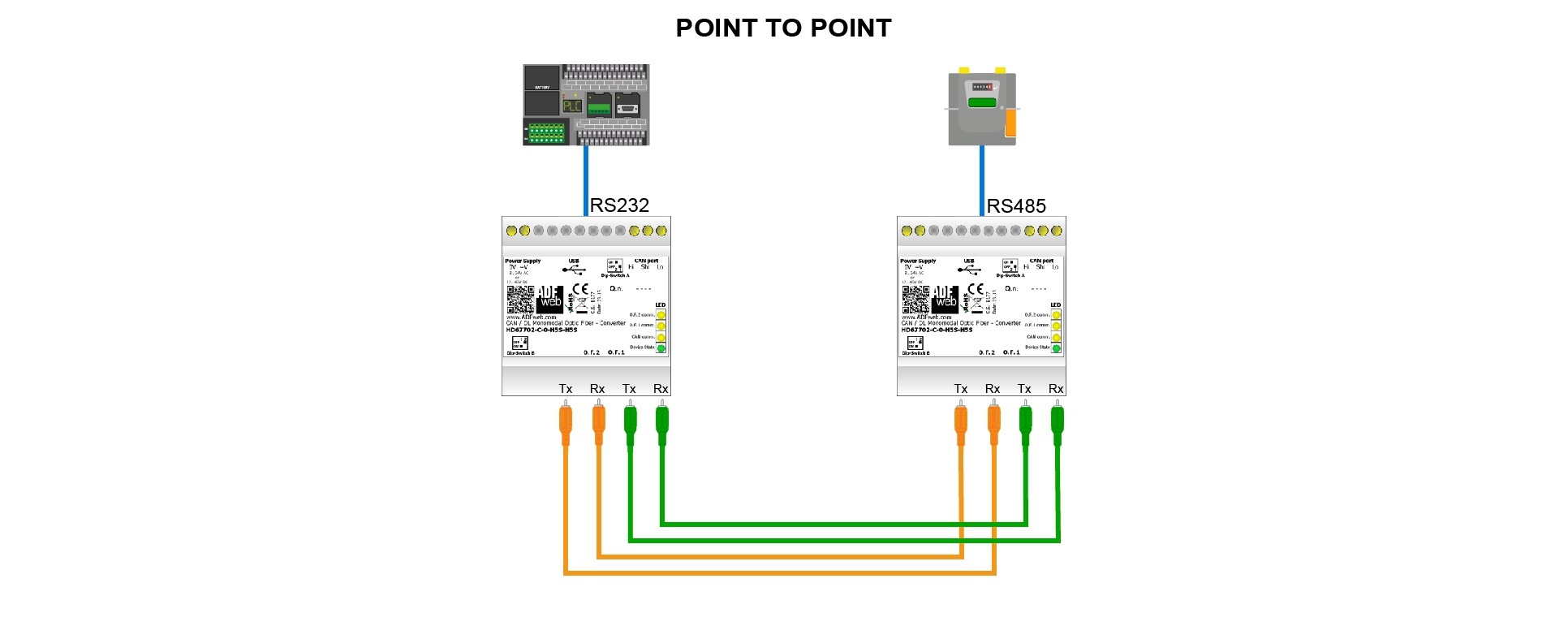

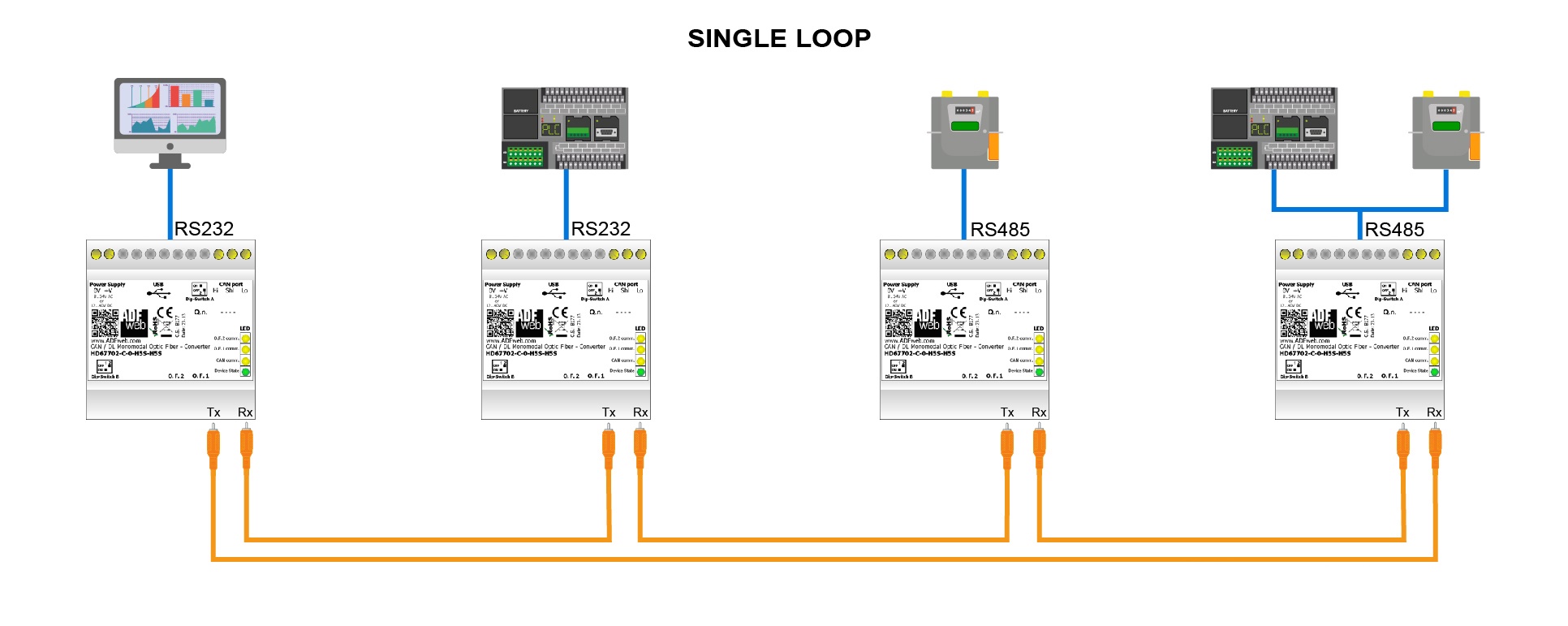

With the HD67701 is possible to make a Point-To-Point connection or a Single Loop (see the diagrams on the right).

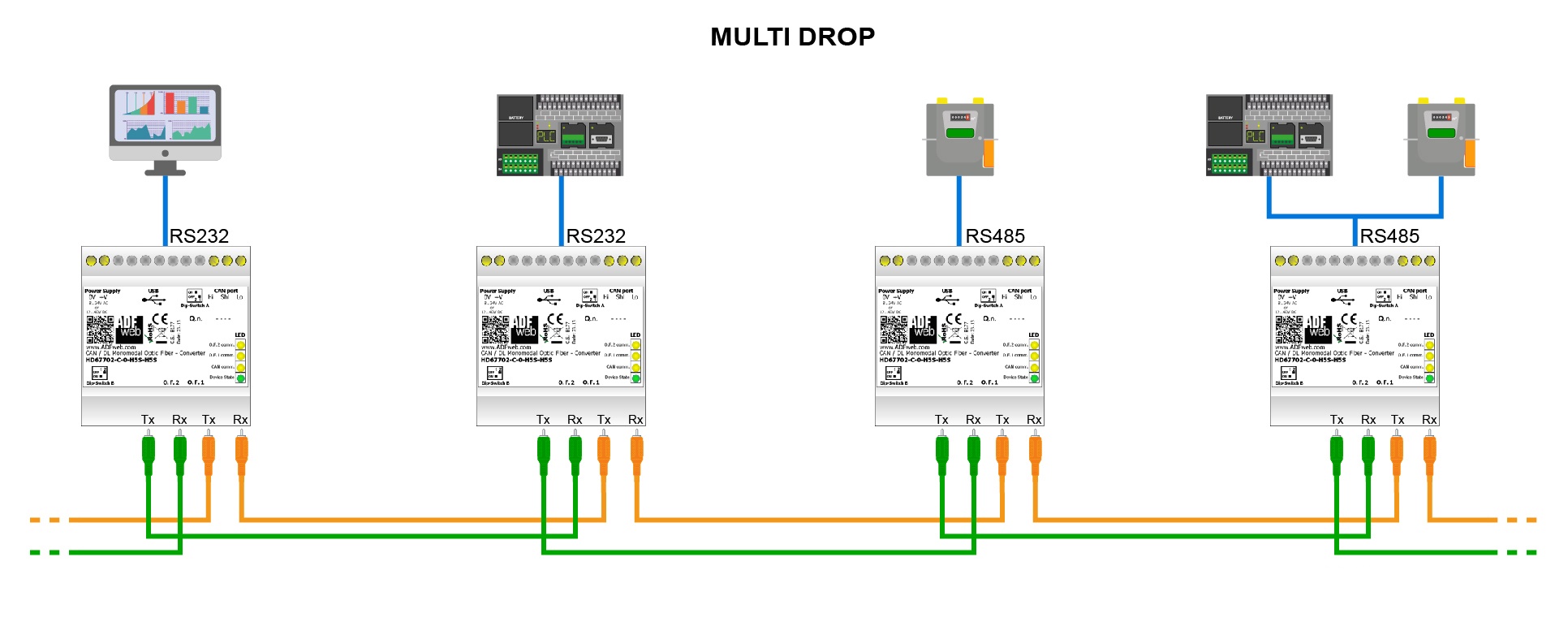

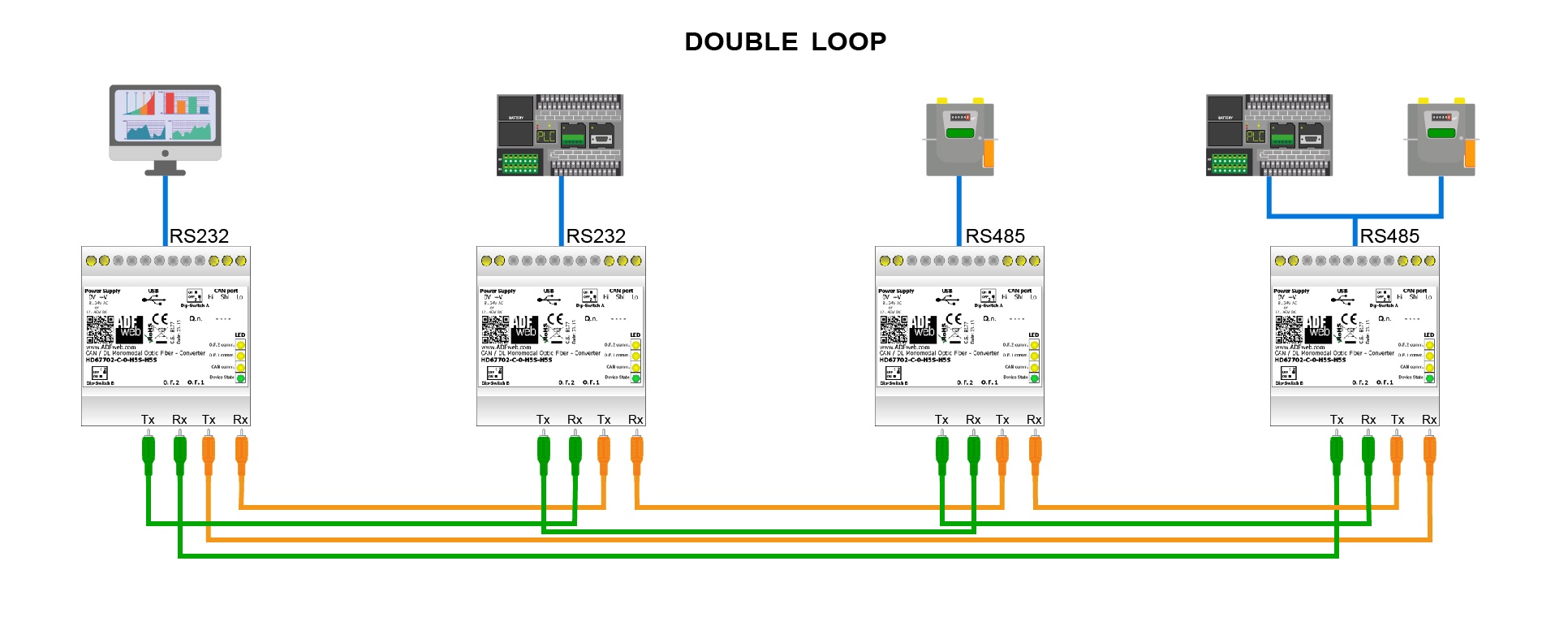

With the HD67702 is possible to make a Multi-Drop connection or a Double Loop (see the diagrams on the right).



Series CAN Optic fibres repeater and Bridge



HD67221F

CAN / Optic Fiber - Repeater - Extender bus line - (With filter data configurable)




Ports	1xCAN 2.0; 2xOptic Fibres
CAN2.0 Connector	Terminal block
Optic Fibres Connector	ST 820 um
DATA Rates CAN2.0	Up to 1 Mbps
DATA Rates Optic Fibres	Up to 1Mbps
Power Supply	10...19V AC ; 10...35V DC
Operating Temperature	-40ºC/+85ºC (-40ºF/+185ºF)
Dimensions	120x23x107 mm(DxWxH)
Weight	200g approx
Mechanical Fixing	DIN Rail montage
SOFTWARE	SW67221F



HD67221FSX

CAN / Optic Fiber - Repeater - Extender bus line - (With filter data configurable) ( High Performance )



Ports	1xCAN 2.0; 2xOptic Fibres
CAN2.0 Connector	Terminal block
Optic Fibres Connector	ST 820 um
DATA Rates CAN2.0	Up to 1 Mbps
DATA Rates Optic Fibres	1Mbps
Serial Connector	3way 5mm terminal block
Ethernet Connector	RJ45
Power Supply Connector	2way 5mm removable screw terminal
Power Supply	8..24V AC; 12..35V DC
Operating Temperature	-40ºC/+85ºC (-40ºF/+185ºF)
Dimensions	120x23x107 mm(DxWxH)
Weight	200g approx
Mechanical Fixing	DIN Rail montage
SOFTWARE	SW67221FSX

Series CAN Optic fibres repeater



HD67181F

CAN / Optic Fiber - Repeater - Extender bus line




Ports	1xCAN 2.0; 2xOptic Fibres
CAN2.0 Connector	Terminal block
Optic Fibres Connector	ST 820 um
DATA Rates CAN2.0	Up to 1 Mbps
DATA Rates Optic Fibres	Up to 1 Mbps
Power Supply	10...19V AC ; 10...35V DC
Operating Temperature	-40ºC/+85ºC (-40ºF/+185ºF)
Dimensions	120x23x107 mm(DxWxH)
Weight	200g approx
Mechanical Fixing	DIN Rail montage



HD67181FSX

CAN / Optic Fiber - Repeater - Extender bus line ( High Performance )



Ports	1xCAN; 2xOptic Fibres
CAN2.0 Connector	Terminal block
Optic Fibres Connector	ST 820 um
DATA Rates CAN2.0	Up to 1 Mbps
DATA Rates Optic Fibres	1Mbps
Power Supply	10..19V AC; 10..35V DC
Operating Temperature	-40ºC/+85ºC (-40ºF/+185ºF)
Dimensions	120x23x107 mm(DxWxH)
Weight	200g approx
Mechanical Fixing	DIN Rail montage

Series Optic Fibres CANopen Repeater



HD67117F

CANopen / Optic Fiber - Repeater - Extender bus line




Ports	1xCAN; 2x Optic Fibres
CAN2.0 Connector	Terminal block
Optic Fibres Connector	ST 820 um
DATA Rates CAN2.0	Up to 1 Mbps
DATA Rates Optic Fibres	Up to 1Mbps
Power Supply	10...19V AC ; 10...35V DC
Operating Temperature	-40ºC/+85ºC (-40ºF/+185ºF)
Dimensions	120x23x107 mm(DxWxH)
Weight	200g approx
Mechanical Fixing	DIN Rail montage



HD67117FSX

CANopen / Optic Fiber - Repeater - Extender bus line ( High Performance )



Ports	1xCAN ; 2xOptic Fibres
CAN2.0 Connector	Terminal block
Optic Fibres Connector	ST 820 um
DATA Rates CAN2.0	Up to 1 Mbps
DATA Rates Optic Fibres	1Mbps
Power Supply	10...19V AC ; 10...35V DC
Operating Temperature	-40ºC/+85ºC (-40ºF/+185ºF)
Dimensions	120x23x107 mm(DxWxH)
Weight	200g approx
Mechanical Fixing	DIN Rail montage

Series Optic Fibres J1939 Repeater

HD67182F

J1939 and NMEA 2000 / Optic Fiber - Repeater - Extender bus line




Ports	1xCAN ; 2xOptic Fibres
CAN2.0 Connector	Terminal block
Optic Fibres Connector	ST 820 um
DATA Rates CAN2.0	Up to 1 Mbps
DATA Rates Optic Fibres	Up to 1 Mbps
Power Supply	10...19V AC ; 10...35V DC
Operating Temperature	-40ºC/+85ºC (-40ºF/+185ºF)
Dimensions	120x23x107 mm(DxWxH)
Weight	200g approx
Mechanical Fixing	DIN Rail montage



HD67182FSX

J1939 and NMEA 2000 / Optic Fiber - Repeater - Extender bus line



Ports	1xCAN; 2x Optic Fibres
CAN2.0 Connector	Terminal block
Optic Fibres Connector	ST 820 um
DATA Rates CAN2.0	Up to 1 Mbps
DATA Rates Optic Fibres	1Mbps
Power Supply	10...19V AC ; 10...35V DC
Operating Temperature	-40ºC/+85ºC (-40ºF/+185ºF)
Dimensions	120x23x107 mm(DxWxH)
Weight	200g approx
Mechanical Fixing	DIN Rail montage

Series Optic Fibres DeviceNet Repeater

HD67180F

DeviceNet / Optic Fiber - Repeater - Extender bus line




Ports	1xCAN ; 2xOptic Fibres
CAN2.0 Connector	Terminal block
Optic Fibres Connector	ST 820 um
DATA Rates CAN2.0	Up to 1 Mbps
DATA Rates Optic Fibres	Up to 1 Mbps
Power Supply	10...19V AC ; 10...35V DC
Operating Temperature	-40ºC/+85ºC (-40ºF/+185ºF)
Dimensions	120x23x107 mm(DxWxH)
Weight	200g approx
Mechanical Fixing	DIN Rail montage



HD67180FSX

DeviceNet / Optic Fiber - Repeater - Extender bus line (High Performance)



Ports	1xCAN; 2x Optic Fibres
CAN2.0 Connector	Terminal block
Optic Fibres Connector	ST 820 um
DATA Rates CAN2.0	Up to 1 Mbps
DATA Rates Optic Fibres	1Mbps
Power Supply	10...19V AC ; 10...35V DC
Operating Temperature	-40ºC/+85ºC (-40ºF/+185ºF)
Dimensions	120x23x107 mm(DxWxH)
Weight	200g approx
Mechanical Fixing	DIN Rail montage

Series Converter CAN from/to Single-Mode Optic Fibres

HD67701-C-0-H5S

CAN / Single-Mode Optic Fiber - Converter ( Daisy chain fiber connections allowed: Single Loop, Point to point )




Ports	1xCAN ; 1xUSB; 2xOptic Fibres
Data Rates CAN	Up to 1Mbps
CAN Connector	3way 5mm fixed screw terminal
Optic Fiber Connector	SFP
Power Supply	9..19V AC; 12..35V DC
Operating Temperature	-40ºC/+85ºC (-40ºF/+185ºF)
Dimensions	71x60x95 (DxWxH)
Weight	200g approx
Mechanical Fixing	DIN Rail montage
Software	SW67701



HD67702-C-0-H5S-H5S

CAN / Single-Mode Optic Fiber - Converter (Daisy chain fiber connections allowed: Multi-drop, redundant Double loop, Point to Point)



Ports	1xCAN; 1xUSB; 4xOptic Fibers
Data Rates CAN	Up to 1Mbps
CAN Connector	3way 5mm fixed screw terminal
Optic Fiber Connector	SFP
Power Supply	9..19V AC; 12..35V DC
Operating Temperature	-40ºC/+85ºC (-40ºF/+185ºF)
Dimensions	71x60x95 (DxWxH)
Weight	200g approx
Mechanical Fixing	DIN Rail montage
Software	SW67701

Series Converter CAN from/to Multi-Mode Optic Fibres

HD67701-C-0-D5M

CAN / Multi-Mode Optic Fiber - Converter ( Daisy chain fiber connections allowed: Single Loop, Point to point )




Ports	1xCAN ; 2xOptic Fibres
Data Rates CAN	Up to 1Mbps
CAN Connector	3way 5mm fixed screw terminal
Optic Fiber Connector	SFP
Power Supply	9..19V AC; 12..35V DC
Operating Temperature	-40ºC/+85ºC (-40ºF/+185ºF)
Dimensions	71x60x95 (DxWxH)
Weight	200g approx
Mechanical Fixing	DIN Rail montage
Software	SW67701



HD67702-C-0-D5M-D5M

CAN / Multi-Mode Optic Fiber - Converter (Daisy chain fiber connections allowed: Multi-drop, redundant Double loop, Point to Point)



Ports	1xCAN; 4xOptic Fibers
Data Rates CAN	Up to 1Mbps
CAN Connector	3way 5mm fixed screw terminal
Optic Fiber Connector	SFP
Power Supply	9..19V AC; 12..35V DC
Operating Temperature	-40ºC/+85ºC (-40ºF/+185ºF)
Dimensions	71x60x95 (DxWxH)
Weight	200g approx
Mechanical Fixing	DIN Rail montage
Software	SW67701











Accessories

Order Code	Description
AC34011	Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012	Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC
AC34107	Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m
AC34114	Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m
AC34121	Patch Cable Fibers ST/ST 2x2 Meters
AC34122	Patch Cable Fibers ST/ST 2x10 Meters
AC34132-OS2-2	Patch Cable Fiber / Single-Mode Optic Fiber with LC/LC connectors - 2 Meters
AC34132-OS2-10	Patch Cable Fiber / Single-Mode Optic Fiber with LC/LC connectors - 10 Meters
AC34132-OS2-20	Patch Cable Fiber / Single-Mode Optic Fiber with LC/LC connectors - 20 Meters
AC34133-OS2-2	Patch Cable Fiber / Multi-Mode Optic Fiber with LC/LC connectors - 2 Meters
AC34133-OS2-10	Patch Cable Fiber / Multi-Mode Optic Fiber with LC/LC connectors - 10 Meters
AC34133-OS2-20	Patch Cable Fiber / Multi-Mode Optic Fiber with LC/LC connectors - 20 Meters
AC67700-10-S	Accessory Transmitters, receivers, transceivers for fiber optics with SFP for 10 km MONOMODAL
AC67700-20-S	Accessory Transmitters, receivers, transceivers for fiber optics with SFP for 20 km MONOMODAL
AC67700-40-S	Accessory Transmitters, receivers, transceivers for fiber optics with SFP for 40 km MONOMODAL
