OPC UA to EthernetIP
Part No.: MPADFW-OPC-UA-to-EthernetIP
This series of products allows to integrate an OPC UA network with a EtherNet/IP network.
產品介紹
OPC UA / EtherNet/IP - Converter
This series of products allows to integrate an OPC UA network with a EtherNet/IP network.

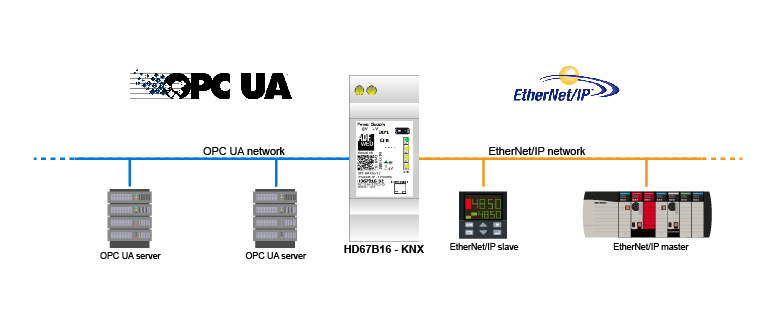

The HD67B16 is an OPC UA Client / EtherNet/IP Converter and it allows you to read/write the data from one or more OPC UA Servers using a EtherNet/IP Master (like PLC, PC etc).
The HD67B38 is an OPC UA Server / EtherNet/IP Master Converter and it allows you to read/write the data from one or more EtherNet/IP slaves (like barcode scanners, printers, RFID, weight scales etc) using one or more OPC UA Clients
The HD67B39 is an OPC UA Server / EtherNet/IP Slave Converter and it allows you to interface a EtherNet/IP Master (like a PLC, PC etc) with one or more OPC UA Clients in order to exchange the informations between the networks.
The OPC UA communication can be encrypted, ensuring a SECURE and SAFETY communication
OPC UA Client / EtherNet/IP
HD67B16-B2
OPC UA Client / EtherNet/IP Slave - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 2xEthernet | |
|---|---|---|
| EtherNet/IP Protocol | EtherNet/IP Slave | |
| Ethernet Protocol | OPC UA Client | |
| Data Rates EtherNet/IP | 10/100 Base-T Autosensing | |
| Data Rates OPC UA | 10/100 Base-T Autosensing | |
| EtherNet/IP Connector | RJ45 | |
| OPC UA Connector | RJ45 | |
| Power Supply Connector | 2way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 (LxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| SOFTWARE | SW67B16 | |
OPC UA Server / EtherNet/IP
HD67B38-B2
OPC UA Server / EtherNet/IP Master - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 2xEthernet | |
|---|---|---|
| EtherNet/IP Protocol | EtherNet/IP Master | |
| Ethernet Protocol | OPC UA Server | |
| Data Rates EtherNet/IP | 10/100 Base-T Autosensing | |
| Data Rates OPC UA | 10/100 Base-T Autosensing | |
| Ethernet/IP Connector | RJ45 | |
| OPC UA Connector | RJ45 | |
| Power Supply Connector | 2way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 (LxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| SOFTWARE | SW67B38 | |
HD67B39-B2
OPC UA Server / EtherNet/IP Slave - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 2xEthernet | |
|---|---|---|
| EtherNet/IP Protocol | EtherNet/IP Master | |
| Ethernet Protocol | OPC UA Server | |
| Data Rates EtherNet/IP | 10/100 Base-T Autosensing | |
| Data Rates OPC UA | 10/100 Base-T Autosensing | |
| Ethernet/IP Connector | RJ45 | |
| OPC UA Connector | RJ45 | |
| Power Supply Connector | 2way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 (LxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| SOFTWARE | SW67B39 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
