OPC UA to DeviceNet

Part No.: MPADFW-OPC-UA-to-DeviceNet
This series of products allows to integrate an OPC UA network with a DeviceNet network.

產品介紹

OPC UA / DeviceNet - Converter

This series of products allows to integrate an OPC UA network with a DeviceNet network.

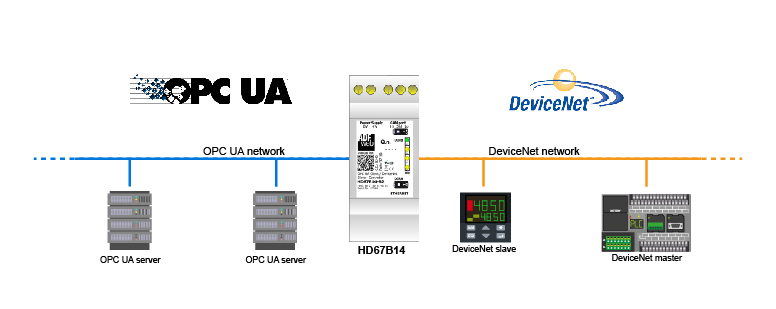

The HD67B14 is an OPC UA Client / DeviceNet Slave Converter and it allows you to read/write the data from one or more OPC UA Servers using a DeviceNet Master (like PLC, PC etc).

The HD67B35 is an OPC UA Server / DeviceNet Master Converter and it allows you to read/write the data from one or more DeviceNet slaves (like barcode scanners, printers, RFID, weight scales etc) using one or more OPC UA Clients.

The HD67B36 is an OPC UA Server / DeviceNet Slave Converter and it allows you to interface a DeviceNet Master (like a PLC, PC etc) with one or more OPC UA Clients in order to exchange the informations between the networks.

The OPC UA communication can be encrypted, ensuring a SECURE and SAFETY communication



OPC UA Client / DeviceNet



HD67B14-B2

OPC UA Client / DeviceNet Slave - Converter ( Housing type: B, Terminal Blocks Connectors )



Ports 1xCAN;1xEthernet
DeviceNet Protocol DeviceNet Slave
Ethernet Protocol OPC UA Client
Data Rates DeviceNet 10/100 Base-T Autosensing
Data Rates OPC UA 10/100 Base-T Autosensing
DeviceNet Connector 3way 5mm terminal block
OPC UA Connector RJ45
Power Supply Connector 2way 5mm terminal block
Power Supply 8..24V AC; 12..35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 36x60x95 (LxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
SOFTWARE SW67B14



OPC UA Server / DeviceNet



HD67B35-B2

OPC UA Server / DeviceNet Master - Converter ( Housing type: B, Terminal Blocks Connectors )



Ports 1xCAN;1xEthernet
DeviceNet Protocol DeviceNet Master
Ethernet Protocol OPC UA Server
Data Rates DeviceNet 10/100 Base-T Autosensing
Data Rates OPC UA 10/100 Base-T Autosensing
DeviceNet Connector 3way 5mm terminal block
OPC UA Connector RJ45
Power Supply Connector 2way 5mm terminal block
Power Supply 8..24V AC; 12..35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 36x60x95 (LxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
SOFTWARE SW67B35



HD67B36-B2

OPC UA Server / DeviceNet Slave - Converter ( Housing type: B, Terminal Blocks Connectors )



Ports 1xCAN;1xEthernet
DeviceNet Protocol DeviceNet Slave
Ethernet Protocol OPC UA Server
Data Rates DeviceNet 10/100 Base-T Autosensing
Data Rates OPC UA 10/100 Base-T Autosensing
DeviceNet Connector 3way 5mm terminal block
OPC UA Connector RJ45
Power Supply Connector 2way 5mm terminal block
Power Supply 8..24V AC; 12..35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 36x60x95 (LxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
SOFTWARE SW67B36



Accessories


Order Code Description
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC
AC34131 Patch Cross Cable Cat6 2 Meters
