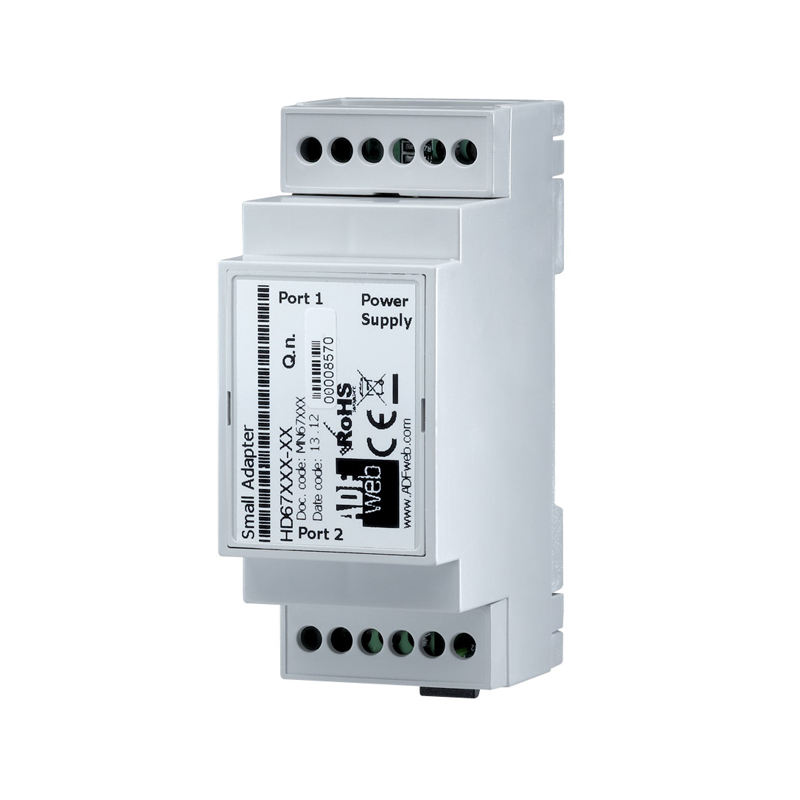

OPC UA to DMX
Part No.: MPADFW-OPC-UA-to-DMX
This series of products allows to integrate an OPC UA network with a DMX network.
產品介紹
OPC UA / DMX - Converter
This series of products allows to integrate an OPC UA network with a DMX network.
The HD67B15 is an OPC UA Client / DMX Converter and it allows you to read/write the data from a DMX net using one or more OPC UA Servers.
The HD67B37 is an OPC UA Server / DMX Converter and it allows you to read/write the data from one or more DMX devices (like lights systems etc) using one or more OPC UA Clients.
The OPC UA communication can be encrypted, ensuring a SECURE and SAFETY communication
OPC UA Client / DMX
HD67B15-B2
OPC UA Client / DMX - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xCAN;1xEthernet | |
|---|---|---|
| DMX Protocol | CANopen | |
| Ethernet Protocol | OPC UA Client | |
| Data Rates DMX | Up to 115200 bps | |
| Data Rates OPC UA | 10/100 Base-T Autosensing | |
| DMX Connector | 3way 5mm terminal block | |
| OPC UA Connector | RJ45 | |
| Power Supply Connector | 2way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 (LxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| SOFTWARE | SW67B15 | |
OPC UA Server / DMX
HD67B37-B2
OPC UA Server / DMX - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xCAN;1xEthernet | |
|---|---|---|
| DMX Protocol | CANopen | |
| Ethernet Protocol | OPC UA Server | |
| Data Rates DMX | Up to 115200 bps | |
| Data Rates OPC UA | 10/100 Base-T Autosensing | |
| DMX Connector | 3way 5mm terminal block | |
| OPC UA Connector | RJ45 | |
| Power Supply Connector | 2way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 (LxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| SOFTWARE | SW67B37 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
