OPC UA to CANopen

Part No.: MPADFW-OPC-UA-to-CANopen
This series of products allows to integrate an OPC UA network with a CANopen network.

產品介紹

OPC UA / CANopen - Converter

This series of products allows to integrate an OPC UA network with a CANopen network.

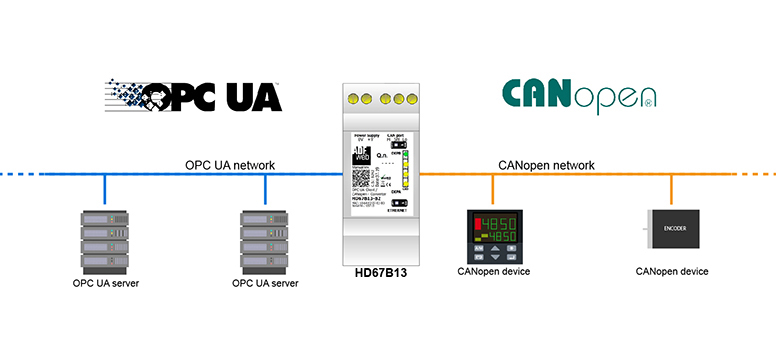

The HD67B13 is an OPC UA Client / CANopen Converter and it allows you to read/write the data from one or more OPC UA Servers using CANopen devices (like PC etc).

The HD67B34 is an OPC UA Server / CANopen Converter and it allows you to read/write the data from one or more CANopen devices (like display, encoder, weight scales etc) using one or more OPC UA Clients.

The OPC UA communication can be encrypted, ensuring a SECURE and SAFETY communication.



OPC UA Client / CANopen



HD67B13-B2

OPC UA Client / CANopen - Converter ( Housing type: B, Terminal Blocks Connectors )



Ports 1xCAN;1xEthernet
CAN Protocol CANopen
Ethernet Protocol OPC UA Client
Data rates CANopen Up to 1Mbps
Data rates OPC UA 10/100 Base-T Autosensing
CANopen Connector 3way 5mm terminal block
OPC UA Connector RJ45
Power Supply Connector 2way 5mm terminal block
Power Supply 8..24V AC; 12..35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 36x60x95 (LxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
SOFTWARE SW67B13



OPC UA Server / CANopen



HD67B34-B2

OPC UA Server / CANopen - Converter ( Housing type: B, Terminal Blocks Connectors )



Ports 1xCAN; 1xEthernet
CAN Protocol CANopen
Ethernet Protocol OPC UA Server
Data rates CANopen Up to 1Mbps
Data rates OPC UA 10/100 Base-T Autosensing
CANopen Connector 3way 5mm terminal block
OPC UA Connector RJ45
Power Supply Connector 2way 5mm terminal block
Power Supply 8..24V AC; 12..35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 36x60x95 (LxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
SOFTWARE SW67B34



Accessories


Order Code Description
AC34011  Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC
AC34131 Patch Cross Cable Cat6 2 Meters
