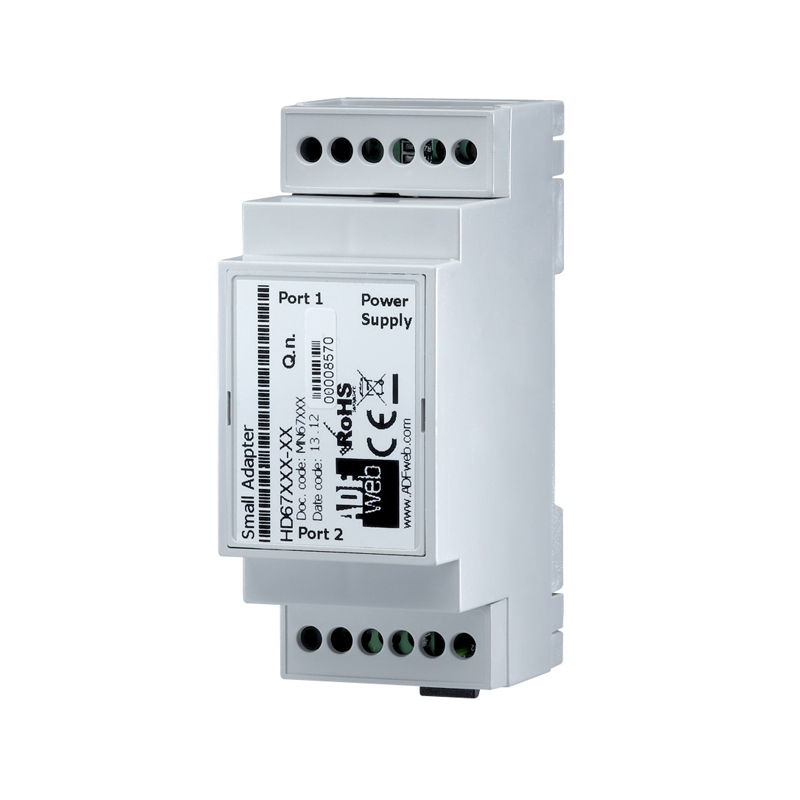

OPC UA to 232/ 422/ 485

Part No.: MPADFW-OPC-UA-to-232-422-485
This series of products allows to integrate an OPC UA network with a Serial network.

產品介紹

OPC UA / Serial - Converter

This series of products allows to integrate an OPC UA network with a Serial network.

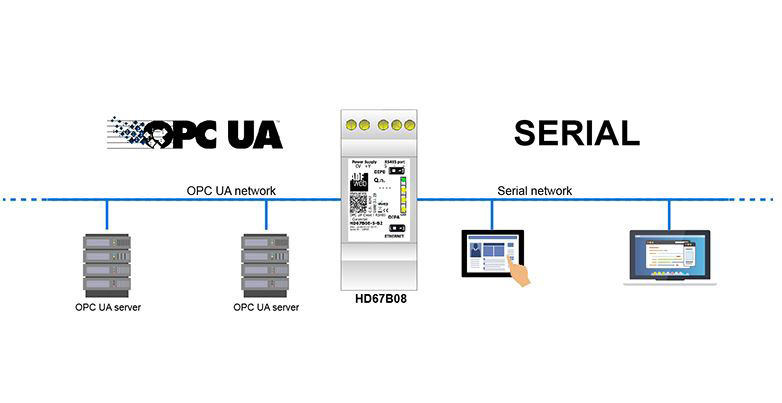

The HD67B08 is an OPC UA Client / Serial Converter and it allows you to read/write the data from one or more OPC UA Servers using Serial devices (like PLC, PC etc).

The HD67B26 is an OPC UA Server / Serial Converter and it allows you to read/write the data from one or more Serial devices (like barcode scanners, printers, RFID, weight scales etc) using one or more OPC UA Clients.

The OPC UA communication can be encrypted, ensuring a SECURE and SAFETY communication.

There are also two differnts order codes in relation of the type of serial port:

  • HD67Bxx-2-B2: OPC / Serial RS232 - Converter
  • HD67Bxx-5-B2: OPC / Serial RS485 - Converter

OPC UA Client / Serial



HD67B08-2-B2

OPC UA Client / Serial RS232 - Converter ( Housing type: B, Terminal Blocks Connectors )

Ports 1xRS232;1xEthernet
Serial Protocol RS232
Ethernet Protocol OPC UA Client
Data Rates Serial Up to 1Mbps
Data Rates OPC UA 10/100 Base-T Autosensing
Serial Connector 3way 5mm terminal block
OPC UA Connector RJ45
Power Supply Connector 2way 5mm terminal block
Power Supply 8..24V AC; 12..35V DC
Operating Temperature -40ºC/+85ºC(-40ºF/+185ºF)
Dimensions 36x60x95 (LxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
SOFTWARE SW67B08



HD67B08-5-B2

OPC UA Client / Serial RS485 - Converter ( Housing type: B, Terminal Blocks Connectors )



Ports 1xRS485; 1xEthernet
Serial Protocol RS485
Ethernet Protocol OPC UA Client
Data Rates Serial Up to 1Mbps
Data Rates OPC UA 10/100 Base-T Autosensing
Serial Connector 3way 5mm terminal block
OPC UA Connector RJ45
Power Supply Connector 2way 5mm terminal block
Power Supply 8..24V AC; 12..35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 36x60x95 (LxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
SOFTWARE SW67B08



OPC UA Server / Serial



HD67B26-2-B2

OPC UA Client / Serial RS232 - Converter ( Housing type: B, Terminal Blocks Connectors )



Ports 1xRS232;1xEthernet
Serial Protocol RS232
Ethernet Protocol OPC UA Server
Data Rates Serial Up to 115200 bps
Data Rates OPC UA 10/100 Base-T Autosensing
Serial Connector 3way 5mm terminal block
OPC UA Connector RJ45
Power Supply Connector 2way 5mm terminal block
Power Supply 8..24V AC; 12..35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 36x60x95 (LxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
SOFTWARE SW67B26



HD67B26-5-B2

OPC UA Client / Serial RS485 - Converter ( Housing type: B, Terminal Blocks Connectors )



Ports 1xRS485; 1xEthernet
Serial Protocol RS485
Ethernet Protocol OPC UA Server
Data Rates Serial Up to 115200 bps
Data Rates OPC UA 10/100 Base-T Autosensing
Serial Connector 3way 5mm terminal block
OPC UA Connector RJ45
Power Supply Connector 2way 5mm terminal block
Power Supply 8..24V AC; 12..35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 36x60x95 (LxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
SOFTWARE SW67B26



Accessories


Order Code Description
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC
AC34131 Patch Cross Cable Cat6 2 Meters
