NMEA2000 to Modbus

Part No.: MPADFW-NMEA2000-to-Modbus
This series of products allows to integrate a NMEA2000 network with a Modbus or Modbus TCP net.

產品介紹

NMEA2000 / Modbus - Converter

NMEA2000 / Modbus TCP - Converter

This series of products allows to integrate a NMEA2000 network with a Modbus or Modbus TCP net.

The HD67222 is a NMEA2000 / Modbus Slave Converter and it allows you to connect a NMEA2000 network with a Modbus RTU Master (for example a PLC, HMI...) in order to exchange the informations between the networks.

The HD67225 is a NMEA2000 / Modbus TCP Slave Converter and it allows you to connect a NMEA2000 network with a Modbus TCP Master (for example a PLC, HMI...) in order to exchange the informations between the networks.

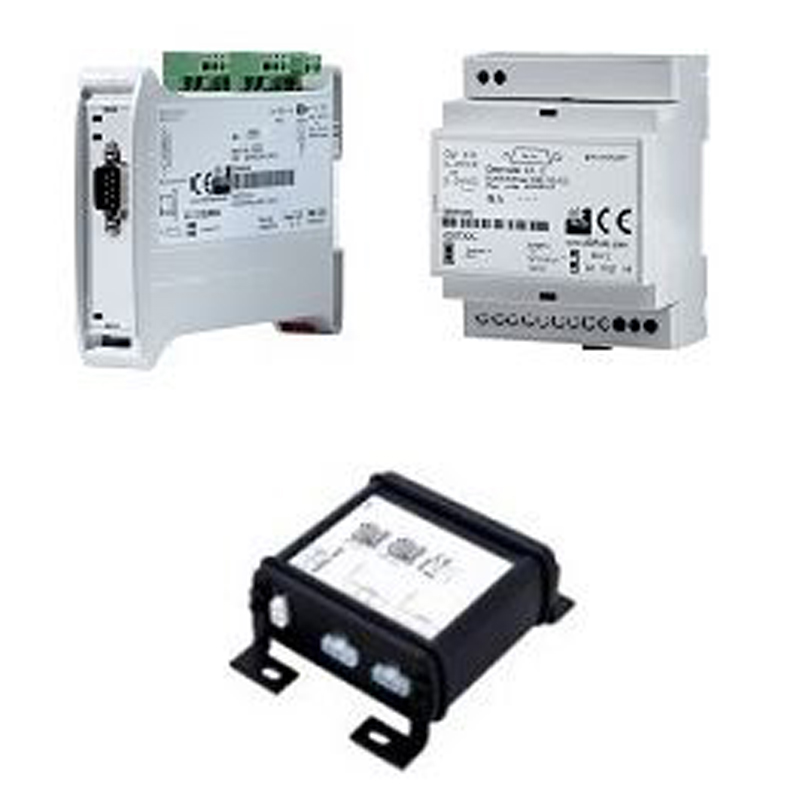

They are available in two Housing types: Type A and Type B.

The converters are available also in another version, ideal for STRONG applications.

The corresponding models are:

  • HD67452 - NMEA2000 / Modbus Slave, STRONG Converter
  • HD67455 - NMEA2000 / Modbus TCP Slave, STRONG Converter

These converters are contained in a metal housing, so it is STRONG and RESISTANT to the vibrations and shocks. The electrical parts are with triple isolation of 4000 V between NMEA2000 /Modbus - NMEA2000 /Power Supply - Modbus/Power Supply.
Particularly suitable for the installation on cars, trains, boats, industrial sector and in fragile environments.
Two versions, one with Varnished PCB and one with Resined PCB.
Varnished treatment gives dust and humidity protection, Resined treatment gives high water, dust and vibrations protection.
Excellent range of temperature resistance from -40°C to +105°C, features required by AUTOMOTIVE applications.



Series NMEA 2000 from/to Modbus



HD67222-A1

NMEA 2000 / Modbus Slave - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 1xRS232; 1xRS485; 1xNMEA 2000
RS232 Connector DSUB9 Male
RS485 Connector Terminal Block
NMEA 2000 Connector Terminal Block
Data Rates NMEA 2000 250 kbps
Data Rates Modbus Up to 115200 bps
Power Supply 8...19V AC; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67222



HD67222-B2

NMEA 2000 / Modbus Slave - Converter ( Housing type: B, Terminal Blocks Connectors )





Ports 1xRS232; 1xRS485; 1xNMEA 2000
RS232 Connector DSUB9 Male
RS485 Connector Terminal Block
NMEA 2000 Connector Terminal Block
Data Rates NMEA 2000 250 kbps
Data Rates Modbus Up to 115200 bps
Power Supply 8...19V AC; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 71x60x95 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67222



NMEA 2000 / Modbus Slave - Converter

Products supplied with metal housing (Housing type: E), are STRONG and RESISTANT to mechanical stress (such as vibration and shock), electrical parts with a triple insulation 4 kV between RS485 / NMEA 2000 - RS485/Power Supply – NMEA 2000/Power Supply.
Particularly suitable for installation in cars, trucks, trains, boats, in the industrial sector and in fragile environments.
Two versions, one with a coating of the PCB (suffix code V) that ensures total protection to the dust (IP65) and another encapsulation-based resin (suffix code R) which gives to device the high performance safety and insulation for wet environments and to resist to noise.
This product can be mounted on any type of surface (horizontal, vertical and oblique) with four fixing lugs, also you can choose the type of connector, Mini-Fit or Superseal 1.5.
Excellent range of temperature resistance from -40° C to +105° C, features required by AUTOMOTIVE.



HD67452-E4V

NMEA 2000 / Modbus Slave - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )





Ports 1xCAN, 1xRS485
Data Rates NMEA 2000 Up to 1 Mbps
Data Rates Modbus Up to 115200 bps
NMEA 2000 Connector 3way Mini-Fit®
Modbus Connector 3way Mini-Fit®
Power Supply Connector 2way Mini-Fit®
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67452



HD67452-E4R

NMEA 2000 / Modbus Slave - Converter (Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined)





Ports 1xCAN, 1xRS485
Data Rates NMEA 2000 Up to 1 Mbps
Data Rates Modbus Up to 115200 bps
NMEA 2000 Connector 3way Mini-Fit®
Modbus Connector 3way Mini-Fit®
Power Supply Connector 2way Mini-Fit®
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67452



HD67452-E7V

NMEA 2000 / Modbus Slave - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )





Ports 1xCAN, 1xRS485
Data Rates NMEA 2000 Up to 1 Mbps
Data Rates Modbus Up to 115200 bps
NMEA 2000 Connector 3way SuperSeal 1.5
Modbus Connector 3way SuperSeal 1.5
Power Supply Connector 2way SuperSeal 1.5
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40ºC/+105ºC (-40ºF/+221ºF)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67457



HD67452-E7R

NMEA 2000 / Modbus Slave - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )





Ports 1xCAN, 1xRS485
Data Rates NMEA 2000 Up to 1 Mbps
Data Rates Modbus Up to 115200 bps
NMEA 2000 Connector 3way SuperSeal 1.5
Modbus Connector 3way SuperSeal 1.5
Power Supply Connector 2way SuperSeal 1.5
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40ºC/+105ºC (-40ºF/+221ºF)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67457



Series NMEA 2000 from/to Modbus TCP



HD67225-A1

NMEA 2000 / Modbus TCP Slave - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 1xModbus TCP; 1xNMEA 2000
Modbus TCP Connector RJ45
NMEA 2000 Connector Terminal Block
Data Rates NMEA 2000 250 kbps
Power Supply 8...19V AC; 8...35V DC
Operating Temperature -40°C/+85°C (-40°F/+185°F)
Dimensions 120x23x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67225



HD67225-B2

NMEA 2000 / Modbus TCP Slave - Converter ( Housing type: B, Terminal Blocks Connectors )





Ports 1xModbus TCP; 1xNMEA 2000
Modbus TCP Connector RJ45
NMEA 2000 Connector Terminal Block
Data Rates NMEA 2000 250 kbps
Power Supply 8...19V AC; 8...35V DC
Operating Temperature -40°C/+85°C (-40°F/+185°F)
Dimensions 71x60x95 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67225



NMEA 2000 / Modbus TCP Slave - Converter

Products supplied with metal housing (Housing type: E), are STRONG and RESISTANT to mechanical stress (such as vibration and shock), electrical parts with a triple insulation 4 kV between Ethernet/NMEA 2000 - Ethernet/Power Supply – NMEA 2000/Power Supply.
Particularly suitable for installation in cars, trucks, trains, boats, in the industrial sector and in fragile environments.
Two versions, one with a coating of the PCB (suffix code V) that ensures total protection to the dust (IP65) and another encapsulation-based resin (suffix code R) which gives to device the high performance safety and insulation for wet environments and to resist to noise.
This product can be mounted on any type of surface (horizontal, vertical and oblique) with four fixing lugs, also you can choose the type of connector, Mini-Fit or Superseal 1.5.
Excellent range of temperature resistance from -40° C to +105° C, features required by AUTOMOTIVE.



HD67455-E4V

NMEA 2000 / Modbus TCP Slave - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )





Ports 1xCAN, 1xEtherNet
Data Rates NMEA 2000 Up to 1 Mbps
Data Rates EtherNet 10/100 Base-T Autosensing
NMEA 2000 Connector 3way Mini-Fit®
EtherNet Connector RJ45
Power Supply Connector 2way Mini-Fit®
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lug B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lug C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67455



HD67455-E4R

NMEA 2000 / Modbus TCP Slave - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )





Ports 1xCAN, 1xEtherNet
Data Rates NMEA 2000 Up to 1 Mbps
Data Rates EtherNet 10/100 Base-T Autosensing
NMEA 2000 Connector 3way Mini-Fit®
EtherNet Connector RJ45
Power Supply Connector 2way Mini-Fit®
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67455



HD67455-E7V

NMEA 2000 / Modbus TCP Slave - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )




Ports 1xCAN, 1xEtherNet
Data Rates NMEA 2000 Up to 1 Mbps
Data Rates EtherNet 10/100 Base-T Autosensing
NMEA 2000 Connector 3way SuperSeal 1.5
EtherNet Connector 4way SuperSeal 1.5
Power Supply Connector 2way SuperSeal 1.5
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40ºC/+105ºC (-40ºF/+221ºF)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67455



HD67455-E7R

NMEA 2000 / Modbus TCP Slave - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )





Ports 1xCAN, 1xEtherNet
Data Rates NMEA 2000 Up to 1 Mbps
Data Rates EtherNet 10/100 Base-T Autosensing
NMEA 2000 Connector 3way SuperSeal 1.5
EtherNet Connector 4way SuperSeal 1.5
Power Supply Connector 2way SuperSeal 1.5
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40ºC/+105ºC (-40ºF/+221ºF)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67455

Accessories


Order Code Description
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC
AC67402 Cable Super Seal 1.5 MALE 2-pole – 1.0 Meters
AC67402-3 Cable Super Seal 1.5 MALE 2-pole – 3.0 Meters
AC67403 Cable Super Seal 1.5 MALE 3-pole – 1.0 Meters
AC67403-3 Cable Super Seal 1.5 MALE 3-pole – 3.0 Meters
AC67410 Automotive Devices - Support for Rail DIN
