NMEA 0183 to OPC UA
Part No.: MPADFW-NMEA01830-to-OPC-UA
This series of products allows to integrate an OPC UA network with a NMEA0183 network.
產品介紹
OPC UA / NMEA0183 - Converter
This series of products allows to integrate an OPC UA network with a NMEA0183 network.

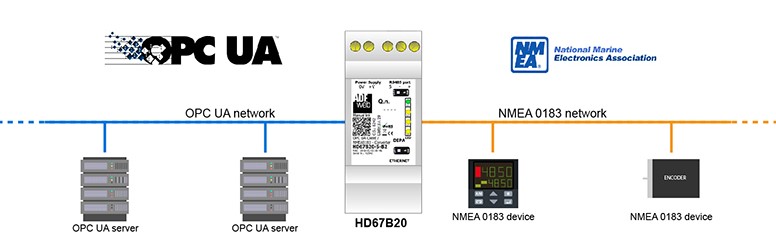

The HD67B20 is an OPC UA Client / NMEA0183 Converter and it allows you to read/write the data from a NMEA0183 net using one or more OPC UA Servers.
The HD67B43 is an OPC UA Server / NMEA0183 Converter and it allows you to read/write the data from one or more NMEA0183 devices (for example fluid level sensors, management of heat and cold, lights...) using one or more OPC UA Clients.
The OPC UA communication can be encrypted, ensuring a SECURE and SAFETY communication.
OPC UA Client / NMEA0183
HD67B20-2-B2
OPC UA Client / NMEA0183- Converter, Port RS232 ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xRS232;1xEthernet | |
|---|---|---|
| NMEA0183 Protocol | RS232 | |
| Ethernet Protocol | OPC UA Client | |
| Data Rates NMEA0183 | Up to 115200 bps | |
| Data Rates OPC UA | 10/100 Base-T Autosensing | |
| NMEA0183 Connector | 3way 5mm terminal block | |
| OPC UA Connector | RJ45 | |
| Power Supply Connector | 2way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 (LxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| SOFTWARE | SW67B20 | |
HD67B20-5-B2
OPC UA Client / NMEA0183 - Converter, Port RS485 ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xRS485; 1xEthernet | |
|---|---|---|
| NMEA0183 Protocol | RS485 | |
| Ethernet Protocol | OPC UA Client | |
| Data Rates NMEA0183 | Up to 115200 bps | |
| Data Rates OPC UA | 10/100 Base-T Autosensing | |
| NMEA0183 Connector | 3way 5mm terminal block | |
| OPC UA Connector | RJ45 | |
| Power Supply Connector | 2way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 (LxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| SOFTWARE | SW67B20 | |
OPC UA Server / NMEA0183
HD67B43-2-B2
OPC UA Server / NMEA0183- Converter, Port RS232 ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xRS232;1xEthernet | |
|---|---|---|
| NMEA0183 Protocol | RS232 | |
| Ethernet Protocol | OPC UA Server | |
| Data Rates NMEA0183 | Up to 115200 bps | |
| Data Rates OPC UA | 10/100 Base-T Autosensing | |
| NMEA0183 Connector | 3way 5mm terminal block | |
| OPC UA Connector | RJ45 | |
| Power Supply Connector | 2way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 (LxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| SOFTWARE | SW67B43 | |
HD67B43-5-B2
OPC UA Server / NMEA0183 - Converter, Port RS485 ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xRS485; 1xEthernet | |
|---|---|---|
| NMEA0183 Protocol | RS485 | |
| Ethernet Protocol | OPC UA Server | |
| Data Rates NMEA0183 | Up to 115200 bps | |
| Data Rates OPC UA | 10/100 Base-T Autosensing | |
| NMEA0183 Connector | 3way 5mm terminal block | |
| OPC UA Connector | RJ45 | |
| Power Supply Connector | 2way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 (LxWxH) | |
| Weight | 200g approx | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
