NMEA 0183 to IEC61850
Part No.: MPADFW-NMEA0183-to-IEC61850
This series of products allows to integrate some IEC61850 devices into a NMEA0183 network.
產品介紹
IEC 61850 / NMEA0183 - Converter
This series of products allows to integrate some IEC61850 devices into a NMEA0183 network.

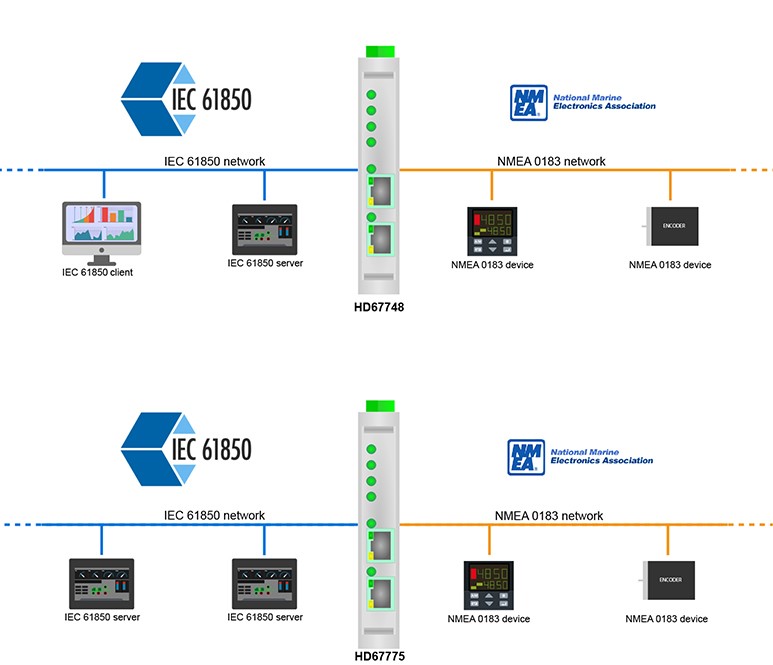

The HD67748-A1 is an IEC 61850 Server / NMEA0183 Converter so you can connect an IEC 61850 Client network (for example a SCADA, HMI etc..) with a NMEA0183 net in order to exchange informations between the nets.
The HD67775-A1 is an IEC 61850 Client / NMEA0183 Converter so you can connect an IEC 61850 Server network (for example a Meters, Switces etc..) with a NMEa0183 net in order to exchange informations between the nets.
IEC 61850 Server / NMEA0183
HD67748-2-A1
IEC 61850 Server / NMEA0183 (RS232) - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 2xEthernet; 1xRS232 | |
|---|---|---|
| NMEA0183 Protocol | NMEA0183 (RS232) | |
| IEC 61850 Protocol | Server | |
| Data Rates NMEA0183 | Up to 115200 bps | |
| Data Rates IEC 61850 | 10/100 Base-T Autosensing | |
| NMEA0183 Connector | 3way 5mm terminal block | |
| IEC 61850 Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |

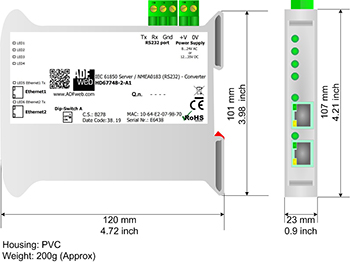

| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67748 | |
HD67748-5-A1
IEC 61850 Server / NMEA0183 (RS485) - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 2xEthernet; 1xRS485 | |
|---|---|---|
| NMEA0183 Protocol | NMEA0183 (RS485) | |
| IEC 61850 Protocol | Server | |
| Data Rates NMEA0183 | Up to 115200 bps | |
| Data Rates IEC 61850 | 10/100 Base-T Autosensing | |
| NMEA0183 Connector | 3way 5mm terminal block | |
| IEC 61850 Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67748 | |
IEC 61850 Client / NMEA0183
HD67775-2-A1
IEC 61850 Client / NMEA0183 (RS232) - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 2xEthernet; 1xRS232 | |
|---|---|---|
| NMEA0183 Protocol | NMEA0183 (RS232) | |
| IEC 61850 Protocol | Client | |
| Data Rates NMEA0183 | Up to 115200 bps | |
| Data Rates IEC 61850 | 10/100 Base-T Autosensing | |
| NMEA0183 Connector | 3way 5mm terminal block | |
| IEC 61850 Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67775 | |
HD67775-5-A1
IEC 61850 Client / NMEA0183 (RS485) - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 2xEthernet; 1xRS485 | |
|---|---|---|
| NMEA0183 Protocol | NMEA0183 (RS485) | |
| IEC 61850 Protocol | Client | |
| Data Rates NMEA0183 | Up to 115200 bps | |
| Data Rates IEC 61850 | 10/100 Base-T Autosensing | |
| NMEA0183 Connector | 3way 5mm terminal block | |
| IEC 61850 Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67775 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
