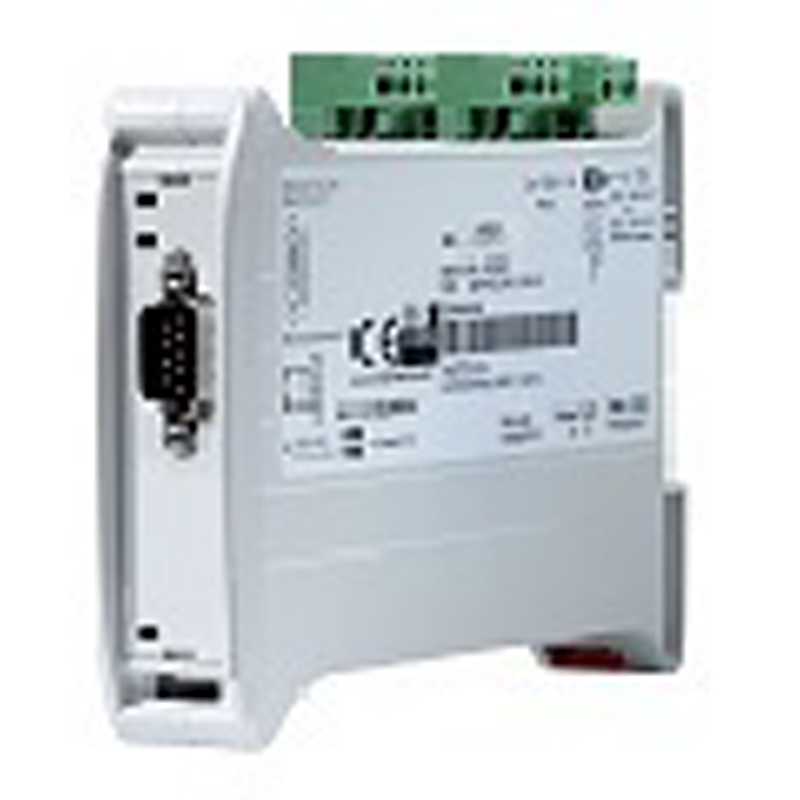

The HD67146-A1 is Modbus Master / Modbus MultiSlave - Converter.
The HD67146-A1 is Modbus Master / Modbus MultiSlave - Converter.
The HD67146-A1 allows to interface some Modbus slave devices with two Modbus Masters simultaneously.

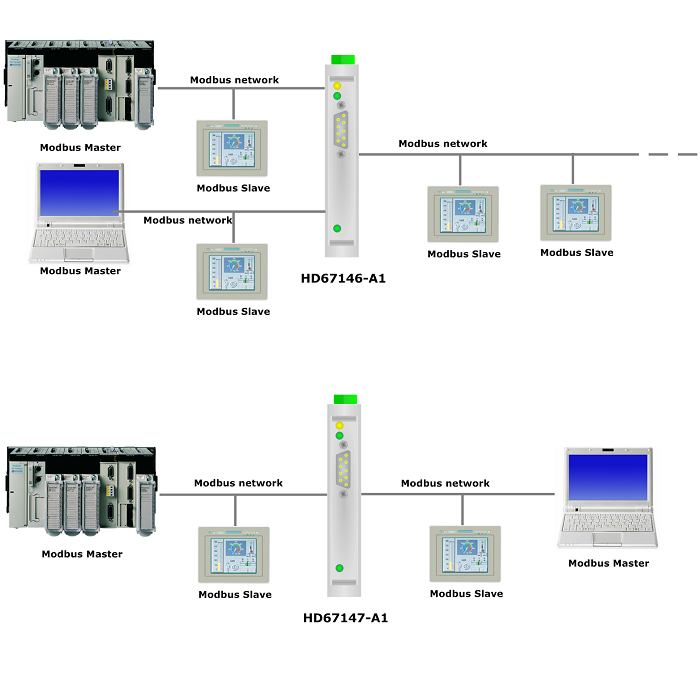

This converter acts as splitter and it allows to interrogate the same Modbus slaves with two Masters without creating conflicts in the bus.
In addition, it isolates electrically the Modbus sides between them.
Internally to the converter, it is possible to configure a filter that allows to define which Modbus slave nodes will be accessible to each connected Modbus Master.

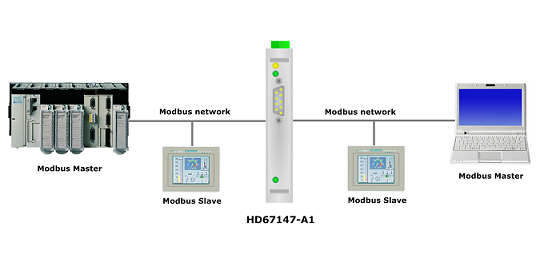

The HD67147-A1 is Modbus Slave / Modbus Slave - Converter, it allows to share informations between two Modbus Masters.
Modbus Master / Modbus MultiSlave - Converter ( Possibility to connect two Modbus Masters to one/more slaves ) ( Housing type: A, Terminal Blocks Connectors )
Ports | 1xRS232; 2xRS485 | |
---|---|---|
Data Rates RS232 | Up to 115200 bps | |
RS232 Connector | D-SUB9 | |
Data Rates RS485 | Up to 115200 bps | |
RS485 Connector | 3way 5mm terminal block | |
Power Supply | 8...19V AC; 8...35V DC | |
Power Supply Connector | 2way 5mm terminal block | |
Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
Dimensions | 120x23x107 (LxWxH) | |
Weight | 200g approx | |
Mechanical Fixing | 35mm DIN Rail montage | |
Software | SW67146 |
Modbus Slave / Modbus lave - Converter ( Housing type: A, Terminal Blocks Connectors )
Ports | 1xRS232; 2xRS485 | |
---|---|---|
Data Rates RS232 | Up to 115200 bps | |
RS232 Connector | D-SUB9 | |
Data Rates RS485 | Up to 115200 bps | |
RS485 Connector | 3way 5mm terminal block | |
Power Supply | 8...19V AC; 8...35V DC | |
Power Supply Connector | 2way 5mm terminal block | |
Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
Dimensions | 120x23x107 (LxWxH) | |
Weight | 200g approx | |
Mechanical Fixing | 35mm DIN Rail montage | |
Software | SW67147 |
Order Code | Description |
---|---|
AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
