Modbus to Modbus ASCII
Part No.: MPADFW-Modbus-to-Modbus-ASCII
This series of products allows to integrate a Modbus network with a Modbus ASCII net.
產品介紹
Modbus RTU / Modbus ASCII
Modbus TCP / Modbus ASCII
This series of products allows to integrate a Modbus network with a Modbus ASCII net.
On Modbus side, it is possible to use Modbus RTU or Modbus TCP protocol.

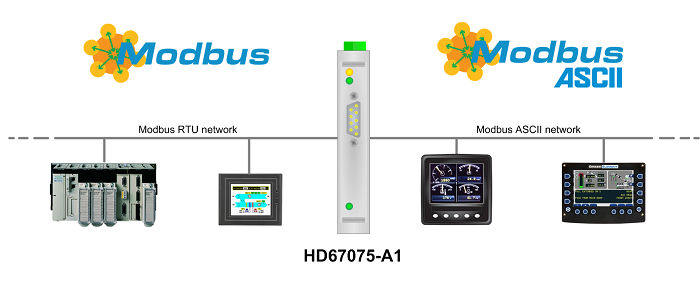

The HD67075 is a Modbus RTU / Modbus ASCII Converter and it allows you to connect a Modbus RTU network with a Modbus ASCII network in order to exchange the informations between the networks.

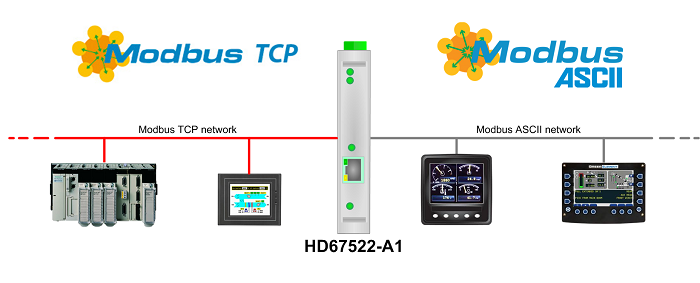

The HD67522 is a Modbus TCP / Modbus ASCII Converter and it allows you to connect a Modbus TCP network with a Modbus ASCII network in order to exchange the informations between the networks.
Example of possible configurations are:
-
as Modbus Slave (RTU/TCP) / Modbus ASCII Master (for example be used to connect a PLC that communicates in Modbus RTU or TCP to one or more slave devices that communicate in Modbus ASCII)
-
as Modbus Master (RTU/TCP) / Modbus ASCII Slave (for example be used to connect a PLC that communicates in ASCII to one or more slave devices that communicate in Modbus RTU or TCP)
Modbus RTU / Modbus ASCII Converters

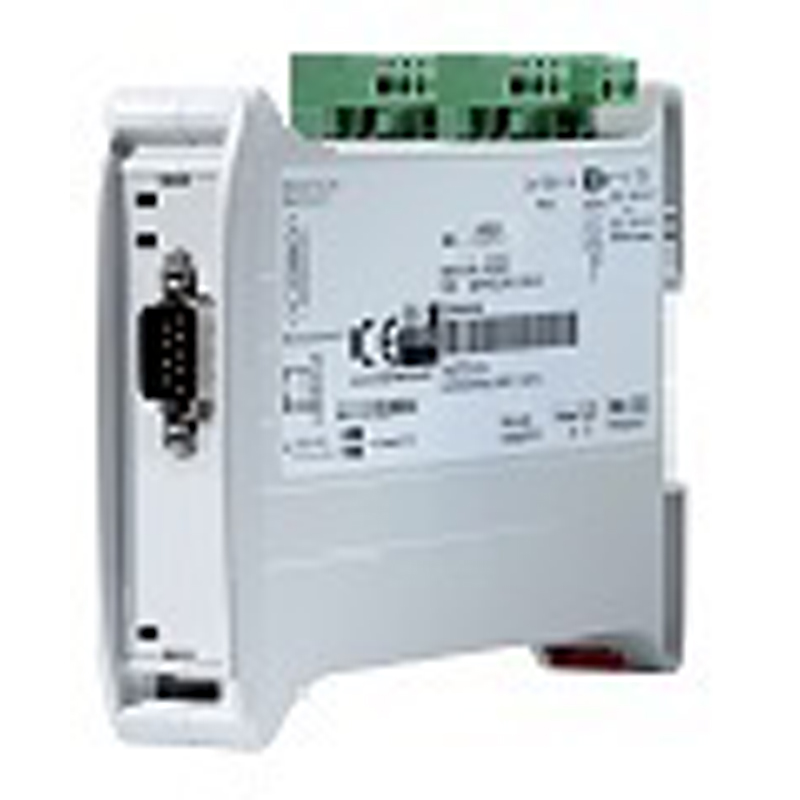

HD67075-A1
Modbus RTU / Modbus ASCII - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 2xRS485; 1xRS232 | |
|---|---|---|
| Data Rates Modbus RTU & ASCII | Up to 115200 bps | |
| Power Supply | 8..19V AC ; 8..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67075 | |
Modbus TCP / Modbus ASCII Converters
HD67522-232-A1
Modbus TCP / Modbus ASCII - Converter ( Housing type: A, Terminal Blocks Connectors, Modbus ASCII port: RS232 )
| Ports | 1xRS232; 1xEthernet | |
|---|---|---|
| Data Rates Modbus ASCII | Up to 115200 bps | |
| Data Rates Modbus TCP | 10/100 Base-T Autosensing | |
| Modbus ASCII Connector | D-SUB 9 Male | |
| Modbus TCP Connector | RJ45 | |
| Power Supply | 8..19V AC ; 8..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67522 | |
HD67522-232-B2
Modbus TCP / Modbus ASCII - Converter ( Housing type: B, Terminal Blocks Connectors, Modbus ASCII port: RS232 )
| Ports | 1xRS232; 1xEthernet | |
|---|---|---|
| Data Rates Modbus ASCII | Up to 115200 bps | |
| Data Rates Modbus TCP | 10/100 Base-T Autosensing | |
| Modbus ASCII Connector | D-SUB 9 Male | |
| Modbus TCP Connector | RJ45 | |
| Power Supply | 8..19V AC ; 8..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 71x60x95 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67522 | |
HD67522-485-A1
Modbus TCP / Modbus ASCII - Converter ( Housing type: A, Terminal Blocks Connectors, Modbus ASCII port: RS485 )
| Ports | 1xRS485; 1xEthernet | |
|---|---|---|
| Data Rates Modbus ASCII | Up to 115200 bps | |
| Data Rates Modbus TCP | 10/100 Base-T Autosensing | |
| Modbus ASCII Connector | 3way 5mm removable screw terminal | |
| Modbus TCP Connector | RJ45 | |
| Power Supply | 8..19V AC ; 8..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67522 | |
HD67522-485-B2
Modbus TCP / Modbus ASCII - Converter ( Housing type: B, Terminal Blocks Connectors, Modbus ASCII port: RS485 )
| Ports | 1xRS485; 1xEthernet | |
|---|---|---|
| Data Rates Modbus ASCII | Up to 115200 bps | |
| Data Rates Modbus TCP | 10/100 Base-T Autosensing | |
| Modbus ASCII Connector | 3way 5mm removable screw terminal | |
| Modbus TCP Connector | RJ45 | |
| Power Supply | 8..19V AC ; 8..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 71x60x95 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67522 | |
HD67522-422-A1
Modbus TCP / Modbus ASCII - Converter ( Housing type: A, Terminal Blocks Connectors, Modbus ASCII port: RS422 )
| Ports | 1xRS422; 1xEthernet | |
|---|---|---|
| Data Rates Modbus ASCII | Up to 115200 bps | |
| Data Rates Modbus TCP | 10/100 Base-T Autosensing | |
| Modbus ASCII Connector | 3way 5mm removable screw terminal | |
| Modbus TCP Connector | RJ45 | |
| Power Supply | 8..19V AC ; 8..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67522 | |
Accessories
| Order Code | Description |
|---|---|
| AC34107 | Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.5 m |
| AC34114 | Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m |
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
