Modbus to KNX
Part No.: MPADFW-Modbus-to-KNX
This series of products allows to integrate a Modbus network with a KNX net.
產品介紹

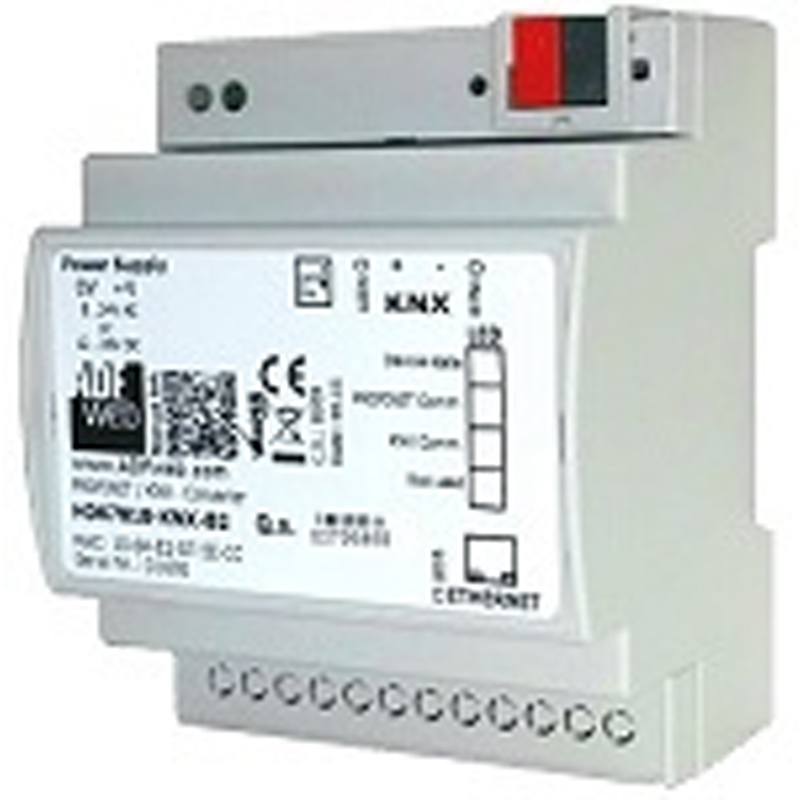

Modbus / KNX - Converter
This series of products allows to integrate a Modbus network with a KNX net.
The HD67812 is a Modbus Master / KNX Converter and it allows you to connect some Modbus Slaves with a KNX net (for example light switches, actuators…).

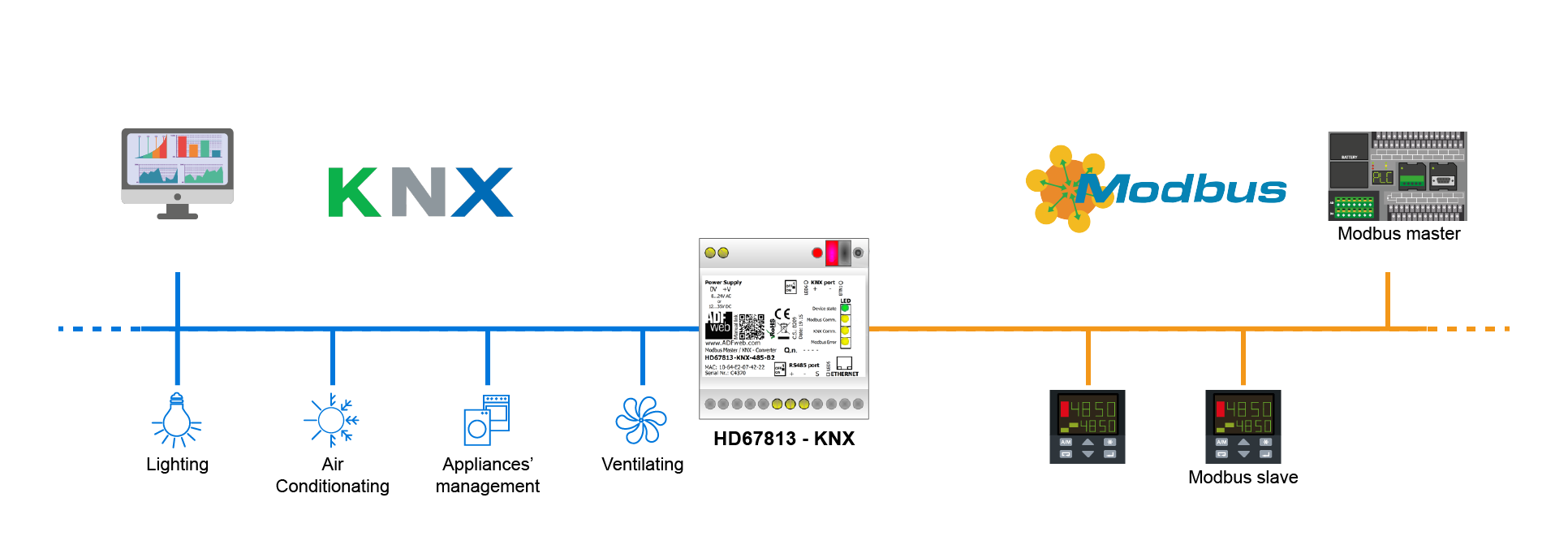

The HD67813 is a Modbus Slave / KNX Converter and it allows you to connect a Modbus Master net (for example a HMI, a SCADA System…) with a KNX net (for example light switches, actuators…) in order to exchange the informations between the networks.
This converters are very easy to configure and allows you to interface a Modbus system with the KNX world.
On KNX side you can connect all the common KNX devices such as temperature sensors, shutters, light switches, actuators, alarms etc.
In all devices there is the possibility to have Modbus on RS232 or RS485 in relation to the order code.
Modbus / KNX series
HD67812-KNX-232-B2
Modbus 232 Master / KNX - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX; 1xRS232 | |
|---|---|---|
| KNX Protocol | KNX TP | |
| Modbus Protocol | Modbus 232 Master | |
| Data Rates KNX | 9600 bit/s | |
| Data Rates Modbus | Up to 115200 bit/s | |
| KNX Connector | KNX Bus connector | |
| Modbus Connector | 3way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67812 | |
HD67812-KNX-485-B2
Modbus 485 Master / KNX - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX; 1xRS485 | |
|---|---|---|
| KNX Protocol | KNX TP | |
| Modbus Protocol | Modbus 485 Master | |
| Data Rates KNX | 9600 bit/s | |
| Data Rates Modbus | Up to 115200 bit/s | |
| KNX Connector | KNX Bus connector | |
| Modbus Connector | 3way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67812 | |
HD67813-KNX-232-B2
Modbus 232 slave/ KNX - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX; 1xRS232 | |
|---|---|---|
| KNX Protocol | KNX TP | |
| Modbus Protocol | Modbus 232 slave | |
| Data Rates KNX | 9600 bit/s | |
| Data Rates Modbus | Up to 115200 bit/s | |
| KNX Connector | KNX Bus connector | |
| Modbus Connector | 3way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67813 | |
HD67813-KNX-485-B2
Modbus 485 slave/ KNX - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX; 1xRS485 | |
|---|---|---|
| KNX Protocol | KNX TP | |
| Modbus Protocol | Modbus 485 slave | |
| Data Rates KNX | 9600 bit/s | |
| Data Rates Modbus | Up to 115200 bit/s | |
| KNX Connector | KNX Bus connector | |
| Modbus Connector | 3way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67813 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34-AB1TP | KNX Power Supply - KNX out 640mA - in 240VAC |
| AC34-AG1TP | KNX Power Supply - KNX out 640mA + AUX out 30VDC - in 240VAC |
