Modbus to DeviceNet

Part No.: MPADFW-Modbus-to-DeviceNet
This series of products allows to integrate a DeviceNet network with a Modbus net.

產品介紹

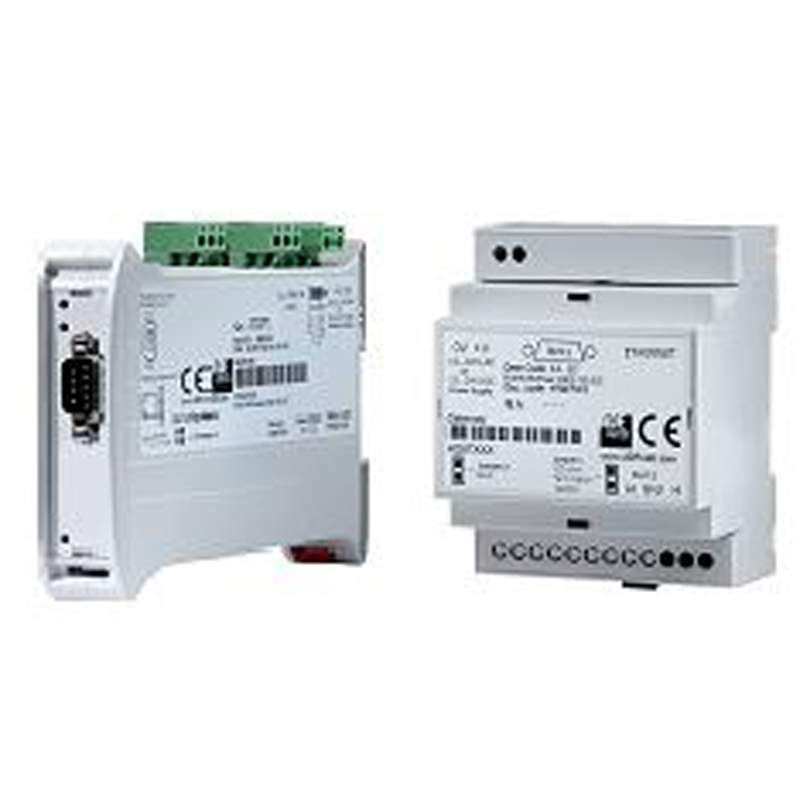

DeviceNet / Modbus - Converter

This series of products allows to integrate a DeviceNet network with a Modbus net.

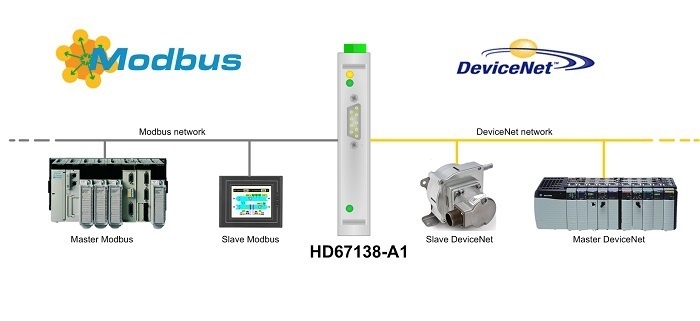

The HD67138 is a DeviceNet Slave / Modbus Slave Converter and it allows you to connect a DeviceNet Master with a Modbus Master (for example a PLC, HMI...) in order to exchange the informations between the networks.

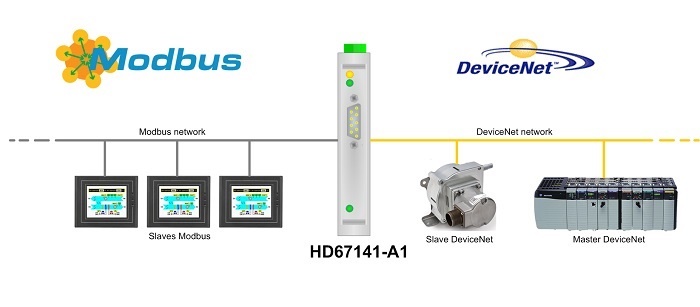

The HD67141 is a DeviceNet Slave / Modbus Master Converter and it allows you to connect some Modbus slaves with a DeviceNet Master (like an ABB PLC ).

The HD67151 is a DeviceNet Master / Modbus Slave Converter and it allows you to connect a DeviceNet network with a Modbus Master (for example a PLC, HMI...) in order to exchange the informations between the networks.


Series Modbus Slave from/to DeviceNet Slave



HD67138-A1

DeviceNet Slave / Modbus Slave - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 1xRS232; 1xRS485; 1xDeviceNet
Connector Terminal Block
Data Rates Modbus Up to 115200 bps
Power Supply 8...19V AC ; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67138



HD67138-B2

DeviceNet Slave / Modbus Slave - Converter ( Housing type: B, Terminal Blocks Connectors )





Ports 1xRS232; 1xRS485; 1xDeviceNet
Connector Terminal Block
Data Rates Modbus Up to 115200 bps
Power Supply 8...19V AC ; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 71x60x95 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67138

Series Modbus Master from/to DeviceNet Slave



HD67141-A1

DeviceNet Slave / Modbus Master - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 1xRS232; 1xRS485; 1xDeviceNet
Connector Terminal Block
Data Rates Modbus Up to 115200 bps
Power Supply 8...19V AC ; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67141



HD67141-B2

DeviceNet Slave / Modbus Slave - Converter ( Housing type: B, Terminal Blocks Connectors )





Ports 1xRS232; 1xRS485; 1xDeviceNet
Connector Terminal Block
Data Rates Modbus Up to 115200 bps
Power Supply 8...19V AC ; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 71x60x95 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67141

Series Modbus Slave from/to DeviceNet Master



HD67151-A1

DeviceNet Master / Modbus Slave - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 1xRS232; 1xRS485; 1xDeviceNet
Connector Terminal Block
Data Rates Modbus Up to 115200 bps
Power Supply 8...19V AC ; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67151



HD67151-B2

DeviceNet Master / Modbus Slave - Converter ( Housing type: B, Terminal Blocks Connectors )





Ports 1xRS232; 1xRS485; 1xDeviceNet
Connector Terminal Block
Data Rates Modbus Up to 115200 bps
Power Supply 8...19V AC ; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 71x60x95 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67151





Accessories


Order Code Description
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC
AC34107 Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m
AC34114 Null Modem Cable ,Fem/Fem, DSub 9 Pin, 5 m

Benefits

  • Software for easy configurator
  • Designed for serius use
  • Very easy to configure
  • Low cost
  • Rail din mountable
  • Wide supply input range
  • Galvanic isolation
  • Industrial temperature range:  -30°C / 70°C (-22°F / 158°F)
