Modbus to CAN

Part No.: MPADFW-Modbus-to-CAN

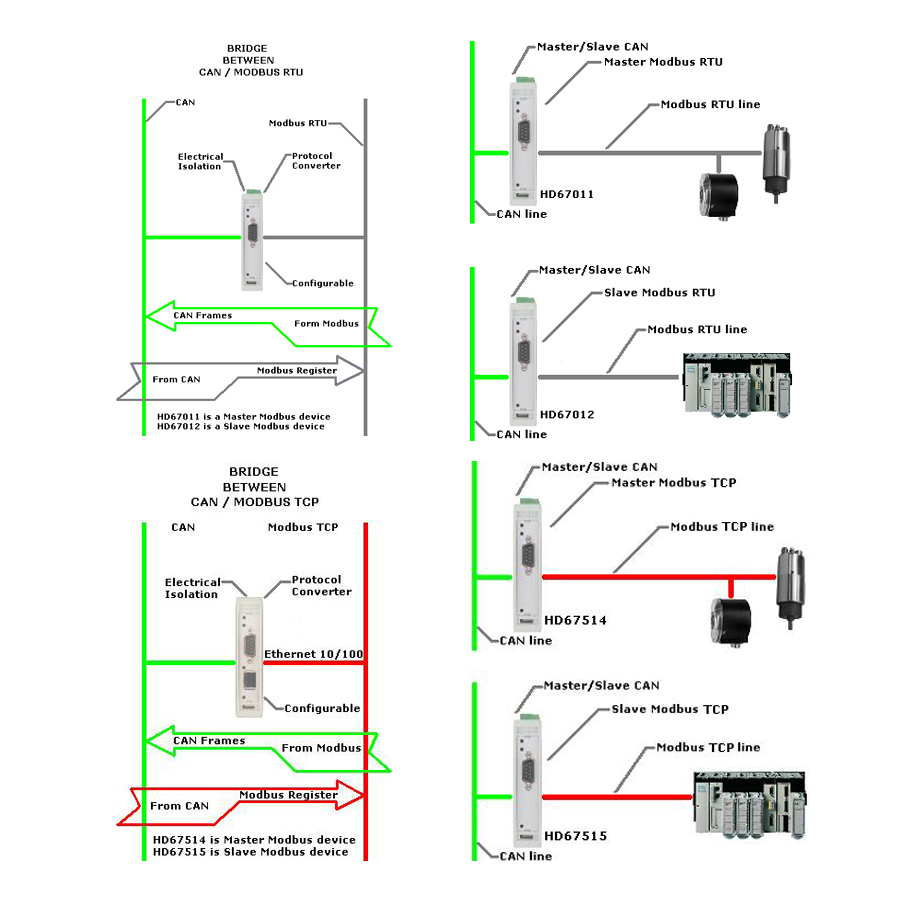

This series of products allows to integrate a CAN network with a Modbus net.

產品介紹

CAN / Modbus - Converter

This series of products allows to integrate a CAN network with a Modbus net.

The HD67011 is a CAN / Modbus Master Converter and it allows you to connect some Modbus Slaves with an existing CAN network.
The HD67511 is CAN / Modbus Master Converter too. It can manage more traffic on Modbus and CAN side and its hardware is more powerful than HD67011.

The HD67012 is a CAN / Modbus Slave Converter and it allows you to connect a CAN network with a Modbus Master (for example a PLC, HMI...) in order to exchange the informations between the networks.

The HD67514 is a CAN / Modbus TCP Master Converter and it allows you to connect some Modbus TCP Slaves with an existing CAN network.

The HD67515 is a CANopen / Modbus TCP Slave Converter and it allows you to connect a CAN network with a Modbus TCP Master (for example a PLC, SCADA system...) in order to exchange informations between the networks.

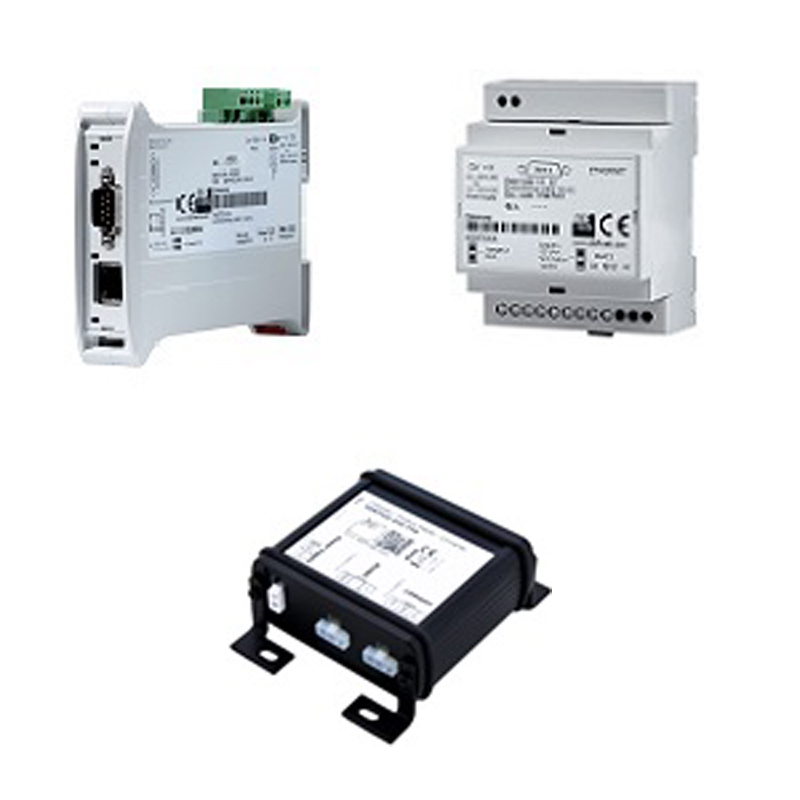

They are available in two Housing types: Type A and Type B (see "View" below).

The converters are available also in another version, ideal for STRONG applications.

The corresponding models are:

  • HD67411 - CAN / Modbus Master, STRONG Converter
  • HD67412 - CAN / Modbus Slave, STRONG Converter

These converters are contained in a metal housing, so it is STRONG and RESISTANT to the vibrations and shocks. The electrical parts are with triple isolation of 4000 V between CAN/Modbus - CAN/Power Supply - Modbus/Power Supply.
Particularly suitable for the installation on cars, trains, boats, industrial sector and in fragile environments.
Two versions, one with Varnished PCB and one with Resined PCB.
Varnished treatment gives dust and humidity protection, Resined treatment gives high water, dust and vibrations protection.
Excellent range of temperature resistance from -40 C to +105 C, features required by AUTOMOTIVE applications.



Series CAN from/to Modbus Master



HD67011

CAN / Modbus Master - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 1xCAN2.0; 1xRS485; 1xRS232
CAN 2.0 Connector Terminal block
RS485 Connector Terminal block
RS232 Connector D-SUB9
Data Rates CANopen From 10K to 1Mbps
Data Rates Modbus Up to 115 Kbps
Power Supply 10...19V AC ; 10...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail mountage



HD67511-A1

CAN / Modbus Master - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 1xCAN; 1xRS485
CAN Connector 3way 5mm terminal block
Modbus Connector 3way 5mm terminal block
Data Rates CAN Up to 1 Mbps
Data Rates Modbus Up to 115200 bps
Power Supply 8..24V AC; 12..35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail mountage
Software SW67511



CAN – Modbus Master Converter

Products supplied with metal housing (Housing type: E), are STRONG and RESISTANT to mechanical stress (such as vibration and shock), electrical parts with a triple isolation 4 kV between CAN/RS485 - CAN/Power Supply – RS485/Power Supply.

Particularly suitable for installation in cars, trucks, trains, boats, in the industrial sector and in fragile environments. .

Two versions, one with a coating of the PCB (suffix code V) that ensures IP65 and another encapsulation with resin (suffix code R) which gives to device the high performance safety and insulation for wet environments (IP67) and to resist to noise. .

This product can be mounted on any type of surface (horizontal, vertical and oblique) with four fixing lugs, also you can choose the type of connector, Mini-Fit or Superseal 1.5. .

Excellent range of temperature resistance from -40 ° C to +105 ° C, features required by AUTOMOTIVE.



HD67411-E4V

CAN / Modbus Master - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )





Ports 1xCAN; 1xRS45
Data Rates CAN Up to 1000k bps
Data Rates Modbus Up to 115200 bps
CAN Connector 3way Mini-Fit®
RS485 Connector 3way Mini-Fit®
Power Supply Connector 2way Mini-Fit®
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67411



HD67411-E4R

CAN / Modbus Master - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )





Ports 1xCAN; 1xRS45
Data Rates CAN Up to 1000k bps
Data Rates Modbus Up to 115200 bps
CAN Connector 3way Mini-Fit®
RS485 Connector 3way Mini-Fit®
Power Supply Connector 2way Mini-Fit®
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67411



HD67411-E7V

CAN / Modbus Master - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )





Ports 1xCAN; 1xRS45
Data Rates CAN Up to 1000k bps
Data Rates Modbus Up to 115200 bps
CAN Connector 3way SuperSeal 1.5
RS485 Connector 3way SuperSeal 1.5
Power Supply Connector 2way SuperSeal 1.5
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40ºC/+105ºC (-40ºF/+221ºF)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67411



HD67411-E7R

CAN / Modbus Master - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )





Ports 1xCAN; 1xRS45
Data Rates CAN Up to 1000k bps
Data Rates Modbus Up to 115200 bps
CAN Connector 3way SuperSeal 1.5
RS485 Connector 3way SuperSeal 1.5
Power Supply Connector 2way SuperSeal 1.5
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40ºC/+105ºC (-40ºF/+221ºF)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67411



Series CAN from/to Modbus slave



HD67012

CAN / Modbus Slave - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 1xCAN2.0; 1xRS485; 1xRS232
CAN 2.0 Connector Terminal block
RS485 Connector Terminal block
RS232 Connector D-SUB9
Data Rates CANopen
From 10K to 1Mbps
Data Rates Modbus Up to 115 Kbps
Power Supply 10...19V AC ; 10...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail mountage



CAN – Modbus Slave Converter

Products supplied with metal housing (Housing type: E), are STRONG and RESISTANT to mechanical stress (such as vibration and shock), electrical parts with a triple isolation 4 kV between CAN/RS485 - CAN/Power Supply – RS485/Power Supply.

Particularly suitable for installation in cars, trucks, trains, boats, in the industrial sector and in fragile environments. .

Two versions, one with a coating of the PCB (suffix code V) that ensures IP65 and another encapsulation with resin (suffix code R) which gives to device the high performance safety and insulation for wet environments (IP67) and to resist to noise. .

This product can be mounted on any type of surface (horizontal, vertical and oblique) with four fixing lugs, also you can choose the type of connector, Mini-Fit or Superseal 1.5. .

Excellent range of temperature resistance from -40 ° C to +105 ° C, features required by AUTOMOTIVE.



HD67412-E4V

CAN / Modbus Slave - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )





Ports 1xCAN; 1xRS45
Data Rates CAN Up to 1000k bps
Data Rates Modbus Up to 115200 bps
CAN Connector 3way Mini-Fit®
RS485 Connector 3way Mini-Fit®
Power Supply Connector
2way Mini-Fit®
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67412



HD67412-E4R

CAN / Modbus Slave - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )





Ports 1xCAN; 1xRS45
Data Rates CAN Up to 1000k bps
Data Rates Modbus Up to 115200 bps
CAN Connector 3way Mini-Fit®
RS485 Connector 3way Mini-Fit®
Power Supply Connector 2way Mini-Fit®
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67412



HD67412-E7V

CAN / Modbus Slave - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )





Ports 1xCAN; 1xRS45
Data Rates CAN Up to 1000k bps
Data Rates Modbus Up to 115200 bps
CAN Connector 3way SuperSeal 1.5
RS485 Connector 3way SuperSeal 1.5
Power Supply Connector 2way SuperSeal 1.5
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67412



HD67412-E7R

CAN / Modbus Slave - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )





Ports 1xCAN; 1xRS45
Data Rates CAN Up to 1000k bps
Data Rates Modbus Up to 115200 bps
CAN Connector 3way SuperSeal 1.5
RS485 Connector 3way SuperSeal 1.5
Power Supply Connector 2way SuperSeal 1.5
Power Supply
10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67412



Series CAN from/to Modbus TCP Master



HD67514-A1

CAN / Modbus TCP Master - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 1xCAN; 1xEthernet
CAN 2.0 Connector Terminal block
Ethernet Connector RJ45
Data Rates CAN From 10K to 1Mbps
Data Rates Modbus 10/100 MHz Autosensing
Power Supply 8...19V AC ; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail mountage
Software SW67514



HD67514-B2

CAN / Modbus TCP Master - Converter ( Housing type: B, Terminal Blocks Connectors )





Ports 1xCAN; 1xEthernet
CAN 2.0 Connector Terminal block
Ethernet Connector RJ45
Data Rates CAN From 10K to 1Mbps
Data Rates Modbus 10/100 MHz Autosensing
Power Supply 8...19V AC ; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 71x60x95 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail mountage
Software SW67514



Series CAN from/to Modbus TCP Slave



HD67515-A1

CAN / Modbus TCP Slave - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 1xCAN; 1xEthernet
CAN 2.0 Connector Terminal block
Ethernet Connector RJ45
Data Rates CAN From 10K to 1Mbps
Data Rates Modbus 10/100 MHz Autosensing
Power Supply 8...19V AC ; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail mountage
Software SW67514



HD67515-B2

CAN / Modbus TCP Slave - Converter ( Housing type: B, Terminal Blocks Connectors )





Ports 1xCAN; 1xEthernet
CAN 2.0 Connector Terminal block
Ethernet Connector RJ45
Data Rates CAN From 10K to 1Mbps
Data Rates Modbus 10/100 MHz Autosensing
Power Supply 8...19V AC ; 8...35V DC
OperatingTemperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 71x60x95 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail mountage
Software SW67514





Accessories


Order Code Description
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC
AC34107 Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m
AC34114 Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m



Benefits

  • Software for easy configurator
  • Designed for serius use
  • Very easy to configure
  • Low cost
  • Rail din mountable
  • Galvanic isolation
  • Industrial temperature range:  -30° / 70° (-22°F / 158°F)
