Modbus to 232/ 422/ 485

Part No.: MPADFW-Modbus-to-232-422-485
The RS232/RS422/RS485 / Modbus Converters allows to interface a Modbus device with one or more generic Serial devices.

產品介紹

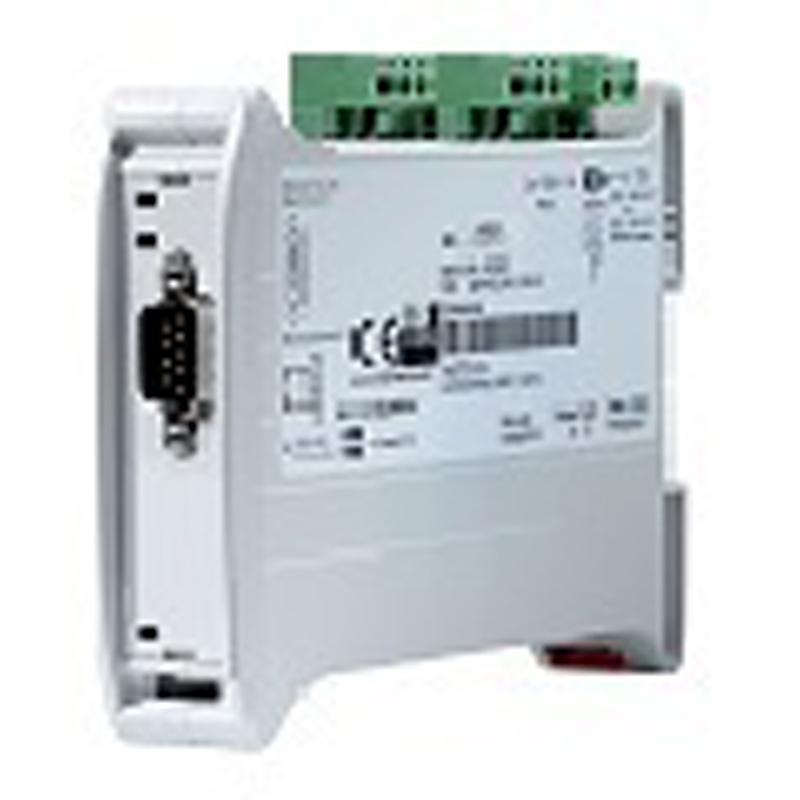

RS232/RS422/RS485 / Modbus - Converter

The RS232/RS422/RS485 / Modbus Converters allows to interface a Modbus device with one or more generic Serial devices (like printers, barcode scanners, balance and so on).

The converter is bi-directional and allows to read the data from serial side and write the commands if necessary.

The serial messages and the commands to send will be completely configurable from Modbus side and it will be possible the interface with all the serial devices not-based on standard serial protocol.

Modbus protocol can be over serial (Modbus RTU) or over Ethernet (Modbus TCP) in relation to the order code.

There are also two differnts order codes in relation of the type of the serial ports:

RS232/RS485:

  • HD67501-A1: RS232/RS485 / Modbus - Converter
  • HD67521-A1: RS232/RS485 / Modbus TCP - Converter

RS232/RS422:

  • HD67501-422-A1: RS232/RS422 / Modbus - Converter
  • HD67521-422-A1: RS232/RS422 / Modbus TCP - Converter

Serial / Modbus series



HD67501-A1

RS232/RS485 / Modbus - Converter ( Housing type: A, Terminal Blocks Connectors )




Ports 1xEthernet; 2xRS485; 1xRS232
RS232 Connector D-SUB9
RS485 Connector Terminal block
Ethernet Connector RJ45
Data Rates RS232 Up to 115200 bps
Data Rates RS485 Up to 115200 bps
Power Supply 8...19V AC ; 8...35V DC
Power Supply Connector 2way 5mm removable screw terminal
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 (DxWxH)
Weight
200g approx
Mechanical Fixing DIN Rail montage
Software SW67501



HD67501-422-A1

RS232/RS422 / Modbus - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 1xEthernet; 2xRS422; 1xRS232
RS232 Connector D-SUB9
RS485 Connector Terminal block
Ethernet Connector RJ45
Data Rates RS232 Up to 115200 bps
Data Rates RS422 Up to 115200 bps
Power Supply 8...19V AC ; 8...35V DC
Power Supply Connector 2way 5mm removable screw terminal
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67501



HD67521-A1

RS232/RS485 / Modbus TCP - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 1xEthernet; 1xRS485; 1xRS232
RS232 Connector D-SUB9
RS485 Connector Terminal block
Ethernet Connector RJ45
Data Rates RS232 Up to 115200 bps
Data Rates RS485 Up to 115200 bps
Power Supply 8...19V AC ; 8...35V DC
Power Supply Connector 2way 5mm removable screw terminal
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67521



HD67521-422-A1

RS232/RS422 / Modbus TCP - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 1xEthernet; 1xRS422; 1xRS232
RS232 Connector D-SUB9
RS422 Connector Terminal block
Ethernet Connector RJ45
Data Rates RS232 Up to 115200 bps
Data Rates RS485 Up to 115200 bps
Power Supply 8...19V AC ; 8...35V DC
Power Supply Connector 2way 5mm removable screw terminal
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67521



Modbus RTU / Modbus ASCII series



HD67075-A1

Modbus RTU / Modbus ASCII - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 2xRS485; 1xRS232
Data Rates Modbus RTU & ASCII Up to 115200 bps
Power Supply 8..19V AC ; 8..35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67075



Series Modbus TCP Slave / Modbus Master



HD67507-A1

Modbus TCP Slave / Modbus Master - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 1xEthernet; 1xRS485; 1xRS232
Data Rates Modbus Up to 115200 bps
Power Supply 8...19V AC ; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67507



HD67508-A1-485

Modbus TCP Slave / Modbus Master - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )( Modbus Master on RS485 )





Ports 1xRS485, 2xEthernet
Data Rates Serial Up to 115200bps
Data Rates Ethernet 10/100 Base-T Autosensing
Serial Connector 3way 5mm removable screw terminal
Ethernet Connector RJ45
Power Supply Connector 2way 5mm removable screw terminal
Power Supply 8..24V AC ; 12..35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67508



Series Modbus Slave / Modbus TCP Master



HD67510-A1

Modbus Slave / Modbus TCP Master - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 1xEthernet; 1xRS485; 1xRS232
Data Rates Modbus TCP 10/100 Mhz autosensing
Data Rates Modbus RTU up to 115200 bps
Max Distance Modbus TCP: 100m; Modbus RTU:1200m @ 115200 bps
Power Supply 8...19V AC ; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67510



HD67516-A1-485

Modbus Slave / Modbus TCP Master - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )( Modbus Slave on RS485 )





Ports 1xRS485, 2xEthernet
Data Rates Serial Up to 115200bps
Data Rates Ethernet 10/100 Base-T Autosensing
Serial Connector 3way 5mm removable screw terminal
Ethernet Connector RJ45
Power Supply Connector 2way 5mm removable screw terminal
Power Supply 8..24V AC ; 12..35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67516



Accessories


Order Code Description
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC
AC34107 Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m
AC34114 Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m
AC34131 Patch Cross Cable Cat6 2 Meters



Benefits

  • RS232/485 Selection
  • Support Modbus RTU and generic data mode
  • Software for easy configurator
  • Designed for serius use
  • Very easy to configure
  • Low cost
  • Rail din mountable
  • Wide supply input range
  • Galvanic isolation
  • Industrial temperature range: -30°C / 70°C (-22°F / 158°F)
