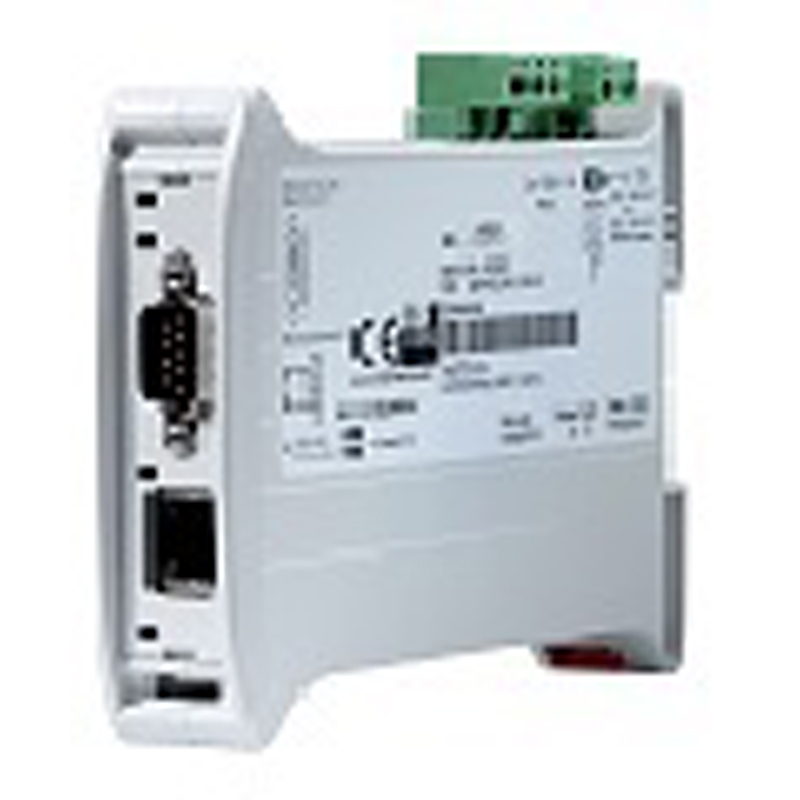

Modbus: Slave Modbus CANopen
Part No.: MPADFW-Modbus-Slave-Modbus-CANopen
This device convert the CANopen protocol into Modbus RTU.
產品介紹
Gateway / Bridge

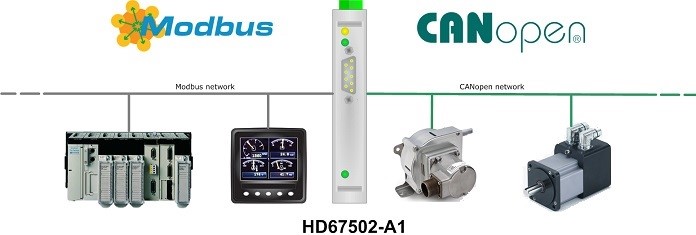

CANopen to Modbus RTU slave
This device convert the CANopen protocol into Modbus RTU.
It is a gateway/adapter CANopen into Modbus RTU and vice-versa.
In this device it is possible to configure at maximum 64 RPDO and 32 TPDO.
It is possible to select from five Modbus Protocol types: Modbus RTU, Modbus ASCII, JBUS, Binary and ASCII.
HD67502
CANopen / Modbus Slave - Converter ( High capability converter: 64 RPDO, 32 TPDO ) ( Housing type: A,Termina Blocks Connectors )
| Ports | 1xCANopen; 1xRS485; 1xRS232 | |
|---|---|---|
| Data Rates CANopen | Up to 1Mbps | |
| Data Rates Modbus | Up to 115200 bps | |
| CANopen Connector | Terminal block | |
| RS485 Connector | Terminal block | |
| RS232 Connector | D-SUB9 | |
| Power Supply | 8...19V AC ; 8...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67502 | |
| Ports | 1xCANopen; 1xRS485; 1xRS232 |
|---|---|
| Data Rates CANopen | Up to 1000 bps |
| Data Rates Modbus | Up to 115200 bps |
| CANopen Connector | Terminal block |
| RS485 Connector | Terminal block |
| RS232 Connector | D-SUB9 |
| Power Supply | 12-24VDC; 12/24VAC 50/60Hz |
| Operating Temperature | -30° to +70° (-22°F to +158°F) |
| Dimensions | 120x23x107 or 71x60x95 (DxWxH) |
| Weight | 200g approx |
| Mechanical Fixing | DIN Rail montage |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34107 | Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m |
| AC34114 | Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m |
