Modbus TCP to PROFINET
Part No.: MPADFW-Modbus-TCP-to-PROFINET
This series of products allows to integrate a PROFINET network with a Modbus TCP net.
產品介紹

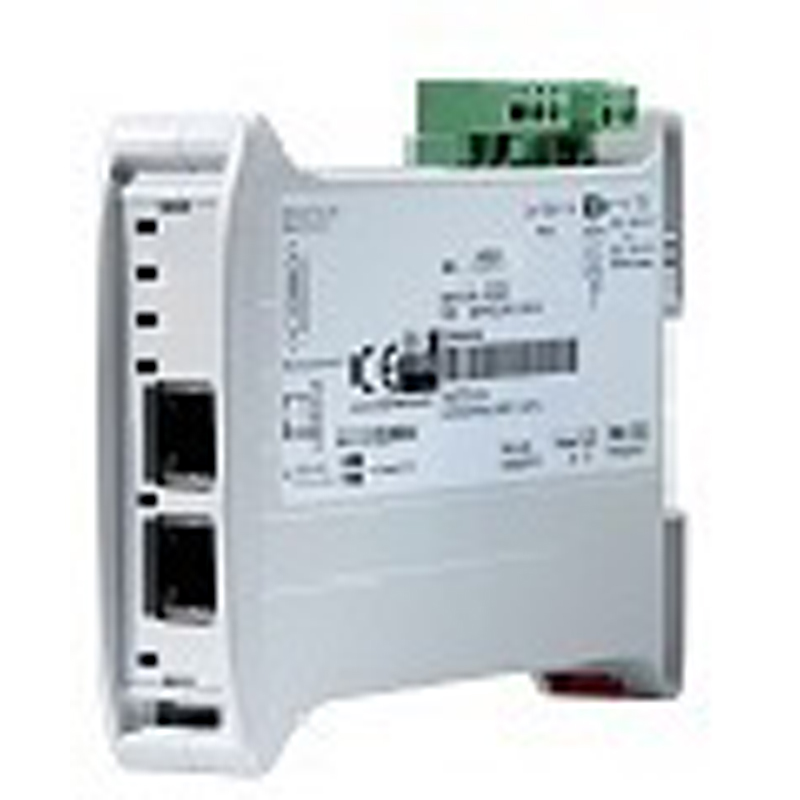

PROFINET / Modbus TCP Converter
This series of products allows to integrate a PROFINET network with a Modbus TCP net.

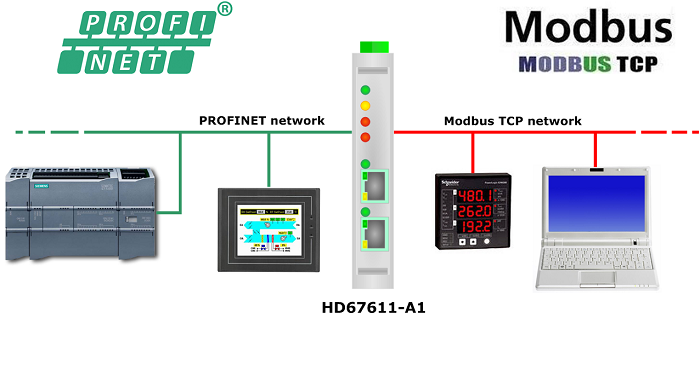

The HD67611 is a PROFINET / Modbus TCP Master Converter and it allows you to connect an PROFINET net (for example a SIEMENS PLC..) with some Modbus TCP Slaves devices.

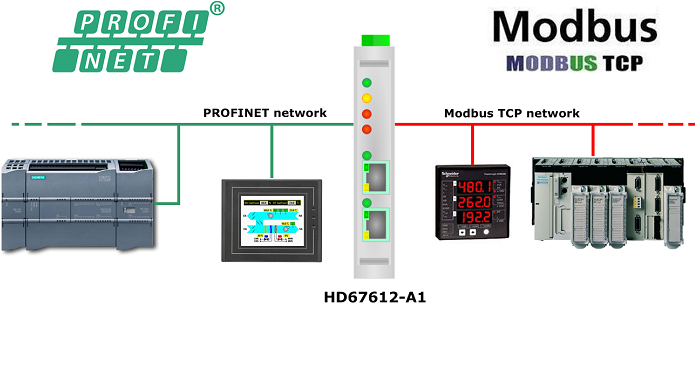

The HD67612 is a PROFINET / Modbus TCP Slave Converter and it allows you to connect a PROFINET net (for example a SIEMENS PLC..) with a Modbus TCP Master net (for example a PLC, SCADA System..) in order to exchange the informations between the networks.
The HD67B76 is a PROFINET Master / Modbus TCP Slave Converter and it allows you to connect a PROFINET net with a Modbus TCP Master net (for example a PLC, SCADA System..) in order to exchange the informations between the networks.
In all devices are installed 2 LAN ports with RJ45 connectors that allow you to not use an external switch and extend the PROFINET line.
Series PROFINET / Modbus TCP
HD67611-A1
PROFINET / Modbus TCP Master - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )
| Ports | 2xEthernet | |
|---|---|---|
| Ethernet Protocol (1) | PROFINET | |
| Ethernet Protocol (2) | Modbus TCP Master | |
| Data Rates PROFINET | 10/100 Base-T Autosensing | |
| Data Rates Modbus TCP | 10/100 Base-T Autosensing | |
| PROFINET Connector | RJ45 | |
| Ethernet Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67611 | |
HD67612-A1
PROFINET / Modbus TCP Slave - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )
| Ports | 2xEthernet | |
|---|---|---|
| Ethernet Protocol (1) | PROFINET | |
| Ethernet Protocol (2) | Modbus TCP Slave | |
| Data Rates PROFINET | 10/100 Base-T Autosensing | |
| Data Rates Modbus TCP | 10/100 Base-T Autosensing | |
| PROFINET Connector | RJ45 | |
| Ethernet Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67612 | |
HD67B76-A1
PROFINET Master/ Modbus TCP Slave - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )
| Ports | 2xEthernet | |
|---|---|---|
| Ethernet Protocol (1) | PROFINET Master | |
| Ethernet Protocol (2) | Modbus TCP Slave | |
| Data Rates PROFINET | 10/100 Base-T Autosensing | |
| Data Rates Modbus TCP | 10/100 Base-T Autosensing | |
| PROFINET Connector | RJ45 | |
| Ethernet Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67612 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
