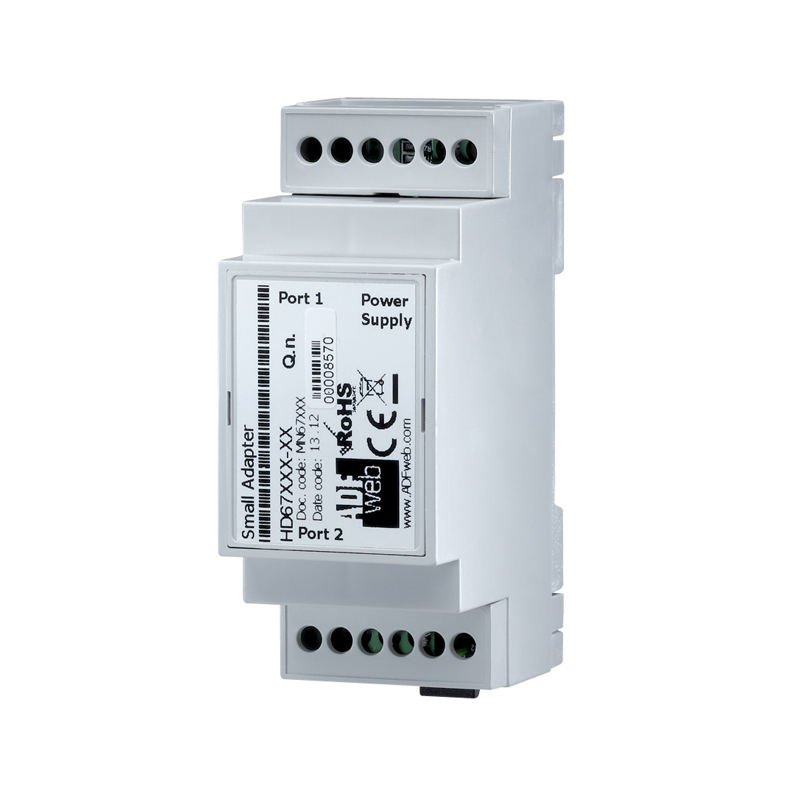

Modbus TCP to OPC UA
Part No.: MPADFW-Modbus-TCP-to-OPC-UA
This series of products allows to integrate an OPC UA network with a Modbus TCP network.
產品介紹
OPC UA / Modbus TCP - Converter
This series of products allows to integrate an OPC UA network with a Modbus TCP network.
The HD67B10 is an OPC UA Client / Modbus TCP Slave Converter and it allows you to read/write the data from one or more OPC UA Servers using a Modbus TCP Master (like PLC, PC etc).
The HD67B29 is an OPC UA Server / Modbus TCP Master Converter and it allows you to read/write the data from one or more Modbus TCP slaves (like barcode scanners, printers, RFID, weight scales etc) using one or more OPC UA Clients.
The HD67B30 is an OPC UA Server / Modbus TCP Slave Converter and it allows you to interface a Modbus TCP Master (like a PLC, PC etc) with one or more OPC UA Clients in order to exchange the informations between the networks.
The OPC UA communication can be encrypted, ensuring a SECURE and SAFETY communication.
OPC UA Client / Modbus TCP
HD67B10-B2
OPC UA Client / Modbus TCP Slave - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 2xEthernet | |
|---|---|---|
| Ethernet Protocol (1) | Modbus TCP Slave | |
| Ethernet Protocol (2) | OPC UA Client | |
| Data rates Modbus TCP | 10/100 Base-T Autosensing | |
| Data Rates OPC UA | 10/100 Base-T Autosensing | |
| Modbus TCP Connector | RJ45 | |
| OPC UA Connector | RJ45 | |
| Power Supply Connector | 2way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 (LxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| SOFTWARE | SW67B10 | |
OPC UA Server / Modbus TCP
HD67B29-B2
OPC UA Server / Modbus TCP Master - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 2xEthernet | |
|---|---|---|
| Ethernet Protocol (1) | Modbus TCP Master | |
| Ethernet Protocol (2) | OPC UA Server | |
| Data Rates Modbus TCP | 10/100 Base-T Autosensing | |
| Data Rates OPC UA | 10/100 Base-T Autosensing | |
| Modbus TCP Connector | RJ45 | |
| OPC UA Connector | RJ45 | |
| Power Supply Connector | 2way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 (LxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| SOFTWARE | SW67B29 | |
HD67B30-B2
OPC UA Server / Modbus TCP Slave - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 2xEthernet | |
|---|---|---|
| Ethernet Protocol (1) | Modbus TCP Slave | |
| Ethernet Protocol (2) | OPC UA Server | |
| Data Rates Modbus TCP | 10/100 Base-T Autosensing | |
| Data Rates OPC UA | 10/100 Base-T Autosensing | |
| Modbus TCP Connector | RJ45 | |
| OPC UA Connector | RJ45 | |
| Power Supply Connector | 2way 5mm terminal block | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 36x60x95 (LxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| SOFTWARE | SW67B30 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
