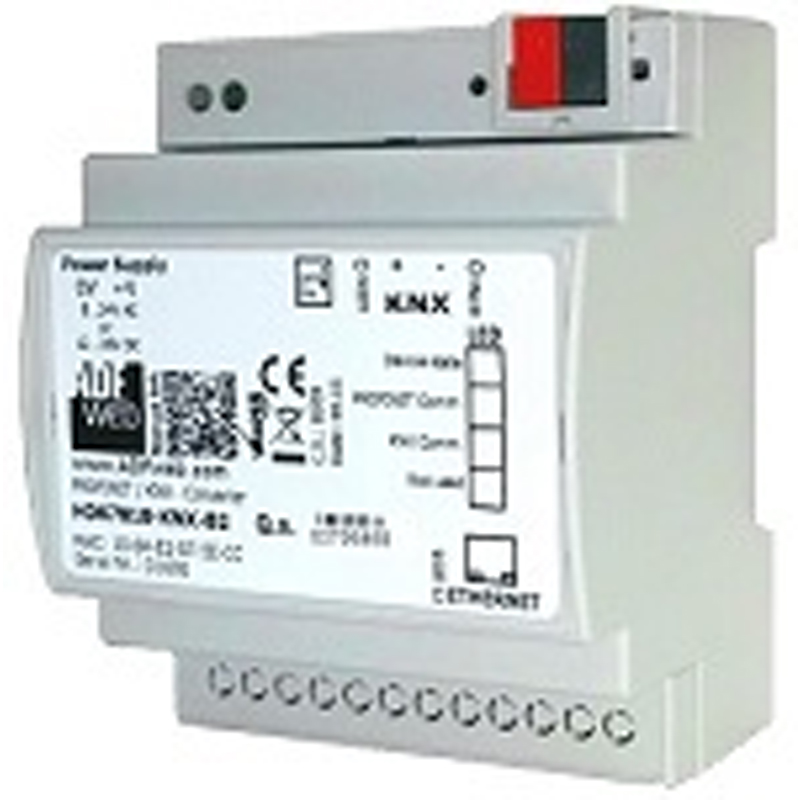

Modbus TCP to KNX

Part No.: MPADFW-Modbus-TCP-to-KNX
This series of products allows to integrate a Modbus TCP network with a KNX net.

產品介紹

Modbus TCP / KNX - Converter

This series of products allows to integrate a Modbus TCP network with a KNX net.

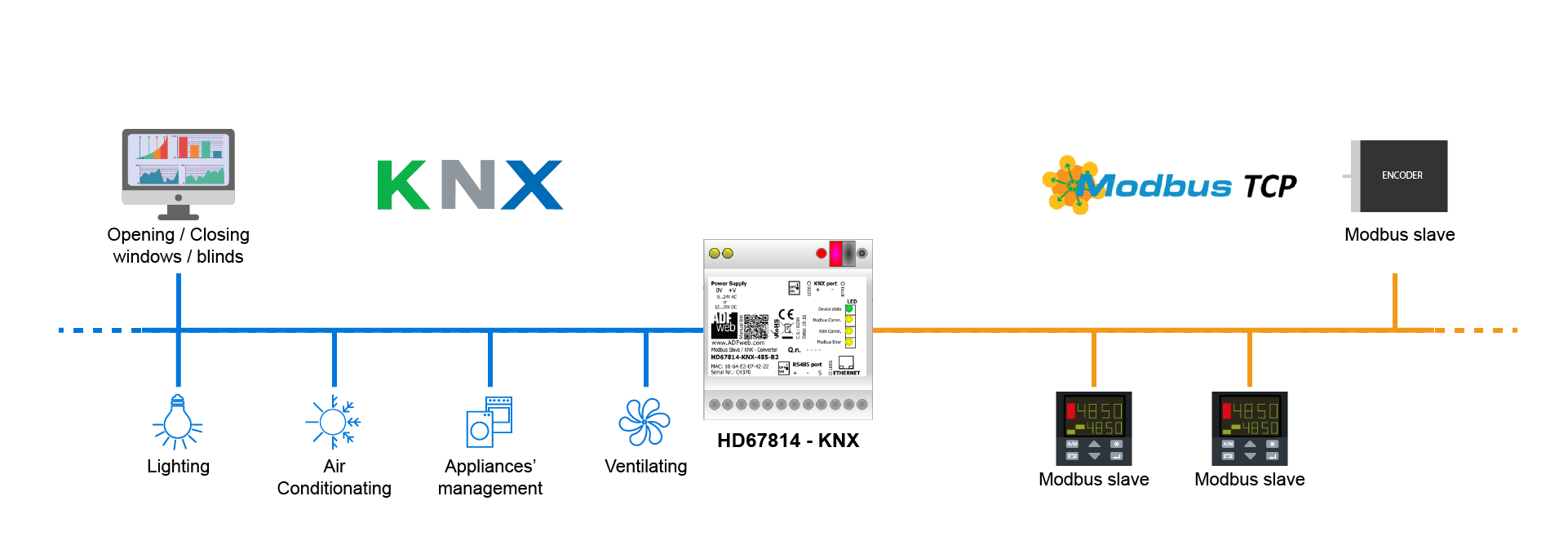

The HD67814 is a Modbus TCP Master / KNX Converter and it allows you to connect some Modbus TCP Slaves with a KNX net (for example light switches, actuators ).

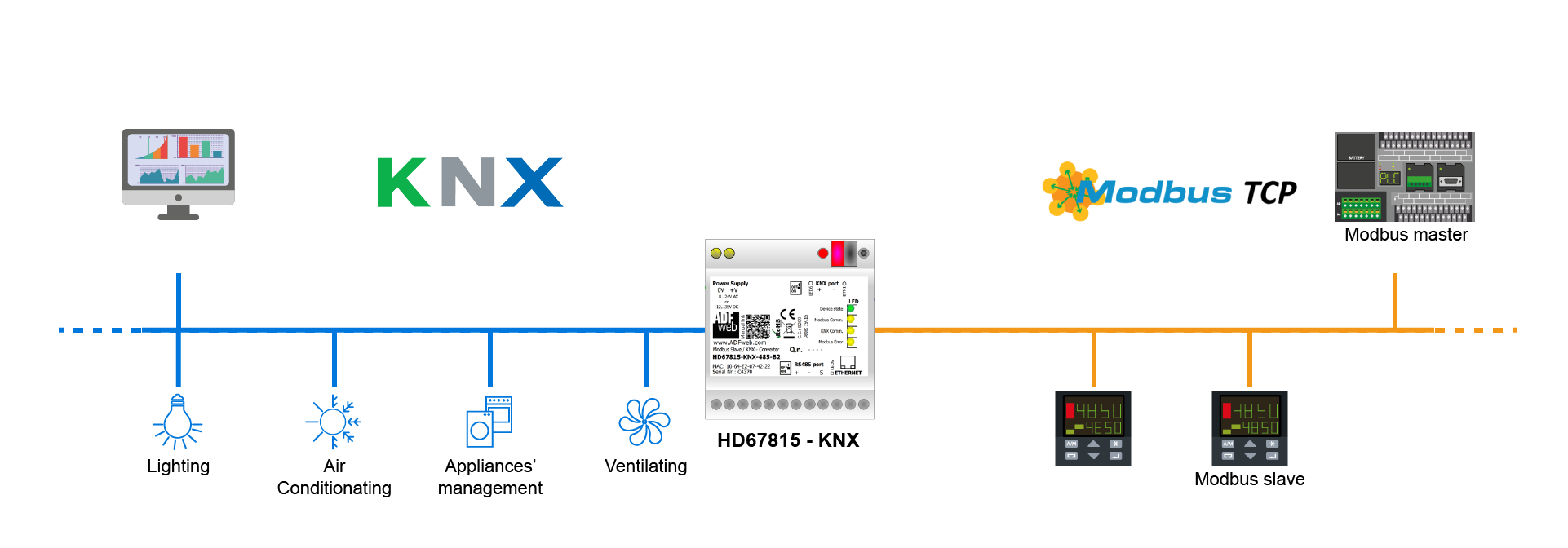

The HD67815 is a Modbus TCP Slave / KNX Converter and it allows you to connect a Modbus TCP Master net (for example a PLC, a SCADA System ) with a KNX net (for example light switches, actuators ) in order to exchange the informations between the networks.

This converters are very easy to configure and allows you to interface a Modbus TCP system with the KNX world.
On KNX side you can connect all the common KNX devices such as temperature sensors, shutters, light switches, actuators, alarms etc.


Modbus TCP / KNX series



HD67814-KNX-B2

Modbus TCP Master / KNX - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: B, Terminal Blocks Connectors )





Ports 1xKNX; 1xEthernet
KNX Protocol KNX TP
Modbus TCP Protocol Modbus TCP Master
Data Rates KNX 9600 bit/s
Data Rates Modbus TCP 10/100 Base-T Autosensing
KNX Connector KNX Bus connector
Modbus TCP Connector RJ45
Power Supply 8..24V AC; 12..35V DC
Power Supply Connector 2way 5mm terminal block
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 71x60x95 (DxWxH)
200g approx 200g approx
Mechanical Fixing 35mm DIN Rail montage
Software SW67814



HD67815-KNX-B2

Modbus TCP slave/ KNX - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: B, Terminal Blocks Connectors )





Ports 1xKNX; 1xEthernet
KNX Protocol KNX TP
Modbus TCP Protocol Modbus TCP slave
Data Rates KNX 9600 bit/s
Data Rates Modbus TCP 10/100 Base-T Autosensing
KNX Connector KNX Bus connector
Modbus TCP Connector RJ45
Power Supply 8..24V AC; 12..35V DC
Power Supply Connector 2way 5mm terminal block
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 71x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing 35mm DIN Rail montage
Software SW67815

Accessories


Order Code Description
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC
AC34-AB1TP KNX Power Supply - KNX out 640mA - in 240VAC
AC34-AG1TP KNX Power Supply - KNX out 640mA + AUX out 30VDC - in 240VAC
