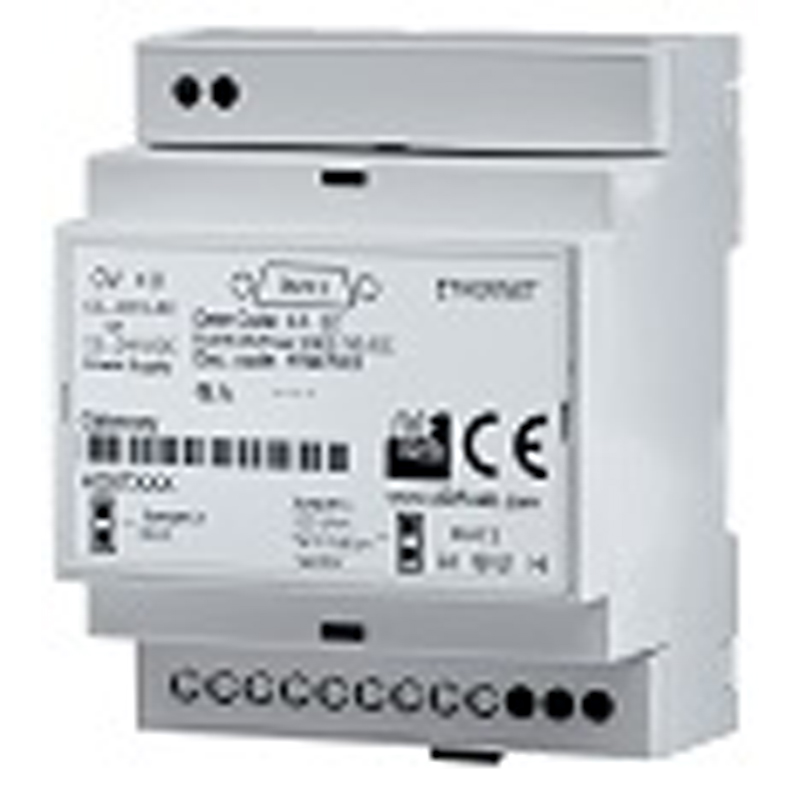

Modbus TCP to EnOcean

Part No.: MPADFW-Modbus-TCP-to-EnOcean
This series of products allows to integrate some EnOcean devices into a Modbus TCP network.

產品介紹

EnOcean / Modbus TCP - Converter

This series of products allows to integrate some EnOcean devices into a Modbus TCP network.

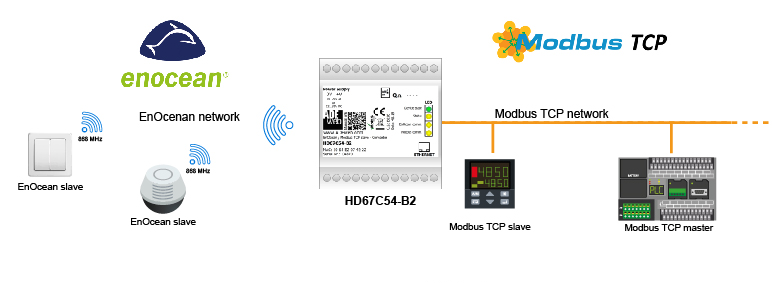

The HD67C54 is an EnOcean / Modbus TCP Slave Converter so you can connect an EnOcean network with a Modbus TCP Master in order to exchange informations between the Modbus TCP Master (for example a Supervisory System, PLC, etc..) and the EnOcean network.



EnOcean / Modbus TCP Slave Converters



HD67C54-B2

EnOcean / Modbus TCP - Converter ( Housing type: B, Terminal Blocks Connectors )



Ports 1xEthernet
Modbus TCP Protocol Modbus TCP Slave
Ethernet Protocol EnOcean
Data Rates Modbus TCP 10/100 Base-T Autosensing
Data Rates EnOcean 10/100 Base-T Autosensing
Modbus TCP Connector RJ45
EnOcean Connector RJ45
Power Supply 8..24V AC; 12..35V DC
Power Supply Connector 2way 5mm terminal block
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 70x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing 35mm DIN Rail montage
Software SW67C54



EnOcean / Modbus Slave Converters



HD67C52-2-B2

EnOcean / Modbus (RS232) - Converter ( Housing type: B, Terminal Blocks Connectors )



Ports 1xEthernet; 1xRS232
Modbus Protocol Modbus Slave RS232
Ethernet Protocol EnOcean
Data Rates Modbus Up to 115200 bps
Data Rates EnOcean 10/100 Base-T Autosensing
Modbus Connector 3way 5mm terminal block
EnOcean Connector RJ45
Power Supply 8..24V AC; 12..35V DC
Power Supply Connector 2way 5mm terminal block
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 70x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing 35mm DIN Rail montage
Software SW67C52



HD67C52-5-B2

EnOcean / Modbus (RS485) - Converter ( Housing type: B, Terminal Blocks Connectors )



Ports 1xEthernet; 1xRS485
Modbus Protocol Modbus Slave RS485
Ethernet Protocol EnOcean
Data Rates Modbus Up to 115200 bps
Data Rates EnOcean 10/100 Base-T Autosensing
Modbus Connector 3way 5mm terminal block
EnOcean Connector RJ45
Power Supply 8..24V AC; 12..35V DC
Power Supply Connector 2way 5mm terminal block
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 70x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing 35mm DIN Rail montage
Software SW67C52



Accessories


Order Code Description
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC
AC34131 Patch Cross Cable Cat6 2 Meters
