MQTT to KNX
Part No.: MPADFW-MQTT-to-KNX
This series of products allows you to integrate a KNX network with the IoT world based on MQTT net.
產品介紹
IoT Gateway
KNX / MQTT - Converter
This series of products allows you to integrate a KNX network with the IoT world based on MQTT net.

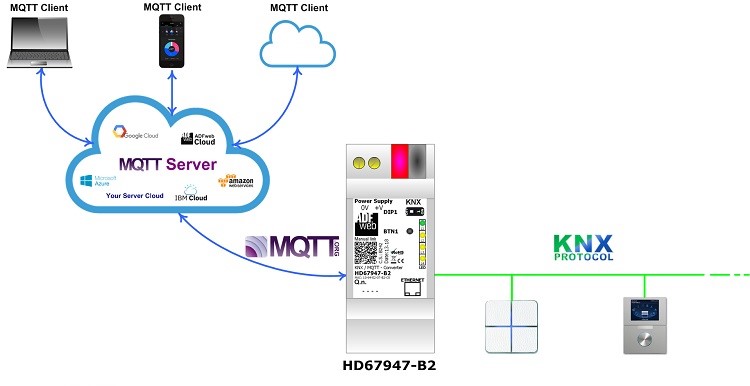

The HD67947-B2 are KNX / MQTT Converters.
They allow to publish and get the data from/to a KNX network into/from a MQTT Server.
These gateways allow a fast and easy access to IoT world and they are compatible with IoT Servers ( Microsoft Azure, Amazon AWS, IBM Cloud, Google Cloud... etc and customized Servers) that support MQTT protocol.
The MQTT communication can be encrypted using TLS / SSL protocols, ensuring a SECURE and SAFETY communication.
This converters are very easy to configure and allow you to interface the IoT system with the KNX world. On KNX side you can connect all the common KNX devices such as temperature sensors, shutters, light switches, actuators, alarms etc.

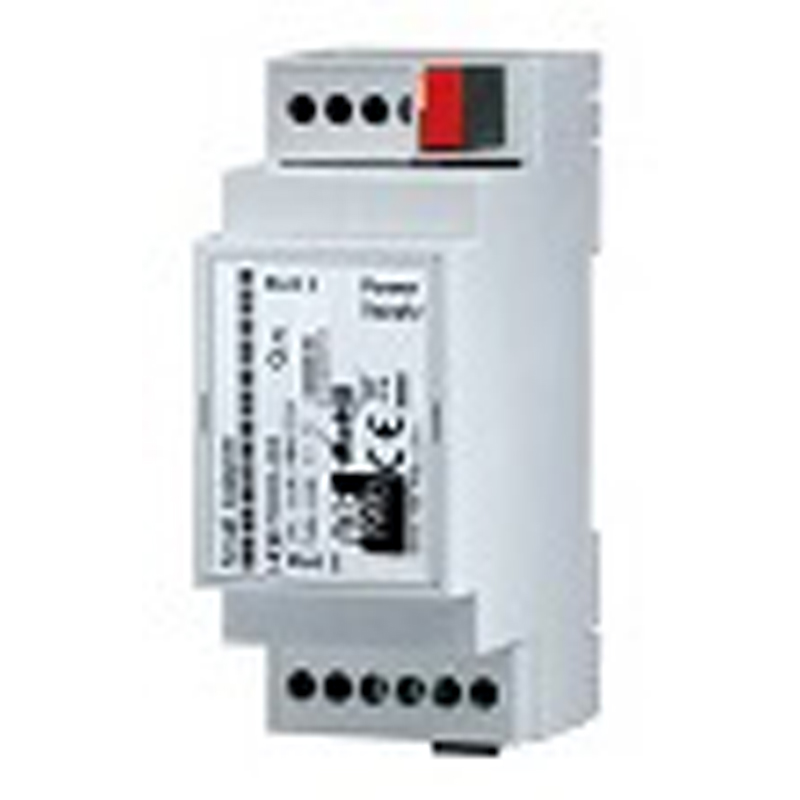

HD67947-B2
KNX / MQTT - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX;1xEthernet | |
|---|---|---|
| EtherNet Potocol | MQTT | |
| KNX Protocol | KNX TP | |
| Data Rates KNX | 9600 bps | |
| Data Rates MQTT | 10/100 Base-T Autosensing | |
| KNX Connector | KNX bus connector | |
| MQTT Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |

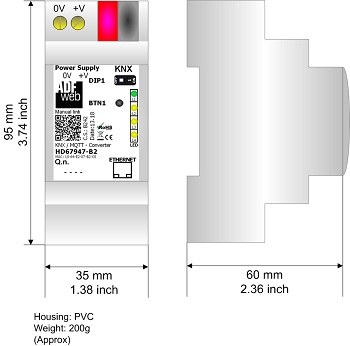

| Dimensions | 36x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67947 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34-AG1TP | KNX Power Supply - KNX out 640mA + AUX out 30VDC - in 240VAC |
| AC34-AB1TP | KNX Power Supply - KNX out 640mA - in 240VAC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
