M-Bus to Modbus TCP
Part No.: MPADFW-M-Bus-to-Modbus-TCP

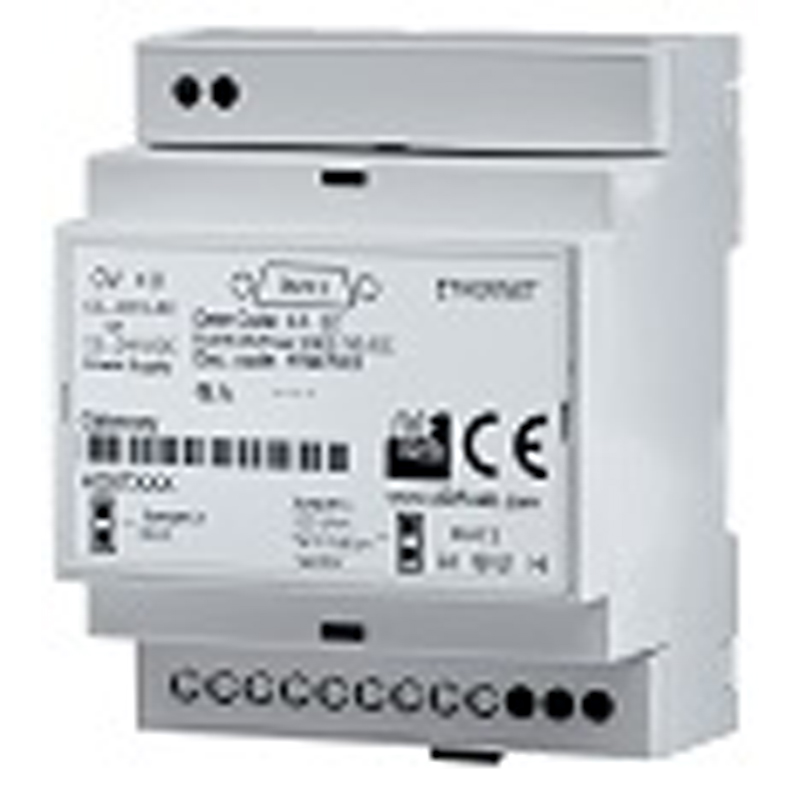

The HD67044-B2-xxx are M-Bus / Modbus TCP converters.
產品介紹
M-Bus / Modbus TCP - Converter
The HD67044-B2-xxx are M-Bus / Modbus TCP converters.
They allow to monitor some M-Bus meters (like Engelmann, Amber-Wireless, Maddalena, Siemens, exc. meters) with a Modbus TCP net (like a PLC exc).
On M-Bus side, the HD67044-B2 can manage up to 250 meters.
Series M-Bus from/to Modbus TCP Server
HD67044-B2-20
M-Bus / Modbus TCP - Converter ( Master M-Bus: up to 20 slaves - Modbus Slave Port: Ethernet)
| Ports | 1xM-Bus; 1xModbus TCP | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| Data Rates Modbus TCP | 100 Base-T Autosensing | |
| M-Bus Connector | 2 way 5mm fixed screw terminal | |
| Modbus TCP Connector | RJ45 | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 106x58x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67044 | |
HD67044-B2-40
M-Bus / Modbus TCP - Converter ( Master M-Bus: up to 40 slaves - Modbus Slave Port: Ethernet)
| Ports | 1xM-Bus; 1xModbus TCP | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| Data Rates Modbus TCP | 100 Base-T Autosensing | |
| M-Bus Connector | 2 way 5mm fixed screw terminal | |
| Modbus TCP Connector | RJ45 | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 106x58x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67044_40_80_160_250 | |
HD67044-B2-80
M-Bus / Modbus TCP - Converter ( Master M-Bus: up to 80 slaves - Modbus Slave Port: Ethernet)
| Ports | 1xM-Bus; 1xModbus TCP | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| Data Rates Modbus TCP | 100 Base-T Autosensing | |
| M-Bus Connector | 2 way 5mm fixed screw terminal | |
| Modbus TCP Connector | RJ45 | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 106x58x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67044_40_80_160_250 | |
HD67044-B2-160
M-Bus / Modbus TCP - Converter ( Master M-Bus: up to 160 slaves - Modbus Slave Port: Ethernet)
| Ports | 1xM-Bus; 1xModbus TCP | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| Data Rates Modbus TCP | 100 Base-T Autosensing | |
| M-Bus Connector | 2 way 5mm fixed screw terminal | |
| Modbus TCP Connector | RJ45 | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 106x58x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67044_40_80_160_250 | |
HD67044-B2-250
M-Bus / Modbus TCP - Converter ( Master M-Bus: up to 250 slaves - Modbus Slave Port: Ethernet)
| Ports | 1xM-Bus; 1xModbus TCP | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| Data Rates Modbus TCP | 100 Base-T Autosensing | |
| M-Bus Connector | 2 way 5mm fixed screw terminal | |
| Modbus TCP Connector | RJ45 | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 106x58x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67044_40_80_160_250 | |
Accessories
| Order Code | Description |
|---|---|
| APW020 | Power Supply for M-Bus Master device that supports up to 20 Slaves |
| APW040 | Power Supply for M-Bus Master device that supports up to 40 Slaves |
| APW080 | Power Supply for M-Bus Master device that supports up to 80 Slaves |
| APW160 | Power Supply for M-Bus Master device that supports up to 160 Slaves |
| APW250 | Power Supply for M-Bus Master device that supports up to 250 Slaves |
Benefits
- Software for easy configurator
- Designed for serius use
- Very easy to configure
- Low cost
- Rail din mountable
- Wide supply input range
- Galvanic isolation
- Industrial temperature range: -30° / 70° (-22°F / 158°F)
