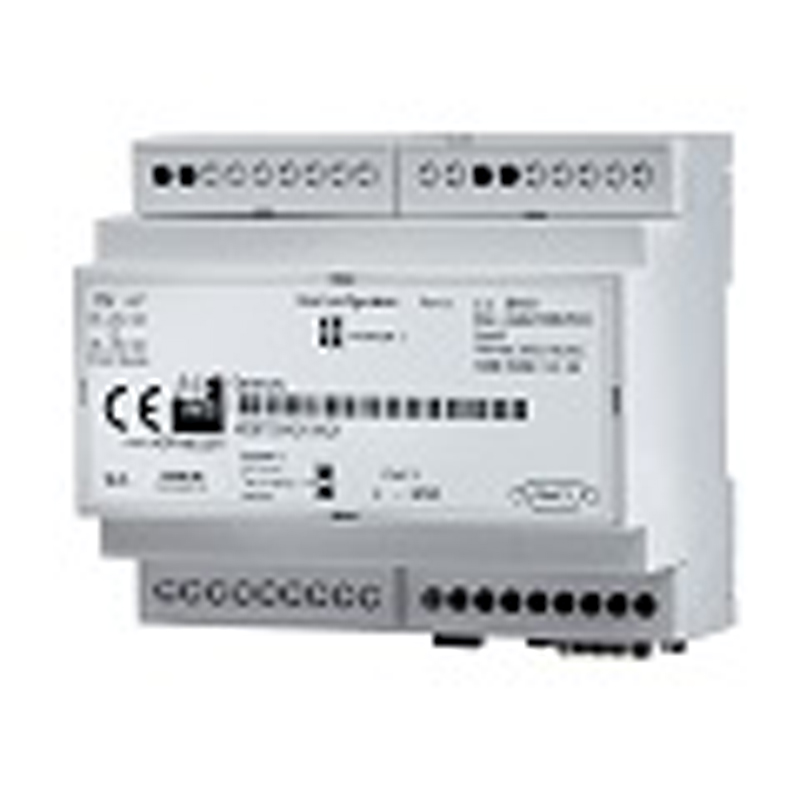

M-Bus: Repeater Isolator M-bus
Part No.: MPADFW-M-Bus-Repeater-Isolator-M-bus
This series allow to read/write M-Bus Slaves devices on RS485 with a Standard M-Bus Master.
產品介紹
M-Bus Splitter Extensor/Isolator Repeater
The HD67018 are M-Bus Slave / Serial - Converter (transparent converter).
This series allow to read/write M-Bus Slaves devices on RS485 (like Caleffi meters etc..) with a Standard M-Bus Master (M-Bus physical layer).
The HD67032 are M-Bus Splitters Repeaters, this series allows to Isolate and Extend a M-Bus Line, ensuring galvanic isolation between the various M-Bus branches.
HD67032 are Configurable devices with Logic Inside and they allow to connect up to 250 M-Bus Slaves.
Series M-Bus Slave from/to Serial
HD67018-232-B2
M-Bus Slave / Serial - Converter ( Serial port: RS232, Housing type: B, Terminal Blocks Connectors )
| Ports | 1xM-Bus Slave, 1xRS232 | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| Data Rates Serial | RS232 Up to 115200 bps | |
| M-Bus Connector | 2way 5mm fixed screw terminal | |
| Serial RS232 Connector | 3way 5mm fixed screw terminal | |
| Power Supply Connector | 2way 5mm fixed screw terminal | |
| Power Supply | 8...24V AC ; 8...35V DC | |
| Operating Temperature | -40ºC/+70ºC (-40ºF/+158ºF) | |
| Dimensions | 106x58x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| SOFTWARE | SW67018 | |
HD67018-485-B2
M-Bus Slave / Serial - Converter ( Serial port: RS485, Housing type: B, Terminal Blocks Connectors )
| Ports | 1xM-Bus Slave, 1xRS485 | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| Data Rates Serial | RS485 Up to 115200 bps | |
| M-Bus Connector | 2way 5mm fixed screw terminal | |
| Serial RS485 Connector | 3way 5mm fixed screw terminal | |
| Power Supply Connector | 2way 5mm fixed screw terminal | |
| Power Supply | 8...24V AC ; 8...35V DC | |
| Operating Temperature | -40ºC/+70ºC (-40ºF/+158ºF) | |
| Dimensions | 106x58x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| SOFTWARE | SW67018 | |
Series Repeater M-Bus
HD67032-B2-20
M-Bus – Repeater - Isolator ( Master M-Bus: up to 20 slaves )
| Ports | 1xM-Bus Master; 1xM-Bus Slave; 1xEthernet (programming port) | |
|---|---|---|
| Data Rates M-Bus Master | Up to 38400 bps | |
| Data Rates M-Bus Slave | Up to 38400 bps | |
| M-Bus Master Connector | 2way 5mm terminal block | |
| M-Bus Slave Connector | 2way 5mm terminal block | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40°C/+70°C (-40°F/+158°F) | |
| Dimensions | 106x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67032 | |
HD67032-B2-40
M-Bus – Repeater - Isolator ( Master M-Bus:up to 40 slaves )
| Ports | 1xM-Bus Master; 1xM-Bus Slave; 1xEthernet (programming port) | |
|---|---|---|
| Data Rates M-Bus Master | Up to 38400 bps | |
| Data Rates M-Bus Slave | Up to 38400 bps | |
| M-Bus Master Connector | 2way 5mm terminal block | |
| M-Bus Slave Connector | 2way 5mm terminal block | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40°C/+70°C (-40°F/+158°F) | |
| Dimensions | 106x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67032 | |
HD67032-B2-80
M-Bus – Repeater - Isolator ( Master M-Bus:up to 80 slaves )
| Ports | 1xM-Bus Master; 1xM-Bus Slave; 1xEthernet (programming port) | |
|---|---|---|
| Data Rates M-Bus Master | Up to 38400 bps | |
| Data Rates M-Bus Slave | Up to 38400 bps | |
| M-Bus Master Connector | 2way 5mm terminal block | |
| M-Bus Slave Connector | 2way 5mm terminal block | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40°C/+70°C (-40°F/+158°F) | |
| Dimensions | 106x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67032 | |
HD67032-B2-160
M-Bus – Repeater - Isolator ( Master M-Bus:up to 160 slaves )
| Ports | 1xM-Bus Master; 1xM-Bus Slave; 1xEthernet (programming port) | |
|---|---|---|
| Data Rates M-Bus Master | Up to 38400 bps | |
| Data Rates M-Bus Slave | Up to 38400 bps | |
| M-Bus Master Connector | 2way 5mm terminal block | |
| M-Bus Slave Connector | 2way 5mm terminal block | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40°C/+70°C (-40°F/+158°F) | |
| Dimensions | 106x63x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67032 | |
HD67032-B2-250
M-Bus – Repeater - Isolator ( Master M-Bus:up to 250 slaves )
| Ports | 1xM-Bus Master; 1xM-Bus Slave; 1xEthernet (programming port) | |
|---|---|---|
| Data Rates M-Bus Master | Up to 38400 bps | |
| Data Rates M-Bus Slave | Up to 38400 bps | |
| M-Bus Master Connector | 2way 5mm terminal block | |
| M-Bus Slave Connector | 2way 5mm terminal block | |
| Power Supply | 15...21V AC ; 18...35V DC | |
| Operating Temperature | -40°C/+70°C (-40°F/+158°F) | |
| Dimensions | 106x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67032 | |
Accessories
| Order Code | Description |
|---|---|
| AC34107 | Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m |
| AC34114 | Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m |
| APW020 | Power Supply for M-Bus Master device that supports up to 20 Slaves |
| APW040 | Power Supply for M-Bus Master device that supports up to 40 Slaves |
| APW080 | Power Supply for M-Bus Master device that supports up to 80 Slaves |
| APW160 | Power Supply for M-Bus Master device that supports up to 160 Slaves |
| APW250 | Power Supply for M-Bus Master device that supports up to 250 Slaves |
Benefits
- Software for easy configurator
- Designed for serius use
- Very easy to configure
- Low cost
- Rail din mountable
- Wide supply input range
- Galvanic isolation
- Industrial temperature range: -30° / 70° (-22°F / 158°F)
