M-Bus: Analyzer M-bus
Part No.: MPADFW-M-Bus-Analyzer-M-bus
he M-Bus Analyzer & Scanner is a powerful, flexible and economic tool, which is used with system based in M-Bus.
產品介紹
Analyzer & Scanner
M-Bus
The M-Bus Analyzer & Scanner is a powerful, flexible and economic tool, which is used with system based in M-Bus.
It is indicate for who installs, configures, M-BUS devices but, it is very useful also for who have to develop M-BUS devices.
The capability, like Master M-BUS, is to driver up to 250 M-BUS slaves and is also endowed of galvanic isolation between the PC and the M-BUS slaves
It is possible use it also with a remote connection.
HD67031-B2-20
M-Bus Analyzer - Scanner - Sniffer ( Master M-Bus: up to 20 slaves )
| Ports | 1xM-Bus; 1xRS232 | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| M-Bus Connector | Terminal block | |
| Power Supply | 15..21V AC; 18..35V DC | |
| Operating Temperature | -40ºC/+70ºC (-40ºF/+158ºF) | |
| Dimensions | 106x60x95 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Sofware | SW67031 | |
HD67031-B2-40
M-Bus Analyzer - Scanner - Sniffer ( Master M-Bus: up to 40 slaves )
| Ports | 1xM-Bus; 1xRS232 | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| M-Bus Connector | Terminal block | |
| Power Supply | 15..21V AC; 18..35V DC | |
| Operating Temperature | -40ºC/+70ºC (-40ºF/+158ºF) | |
| Dimensions | 106x60x95 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Sofware | SW67031 | |
HD67031-B2-80
M-Bus Analyzer - Scanner - Sniffer ( Master M-Bus: up to 80 slaves )
| Ports | 1xM-Bus; 1xRS232 | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| M-Bus Connector | Terminal block | |
| Power Supply | 15..21V AC; 18..35V DC | |
| Operating Temperature | -40ºC/+70ºC (-40ºF/+158ºF) | |
| Dimensions | 106x60x95 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Sofware | SW67031 | |
HD67031-B2-160
M-Bus Analyzer - Scanner - Sniffer ( Master M-Bus: up to 160 slaves )
| Ports | 1xM-Bus; 1xRS232 | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| M-Bus Connector | Terminal block | |
| Power Supply | 15..21V AC; 18..35V DC | |
| Operating Temperature | -40ºC/+70ºC (-40ºF/+158ºF) | |
| Dimensions | 106x60x95 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Sofware | SW67031 | |
HD67031-B2-250
M-Bus Analyzer - Scanner - Sniffer ( Master M-Bus: up to 250 slaves )
| Ports | 1xM-Bus; 1xRS232 | |
|---|---|---|
| Data Rates M-Bus | Up to 38400 bps | |
| M-Bus Connector | Terminal block | |
| Power Supply | 15..21V AC; 18..35V DC | |
| Operating Temperature | -40ºC/+70ºC (-40ºF/+158ºF) | |
| Dimensions | 106x60x95 mm(DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Sofware | SW67031 | |
Accessories
| Order Code | Description |
|---|---|
| AC34107 | Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m |
| AC34114 | Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m |
| APW020 | Power Supply for M-Bus Master device that supports up to 20 Slaves |
| APW040 | Power Supply for M-Bus Master device that supports up to 40 Slaves |
| APW080 | Power Supply for M-Bus Master device that supports up to 80 Slaves |
| APW160 | Power Supply for M-Bus Master device that supports up to 160 Slaves |
| APW250 | Power Supply for M-Bus Master device that supports up to 250 Slaves |

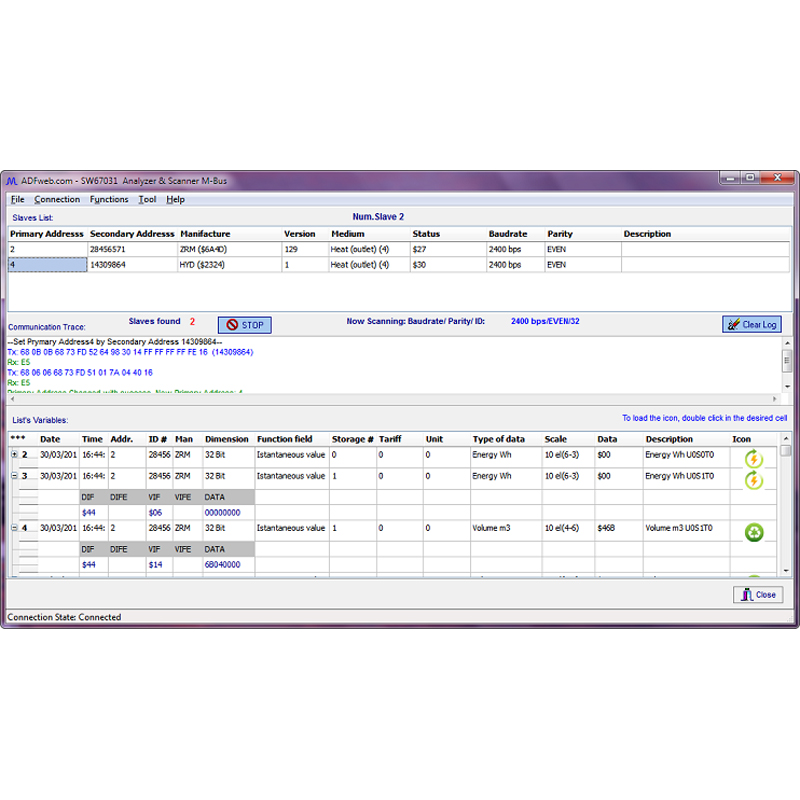

Software Analyzer & Scanner M-Bus
All features for :Different Connection, Total Scanner Slave, Change Primary Address, Change Baudrate .. and more!
