Part No.: MPADFW-M-bus-Wireless-to-Modbus-TCP

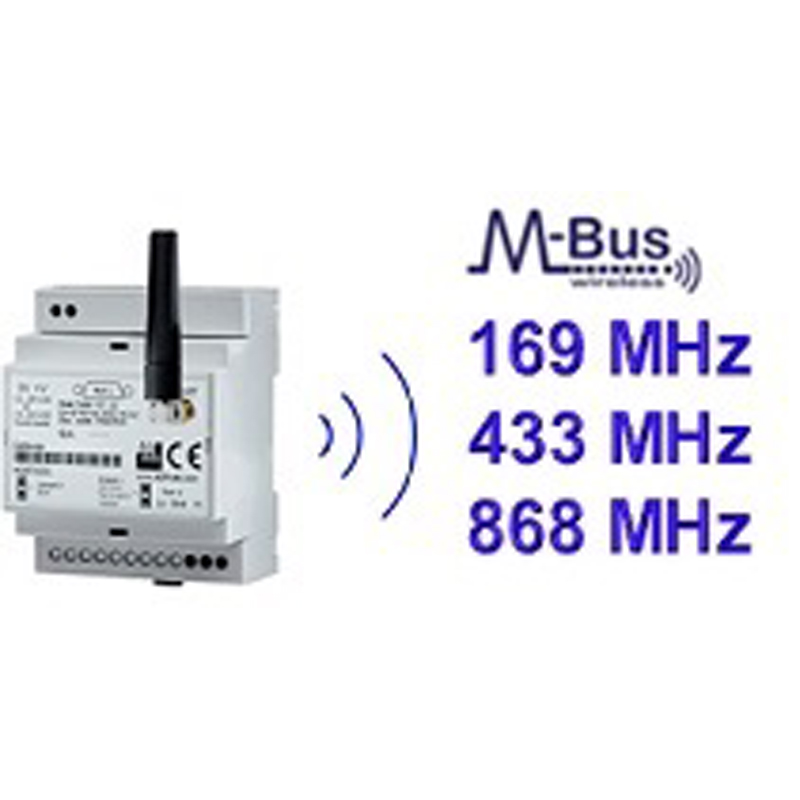

The HD67083-B2-xxxMHz-xxx are M-Bus Wireless / Modbus TCP converters.
The HD67083-B2-xxxMHz-xxx are M-Bus Wireless / Modbus TCP converters.
They allow to monitor some M-Bus Wireless meters (like Engelmann, Amber-Wireless, Maddalena, Siemens, exc. meters) with a Modbus net (like a PLC, a PC exc).
They can use 169 MHz, 433 MHz or 868 MHz frequency on M-Bus Wireless side and they support N1 and N2 (169 MHz) or S1 and T1 (433 & 868 MHz) communication.
In relation to the order code, the HD67083-B2 can have only the M-Bus Wireless port or the M-Bus (wired) port too. ( Hybrid )
On M-Bus Wireless side, the HD67083-B2 can manage up to 32 meters.
On M-Bus side, the HD67083-B2 can manage up to 250 meters.
M-Bus Wireless / Modbus TCP Slave - Converter (wM-Bus @ 169 MHz, N1&N2 supported )
Ports | 1xM-Bus Wireless; 1xEthernet | |
---|---|---|
M-Bus Wireless Protocol | M-Bus Wireless, N1&N2 communication | |
Modbus Protocol | Modbus TCP slave | |
M-Bus Wireless Frequency | 169 MHz | |
Data Rate Modbus | 10/100 Base-T Autosensing | |
M-Bus Wireless Connector | SMA Female Antenna | |
Modbus TCP Connector | 3way 5mm terminal block | |
Power Supply | 15..21V AC; 18..35V DC | |
Power Supply Connector | 2way 5mm terminal block | |
Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
Dimensions | 71x60x95 (DxWxH) | |
Weight | 200g approx | |
Mechanical Fixing | DIN Rail montage | |
Software | SW67083 |
M-Bus Wireless / Modbus TCP Slave - Converter (wM-Bus @ 433 MHz, N1&N2 supported )
Ports | 1xM-Bus Wireless; 1xEthernet | |
---|---|---|
M-Bus Wireless Protocol | M-Bus Wireless, S1&T1 communication | |
Modbus Protocol | Modbus TCP slave | |
M-Bus Wireless Frequency | 433 MHz | |
Data Rate Modbus | 10/100 Base-T Autosensing | |
M-Bus Wireless Connector | SMA Female Antenna | |
Modbus TCP Connector | 3way 5mm terminal block | |
Power Supply | 15..21V AC; 18..35V DC | |
Power Supply Connector | 2way 5mm terminal block | |
Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
Dimensions | 71x60x95 (DxWxH) | |
Weight | 200g approx | |
Mechanical Fixing | DIN Rail montage | |
Software | SW67083 |
M-Bus Wireless / Modbus TCP Slave - Converter (wM-Bus @ 868 MHz, S1&T1 supported )
Ports | 1xM-Bus Wireless; 1xEthernet | |
---|---|---|
M-Bus Wireless Protocol | M-Bus Wireless, S1&T1 communication | |
Modbus Protocol | Modbus TCP slave | |
M-Bus Wireless Frequency | 868 MHz | |
Data Rate Modbus | Up to 115200 bit/s | |
M-Bus Wireless Connector | 10/100 Base-T Autosensing | |
Modbus TCP Connector | 3way 5mm terminal block | |
Power Supply | 15..21V AC; 18..35V DC | |
Power Supply Connector | 2way 5mm terminal block | |
Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
Dimensions | 71x60x95 (DxWxH) | |
Weight | 200g approx | |
Mechanical Fixing | DIN Rail montage | |
Software | SW67083 |
M-Bus Wireless / Modbus TCP Slave - Converter (M-Bus port: wired + wireless, wM-Bus @ 169 MHz, S1&T1 supported, up to 20 slaves )
Ports | 1xM-Bus Wireless; 1xM-Bus; 1xEthernet | |
---|---|---|
M-Bus Wireless Protocol | M-Bus Wireless, S1&T1 communication | |
M-Bus Protocol | M-Bus Master | |
Modbus Protocol | Modbus TCP slave | |
M-Bus Wireless Frequency | 169 MHz | |
Data Rate M-Bus | Up to 38400 bit/s | |
Data Rate Modbus TCP | 10/100 Base-T Autosensing | |
M-Bus Wireless Connector | SMA Female Antenna | |
M-Bus Connector | 2way 5mm terminal block | |
Modbus TCP Connector | 3way 5mm terminal block | |
Power Supply | 15..21V AC; 18..35V DC | |
Power Supply Connector | 2way 5mm terminal block | |
Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
Dimensions | 71x60x95 (DxWxH) | |
Weight | 200g approx | |
Mechanical Fixing | DIN Rail montage | |
Software | SW67083 |
M-Bus Wireless / Modbus TCP Slave - Converter (M-Bus port: wired + wireless, wM-Bus @ 169 MHz, S1&T1 supported, up to 40 slaves )
Ports | 1xM-Bus Wireless; 1xM-Bus; 1xEthernet | |
---|---|---|
M-Bus Wireless Protocol | M-Bus Wireless, S1&T1 communication | |
M-Bus Protocol | M-Bus Master | |
Modbus Protocol | Modbus TCP slave | |
M-Bus Wireless Frequency | 169 MHz | |
Data Rate M-Bus | Up to 38400 bit/s | |
Data Rate Modbus TCP | 10/100 Base-T Autosensing | |
M-Bus Wireless Connector | SMA Female Antenna | |
M-Bus Connector | 2way 5mm terminal block | |
Modbus TCP Connector | 3way 5mm terminal block | |
Power Supply | 15..21V AC; 18..35V DC | |
Power Supply Connector | 2way 5mm terminal block | |
Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
Dimensions | 71x60x95 (DxWxH) | |
Weight | 200g approx | |
Mechanical Fixing | DIN Rail montage | |
Software | SW67083 |
M-Bus Wireless / Modbus TCP Slave - Converter (M-Bus port: wired + wireless, wM-Bus @ 169 MHz, S1&T1 supported, up to 80 slaves )
Ports | 1xM-Bus Wireless; 1xM-Bus; 1xEthernet | |
---|---|---|
M-Bus Wireless Protocol | M-Bus Wireless, S1&T1 communication | |
M-Bus Protocol | M-Bus Master | |
Modbus Protocol | Modbus TCP slave | |
M-Bus Wireless Frequency | 169 MHz | |
Data Rate M-Bus | Up to 38400 bit/s | |
Data Rate Modbus TCP | 10/100 Base-T Autosensing | |
M-Bus Wireless Connector | SMA Female Antenna | |
M-Bus Connector | 2way 5mm terminal block | |
Modbus TCP Connector | 3way 5mm terminal block | |
Power Supply | 15..21V AC; 18..35V DC | |
Power Supply Connector | 2way 5mm terminal block | |
Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
Dimensions | 71x60x95 (DxWxH) | |
Weight | 200g approx | |
Mechanical Fixing | DIN Rail montage | |
Software | SW67083 |
M-Bus Wireless / Modbus TCP Slave - Converter (M-Bus port: wired + wireless, wM-Bus @ 169 MHz, S1&T1 supported, up to 160 slaves )
Ports | 1xM-Bus Wireless; 1xM-Bus; 1xEthernet | |
---|---|---|
M-Bus Wireless Protocol | M-Bus Wireless, S1&T1 communication | |
M-Bus Protocol | M-Bus Master | |
Modbus Protocol | Modbus TCP slave | |
M-Bus Wireless Frequency | 169 MHz | |
Data Rate M-Bus | Up to 38400 bit/s | |
Data Rate Modbus TCP | 10/100 Base-T Autosensing | |
M-Bus Wireless Connector | SMA Female Antenna | |
M-Bus Connector | 2way 5mm terminal block | |
Modbus TCP Connector | 3way 5mm terminal block | |
Power Supply | 15..21V AC; 18..35V DC | |
Power Supply Connector | 2way 5mm terminal block | |
Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
Dimensions | 71x60x95 (DxWxH) | |
Weight | 200g approx | |
Mechanical Fixing | DIN Rail montage | |
Software | SW67083 |
M-Bus Wireless / Modbus TCP Slave - Converter (M-Bus port: wired + wireless, wM-Bus @ 169 MHz, S1&T1 supported, up to 250 slaves )
Ports | 1xM-Bus Wireless; 1xM-Bus; 1xEthernet | |
---|---|---|
M-Bus Wireless Protocol | M-Bus Wireless, S1&T1 communication | |
M-Bus Protocol | M-Bus Master | |
Modbus Protocol | Modbus TCP slave | |
M-Bus Wireless Frequency | 169 MHz | |
Data Rate M-Bus | Up to 38400 bit/s | |
Data Rate Modbus TCP | 10/100 Base-T Autosensing | |
M-Bus Wireless Connector | SMA Female Antenna | |
M-Bus Connector | 2way 5mm terminal block | |
Modbus TCP Connector | 3way 5mm terminal block | |
Power Supply | 15..21V AC; 18..35V DC | |
Power Supply Connector | 2way 5mm terminal block | |
Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
Dimensions | 71x60x95 (DxWxH) | |
Weight | 200g approx | |
Mechanical Fixing | DIN Rail montage | |
Software | SW67083 |
M-Bus Wireless / Modbus TCP Slave - Converter (M-Bus port: wired + wireless, wM-Bus @ 433 MHz, S1&T1 supported, up to 20 slaves )
Ports | 1xM-Bus Wireless; 1xM-Bus; 1xEthernet | |
---|---|---|
M-Bus Wireless Protocol | M-Bus Wireless, S1&T1 communication | |
M-Bus Protocol | M-Bus Master | |
Modbus Protocol | Modbus TCP slave | |
M-Bus Wireless Frequency | 433 MHz | |
Data Rate M-Bus | Up to 38400 bit/s | |
Data Rate Modbus TCP | 10/100 Base-T Autosensing | |
M-Bus Wireless Connector | SMA Female Antenna | |
M-Bus Connector | 2way 5mm terminal block | |
Modbus TCP Connector | 3way 5mm terminal block | |
Power Supply | 15..21V AC; 18..35V DC | |
Power Supply Connector | 2way 5mm terminal block | |
Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
Dimensions | 71x60x95 (DxWxH) | |
Weight | 200g approx | |
Mechanical Fixing | DIN Rail montage | |
Software | SW67083 |
M-Bus Wireless / Modbus TCP Slave - Converter (M-Bus port: wired + wireless, wM-Bus @ 433 MHz, S1&T1 supported, up to 40 slaves )
Ports | 1xM-Bus Wireless; 1xM-Bus; 1xEthernet | |
---|---|---|
M-Bus Wireless Protocol | M-Bus Wireless, S1&T1 communication | |
M-Bus Protocol | M-Bus Master | |
Modbus Protocol | Modbus TCP slave | |
M-Bus Wireless Frequency | 433 MHz | |
Data Rate M-Bus | Up to 38400 bit/s | |
Data Rate Modbus TCP | 10/100 Base-T Autosensing | |
M-Bus Wireless Connector | SMA Female Antenna | |
M-Bus Connector | 2way 5mm terminal block | |
Modbus TCP Connector | 3way 5mm terminal block | |
Power Supply | 15..21V AC; 18..35V DC | |
Power Supply Connector | 2way 5mm terminal block | |
Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
Dimensions | 71x60x95 (DxWxH) | |
Weight | 200g approx | |
Mechanical Fixing | DIN Rail montage | |
Software | SW67083 |
M-Bus Wireless / Modbus TCP Slave - Converter (M-Bus port: wired + wireless, wM-Bus @ 433 MHz, S1&T1 supported, up to 80 slaves )
Ports | 1xM-Bus Wireless; 1xM-Bus; 1xEthernet | |
---|---|---|
M-Bus Wireless Protocol | M-Bus Wireless, S1&T1 communication | |
M-Bus Protocol | M-Bus Master | |
Modbus Protocol | Modbus TCP slave | |
M-Bus Wireless Frequency | 433 MHz | |
Data Rate M-Bus | Up to 38400 bit/s | |
Data Rate Modbus TCP | 10/100 Base-T Autosensing | |
M-Bus Wireless Connector | SMA Female Antenna | |
M-Bus Connector | 2way 5mm terminal block | |
Modbus TCP Connector | 3way 5mm terminal block | |
Power Supply | 15..21V AC; 18..35V DC | |
Power Supply Connector | 2way 5mm terminal block | |
Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
Dimensions | 71x60x95 (DxWxH) | |
Weight | 200g approx | |
Mechanical Fixing | DIN Rail montage | |
Software | SW67083 |
M-Bus Wireless / Modbus TCP Slave - Converter (M-Bus port: wired + wireless, wM-Bus @ 433 MHz, S1&T1 supported, up to 160 slaves )
Ports | 1xM-Bus Wireless; 1xM-Bus; 1xEthernet | |
---|---|---|
M-Bus Wireless Protocol | M-Bus Wireless, S1&T1 communication | |
M-Bus Protocol | M-Bus Master | |
Modbus Protocol | Modbus TCP slave | |
M-Bus Wireless Frequency | 433 MHz | |
Data Rate M-Bus | Up to 38400 bit/s | |
Data Rate Modbus TCP | 10/100 Base-T Autosensing | |
M-Bus Wireless Connector | SMA Female Antenna | |
M-Bus Connector | 2way 5mm terminal block | |
Modbus TCP Connector | 3way 5mm terminal block | |
Power Supply | 15..21V AC; 18..35V DC | |
Power Supply Connector | 2way 5mm terminal block | |
Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
Dimensions | 71x60x95 (DxWxH) | |
Weight | 200g approx | |
Mechanical Fixing | DIN Rail montage | |
Software | SW67083 |
M-Bus Wireless / Modbus TCP Slave - Converter (M-Bus port: wired + wireless, wM-Bus @ 433 MHz, S1&T1 supported, up to 250 slaves )
Ports | 1xM-Bus Wireless; 1xM-Bus; 1xEthernet | |
---|---|---|
M-Bus Wireless Protocol | M-Bus Wireless, S1&T1 communication | |
M-Bus Protocol | M-Bus Master | |
Modbus Protocol | Modbus TCP slave | |
M-Bus Wireless Frequency | 433 MHz | |
Data Rate M-Bus | Up to 38400 bit/s | |
Data Rate Modbus TCP | 10/100 Base-T Autosensing | |
M-Bus Wireless Connector | SMA Female Antenna | |
M-Bus Connector | 2way 5mm terminal block | |
Modbus TCP Connector | 3way 5mm terminal block | |
Power Supply | 15..21V AC; 18..35V DC | |
Power Supply Connector | 2way 5mm terminal block | |
Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
Dimensions | 71x60x95 (DxWxH) | |
Weight | 200g approx | |
Mechanical Fixing | DIN Rail montage | |
Software | SW67083 |
M-Bus Wireless / Modbus TCP Slave - Converter (M-Bus port: wired + wireless, wM-Bus @ 868 MHz, S1&T1 supported, up to 20 slaves )
Ports | 1xM-Bus Wireless; 1xM-Bus; 1xEthernet | |
---|---|---|
M-Bus Wireless Protocol | M-Bus Wireless, S1&T1 communication | |
M-Bus Protocol | M-Bus Master | |
Modbus Protocol | Modbus TCP slave | |
M-Bus Wireless Frequency | 868 MHz | |
Data Rate M-Bus | Up to 38400 bit/s | |
Data Rate Modbus TCP | 10/100 Base-T Autosensing | |
M-Bus Wireless Connector | SMA Female Antenna | |
M-Bus Connector | 2way 5mm terminal block | |
Modbus TCP Connector | 3way 5mm terminal block | |
Power Supply | 15..21V AC; 18..35V DC | |
Power Supply Connector | 2way 5mm terminal block | |
Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
Dimensions | 71x60x95 (DxWxH) | |
Weight | 200g approx | |
Mechanical Fixing | DIN Rail montage | |
Software | SW67083 |
M-Bus Wireless / Modbus TCP Slave - Converter (M-Bus port: wired + wireless, wM-Bus @ 868 MHz, S1&T1 supported, up to 40 slaves )
Ports | 1xM-Bus Wireless; 1xM-Bus; 1xEthernet | |
---|---|---|
M-Bus Wireless Protocol | M-Bus Wireless, S1&T1 communication | |
M-Bus Protocol | M-Bus Master | |
Modbus Protocol | Modbus TCP slave | |
M-Bus Wireless Frequency | 868 MHz | |
Data Rate M-Bus | Up to 38400 bit/s | |
Data Rate Modbus TCP | 10/100 Base-T Autosensing | |
M-Bus Wireless Connector | SMA Female Antenna | |
M-Bus Connector | 2way 5mm terminal block | |
Modbus TCP Connector | 3way 5mm terminal block | |
Power Supply | 15..21V AC; 18..35V DC | |
Power Supply Connector | 2way 5mm terminal block | |
Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
Dimensions | 71x60x95 (DxWxH) | |
Weight | 200g approx | |
Mechanical Fixing | DIN Rail montage | |
Software | SW67083 |
M-Bus Wireless / Modbus TCP Slave - Converter (M-Bus port: wired + wireless, wM-Bus @ 868 MHz, S1&T1 supported, up to 80 slaves )
Ports | 1xM-Bus Wireless; 1xM-Bus; 1xEthernet | |
---|---|---|
M-Bus Wireless Protocol | M-Bus Wireless, S1&T1 communication | |
M-Bus Protocol | M-Bus Master | |
Modbus Protocol | Modbus TCP slave | |
M-Bus Wireless Frequency | 868 MHz | |
Data Rate M-Bus | Up to 38400 bit/s | |
Data Rate Modbus TCP | 10/100 Base-T Autosensing | |
M-Bus Wireless Connector | SMA Female Antenna | |
M-Bus Connector | 2way 5mm terminal block | |
Modbus TCP Connector | 3way 5mm terminal block | |
Power Supply | 15..21V AC; 18..35V DC | |
Power Supply Connector | 2way 5mm terminal block | |
Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
Dimensions | 71x60x95 (DxWxH) | |
Weight | 200g approx | |
Mechanical Fixing | DIN Rail montage | |
Software | SW67083 |
M-Bus Wireless / Modbus TCP Slave - Converter (M-Bus port: wired + wireless, wM-Bus @ 868 MHz, S1&T1 supported, up to 160 slaves )
Ports | 1xM-Bus Wireless; 1xM-Bus; 1xEthernet | |
---|---|---|
M-Bus Wireless Protocol | M-Bus Wireless, S1&T1 communication | |
M-Bus Protocol | M-Bus Master | |
Modbus Protocol | Modbus TCP slave | |
M-Bus Wireless Frequency | 868 MHz | |
Data Rate M-Bus | Up to 38400 bit/s | |
Data Rate Modbus TCP | 10/100 Base-T Autosensing | |
M-Bus Wireless Connector | SMA Female Antenna | |
M-Bus Connector | 2way 5mm terminal block | |
Modbus TCP Connector | 3way 5mm terminal block | |
Power Supply | 15..21V AC; 18..35V DC | |
Power Supply Connector | 2way 5mm terminal block | |
Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
Dimensions | 71x60x95 (DxWxH) | |
Weight | 200g approx | |
Mechanical Fixing | DIN Rail montage | |
Software | SW67083 |
M-Bus Wireless / Modbus TCP Slave - Converter (M-Bus port: wired + wireless, wM-Bus @ 868 MHz, S1&T1 supported, up to 250 slaves )
Ports | 1xM-Bus Wireless; 1xM-Bus; 1xEthernet | |
---|---|---|
M-Bus Wireless Protocol | M-Bus Wireless, S1&T1 communication | |
M-Bus Protocol | M-Bus Master | |
Modbus Protocol | Modbus TCP slave | |
M-Bus Wireless Frequency | 868 MHz | |
Data Rate M-Bus | Up to 38400 bit/s | |
Data Rate Modbus TCP | 10/100 Base-T Autosensing | |
M-Bus Wireless Connector | SMA Female Antenna | |
M-Bus Connector | 2way 5mm terminal block | |
Modbus TCP Connector | 3way 5mm terminal block | |
Power Supply | 15..21V AC; 18..35V DC | |
Power Supply Connector | 2way 5mm terminal block | |
Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
Dimensions | 71x60x95 (DxWxH) | |
Weight | 200g approx | |
Mechanical Fixing | DIN Rail montage | |
Software | SW67083 |
Order Code | Description |
---|---|
APW020 | Power Supply for M-Bus Master device that supports up to 20 Slaves |
APW040 | Power Supply for M-Bus Master device that supports up to 40 Slaves |
APW080 | Power Supply for M-Bus Master device that supports up to 80 Slaves |
APW160 | Power Supply for M-Bus Master device that supports up to 160 Slaves |
APW250 | Power Supply for M-Bus Master device that supports up to 250 Slaves |
