KNX to M-Bus
Part No.: MPADFW-KNX-to-M-Bus
This series of products allows to integrate a M-Bus network with a KNX net.
產品介紹
M-Bus / KNX - Converter

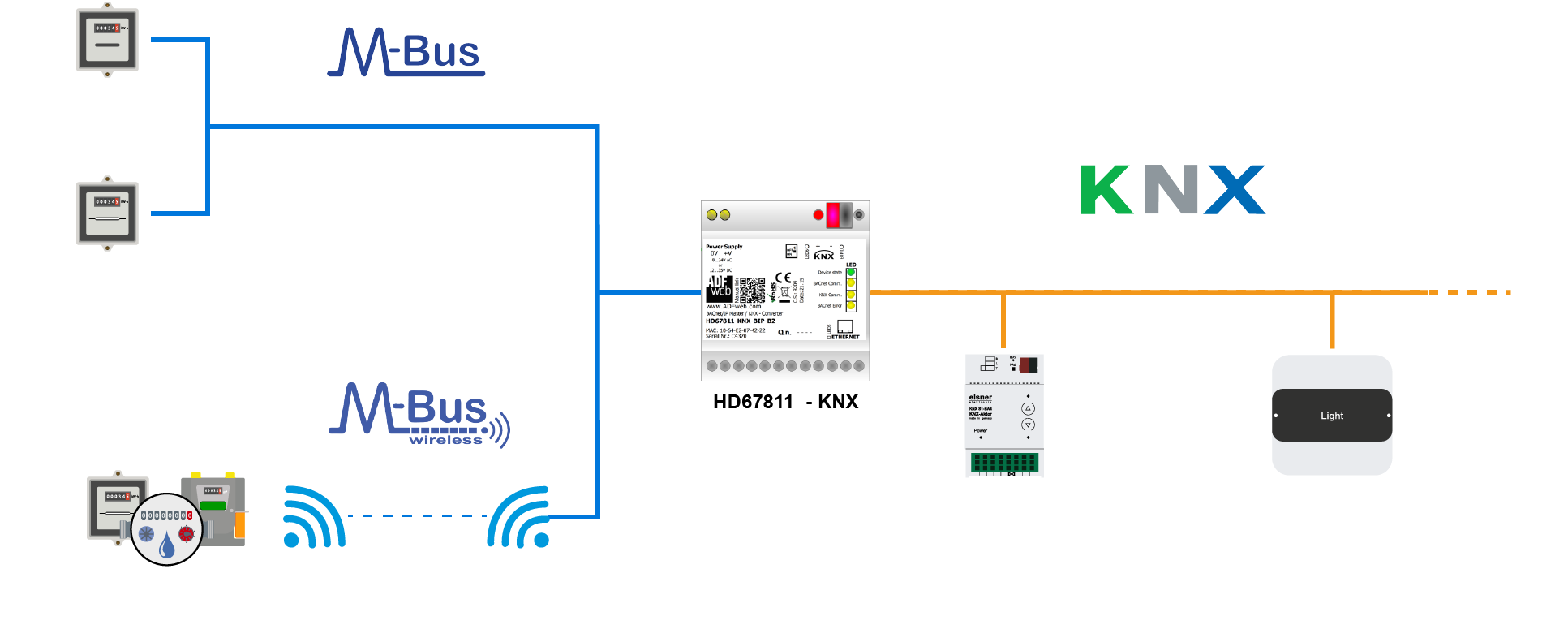

This series of products allows to integrate a M-Bus network with a KNX net.

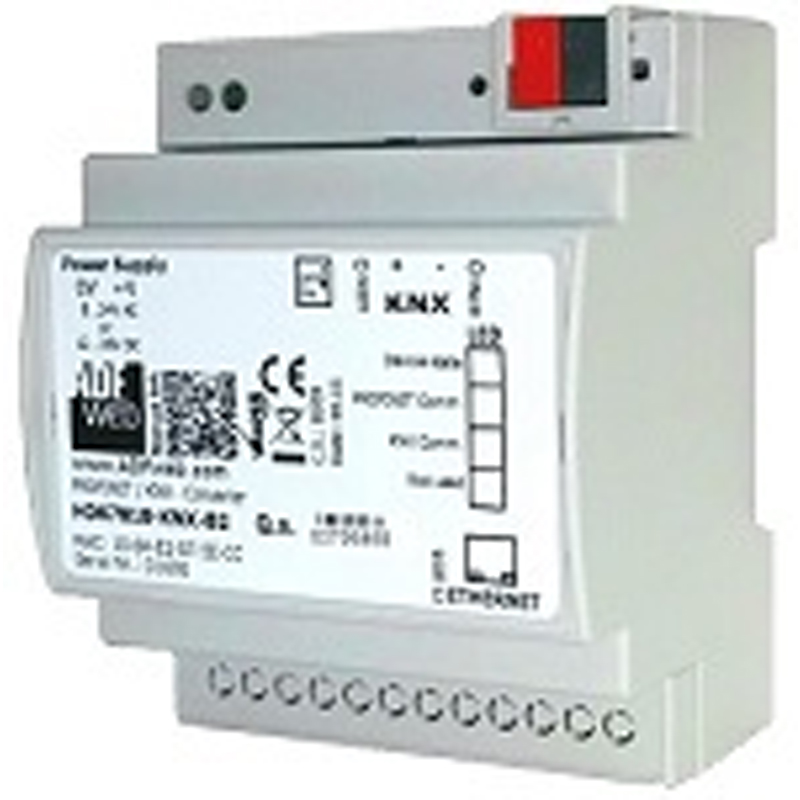

The HD67811 is a M-Bus / KNX Converter and it allows you to connect some M-Bus Slaves (for example Kamstrup, Sontex, Aquametro, Siemens and so on) with a KNX net (for example light switches, actuators ).
On M-Bus side, it can feed up to 250 M-bus slaves, in relation to the order code.
This converters are very easy to configure and allows you to interface a M-Bus system with the KNX world.
On KNX side you can connect all the common KNX devices such as temperature sensors, shutters, light switches, actuators, alarms etc.
The converters are available also in another version, with M-Bus Wireless port.
Series Only M-Bus Port
HD67811-KNX-B2-20
M-Bus / KNX - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX; 1xM-Bus | |
|---|---|---|
| KNX Protocol | KNX TP | |
| M-Bus Protocol | M-Bus master | |
| Data Rates KNX | 9600 bit/s | |
| Data Rates M-Bus | Up to 38400 bps | |
| KNX Connector | KNX Bus connector | |
| M-Bus Connector | 2way 5mm terminal block | |
| Power Supply | 15..21V AC; 18..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67811 | |
HD67811-KNX-B2-40
M-Bus / KNX - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX; 1xM-Bus | |
|---|---|---|
| KNX Protocol | KNX TP | |
| M-Bus Protocol | M-Bus master | |
| Data Rates KNX | 9600 bit/s | |
| Data Rates M-Bus | Up to 38400 bps | |
| KNX Connector | KNX Bus connector | |
| M-Bus Connector | 2way 5mm terminal block | |
| Power Supply | 15..21V AC; 18..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67811 | |
HD67811-KNX-B2-80
M-Bus / KNX - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX; 1xM-Bus | |
|---|---|---|
| KNX Protocol | KNX TP | |
| M-Bus Protocol | M-Bus master | |
| Data Rates KNX | 9600 bit/s | |
| Data Rates M-Bus | Up to 38400 bps | |
| KNX Connector | KNX Bus connector | |
| M-Bus Connector | 2way 5mm terminal block | |
| Power Supply | 15..21V AC; 18..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67811 | |
HD67811-KNX-B2-160
M-Bus / KNX - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX; 1xM-Bus | |
|---|---|---|
| KNX Protocol | KNX TP | |
| M-Bus Protocol | M-Bus master | |
| Data Rates KNX | 9600 bit/s | |
| Data Rates M-Bus | Up to 38400 bps | |
| KNX Connector | KNX Bus connector | |
| M-Bus Connector | 2way 5mm terminal block | |
| Power Supply | 15..21V AC; 18..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67811 | |
HD67811-KNX-B2-250
M-Bus / KNX - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX; 1xM-Bus | |
|---|---|---|
| KNX Protocol | KNX TP | |
| M-Bus Protocol | M-Bus master | |
| Data Rates KNX | 9600 bit/s | |
| Data Rates M-Bus | Up to 38400 bps | |
| KNX Connector | KNX Bus connector | |
| M-Bus Connector | 2way 5mm terminal block | |
| Power Supply | 15..21V AC; 18..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67811 | |
Series M-Bus Wireless Port + M-Bus Port (868 MHz)
HD67811-KNX-B2-868MHz-20
M-Bus Wireless / KNX - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX; 1xM-Bus; 1xM-Bus Wireless | |
|---|---|---|
| KNX Protocol | KNX TP | |
| M-Bus Protocol | M-Bus master | |
| Data Rates KNX | 9600 bit/s | |
| Data Rates M-Bus | Up to 38400 bps | |
| KNX Connector | KNX Bus connector | |
| M-Bus Connector | 2way 5mm terminal block | |
| M-Bus Wireless Frequency | 868 MHz | |
| M-Bus Wireless Connector | SMA Female Antenna | |
| Power Supply | 15..21V AC; 18..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67811 | |
HD67811-KNX-B2-868MHz-40
M-Bus Wireless / KNX - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX; 1xM-Bus; 1xM-Bus Wireless | |
|---|---|---|
| KNX Protocol | KNX TP | |
| M-Bus Protocol | M-Bus master | |
| Data Rates KNX | 9600 bit/s | |
| Data Rates M-Bus | Up to 38400 bps | |
| KNX Connector | KNX Bus connector | |
| M-Bus Connector | 2way 5mm terminal block | |
| M-Bus Wireless Frequency | 868 MHz | |
| M-Bus Wireless Connector | SMA Female Antenna | |
| Power Supply | 15..21V AC; 18..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67811 | |
HD67811-KNX-B2-868MHz-80
M-Bus Wireless / KNX - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX; 1xM-Bus; 1xM-Bus Wireless | |
|---|---|---|
| KNX Protocol | KNX TP | |
| M-Bus Protocol | M-Bus master | |
| Data Rates KNX | 9600 bit/s | |
| Data Rates M-Bus | Up to 38400 bps | |
| KNX Connector | KNX Bus connector | |
| M-Bus Connector | 2way 5mm terminal block | |
| M-Bus Wireless Frequency | 868 MHz | |
| M-Bus Wireless Connector | SMA Female Antenna | |
| Power Supply | 15..21V AC; 18..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67811 | |
HD67811-KNX-B2-868MHz-160
M-Bus Wireless / KNX - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX; 1xM-Bus; 1xM-Bus Wireless | |
|---|---|---|
| KNX Protocol | KNX TP | |
| M-Bus Protocol | M-Bus master | |
| Data Rates KNX | 9600 bit/s | |
| Data Rates M-Bus | Up to 38400 bps | |
| KNX Connector | KNX Bus connector | |
| M-Bus Connector | 2way 5mm terminal block | |
| M-Bus Wireless Frequency | 868 MHz | |
| M-Bus Wireless Connector | SMA Female Antenna | |
| Power Supply | 15..21V AC; 18..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67811 | |
HD67811-KNX-B2-868MHz-250
M-Bus Wireless / KNX - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX; 1xM-Bus; 1xM-Bus Wireless | |
|---|---|---|
| KNX Protocol | KNX TP | |
| M-Bus Protocol | M-Bus master | |
| Data Rates KNX | 9600 bit/s | |
| Data Rates M-Bus | Up to 38400 bps | |
| KNX Connector | KNX Bus connector | |
| M-Bus Connector | 2way 5mm terminal block | |
| M-Bus Wireless Frequency | 868 MHz | |
| M-Bus Wireless Connector | SMA Female Antenna | |
| Power Supply | 15..21V AC; 18..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67811 | |
Series M-Bus Wireless Port + M-Bus Port (169 MHz)
HD67811-KNX-B2-169MHz-20
M-Bus Wireless / KNX - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX; 1xM-Bus; 1xM-Bus Wireless | |
|---|---|---|
| KNX Protocol | KNX TP | |
| M-Bus Protocol | M-Bus master | |
| Data Rates KNX | 9600 bit/s | |
| Data Rates M-Bus | Up to 38400 bps | |
| KNX Connector | KNX Bus connector | |
| M-Bus Connector | 2way 5mm terminal block | |
| M-Bus Wireless Frequency | 169 MHz | |
| M-Bus Wireless Connector | SMA Female Antenna | |
| Power Supply | 15..21V AC; 18..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67811 | |
HD67811-KNX-B2-169MHz-40
M-Bus Wireless / KNX - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX; 1xM-Bus; 1xM-Bus Wireless | |
|---|---|---|
| KNX Protocol | KNX TP | |
| M-Bus Protocol | M-Bus master | |
| Data Rates KNX | 9600 bit/s | |
| Data Rates M-Bus | Up to 38400 bps | |
| KNX Connector | KNX Bus connector | |
| M-Bus Connector | 2way 5mm terminal block | |
| M-Bus Wireless Frequency | 169 MHz | |
| M-Bus Wireless Connector | SMA Female Antenna | |
| Power Supply | 15..21V AC; 18..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67811 | |
HD67811-KNX-B2-169MHz-80
M-Bus Wireless / KNX - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX; 1xM-Bus; 1xM-Bus Wireless | |
|---|---|---|
| KNX Protocol | KNX TP | |
| M-Bus Protocol | M-Bus master | |
| Data Rates KNX | 9600 bit/s | |
| Data Rates M-Bus | Up to 38400 bps | |
| KNX Connector | KNX Bus connector | |
| M-Bus Connector | 2way 5mm terminal block | |
| M-Bus Wireless Frequency | 169 MHz | |
| M-Bus Wireless Connector | SMA Female Antenna | |
| Power Supply | 15..21V AC; 18..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67811 | |
HD67811-KNX-B2-169MHz-160
M-Bus Wireless / KNX - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX; 1xM-Bus; 1xM-Bus Wireless | |
|---|---|---|
| KNX Protocol | KNX TP | |
| M-Bus Protocol | M-Bus master | |
| Data Rates KNX | 9600 bit/s | |
| Data Rates M-Bus | Up to 38400 bps | |
| KNX Connector | KNX Bus connector | |
| M-Bus Connector | 2way 5mm terminal block | |
| M-Bus Wireless Frequency | 169 MHz | |
| M-Bus Wireless Connector | SMA Female Antenna | |
| Power Supply | 15..21V AC; 18..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67811 | |
HD67811-KNX-B2-169MHz-250
M-Bus Wireless / KNX - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX; 1xM-Bus; 1xM-Bus Wireless | |
|---|---|---|
| KNX Protocol | KNX TP | |
| M-Bus Protocol | M-Bus master | |
| Data Rates KNX | 9600 bit/s | |
| Data Rates M-Bus | Up to 38400 bps | |
| KNX Connector | KNX Bus connector | |
| M-Bus Connector | 2way 5mm terminal block | |
| M-Bus Wireless Frequency | 169 MHz | |
| M-Bus Wireless Connector | SMA Female Antenna | |
| Power Supply | 15..21V AC; 18..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67811 | |
Series Only M-Bus Wireless Port
HD67811-KNX-B2-169MHz-0
M-Bus Wireless / KNX - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX; 1xM-Bus Wireless | |
|---|---|---|
| KNX Protocol | KNX TP | |
| M-Bus Wireless Protocol | M-Bus Wireless N1&N2 / S1&T1 communication | |
| Data Rates KNX | 9600 bit/s | |
| M-Bus Wireless Frequency | 169 MHz | |
| KNX Connector | KNX Bus connector | |
| M-Bus Wireless Connector | SMA Female Antenna | |
| Power Supply | 15..21V AC; 18..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67811 | |
HD67811-KNX-B2-868MHz-0
M-Bus Wireless / KNX - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX; 1xM-Bus Wireless | |
|---|---|---|
| KNX Protocol | KNX TP | |
| M-Bus Wireless Protocol | M-Bus Wireless N1&N2 / S1&T1 communication | |
| Data Rates KNX | 9600 bit/s | |
| M-Bus Wireless Frequency | 868 MHz | |
| KNX Connector | KNX Bus connector | |
| M-Bus Wireless Connector | SMA Female Antenna | |
| Power Supply | 15..21V AC; 18..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67811 | |
Accessories
| Order Code | Description |
|---|---|
| APW020 | Power Supply for M-Bus Master device that supports up to 20 Slaves |
| APW040 | Power Supply for M-Bus Master device that supports up to 40 Slaves |
| APW080 | Power Supply for M-Bus Master device that supports up to 80 Slaves |
| APW160 | Power Supply for M-Bus Master device that supports up to 160 Slaves |
| APW250 | Power Supply for M-Bus Master device that supports up to 250 Slaves |
| AC34-AB1TP | KNX Power Supply - KNX out 640mA - in 240VAC |
| AC34-AG1TP | KNX Power Supply - KNX out 640mA + AUX out 30VDC - in 240VAC |
