KNX to Ethernet
Part No.: MPADFW-KNX-to-Ethernet
The Ethernet / KNX - Interface HD67825-KNX-E-B2 allows to make the connection between a desktop PC or a laptop and an existing KNX system/device trought a LAN network.
產品介紹
Ethernet / KNX - Interface

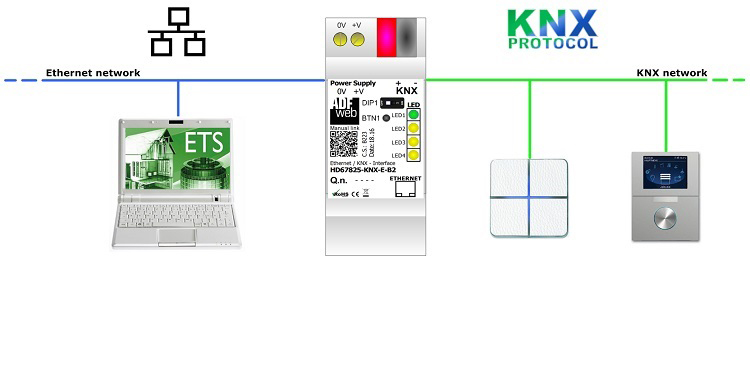

The Ethernet / KNX - Interface HD67825-KNX-E-B2 allows to make the connection between a desktop PC or a laptop and an existing KNX system/device trought a LAN network.
The HD67825 supports the tunneling protocol and it allows the addressing, parametrization, visualization and diagnosis of the KNX devices trought ETS software.
The Ethernet / KNX - Interface allows to access to the KNX network locally or remotely thanks to a simple LAN connection.

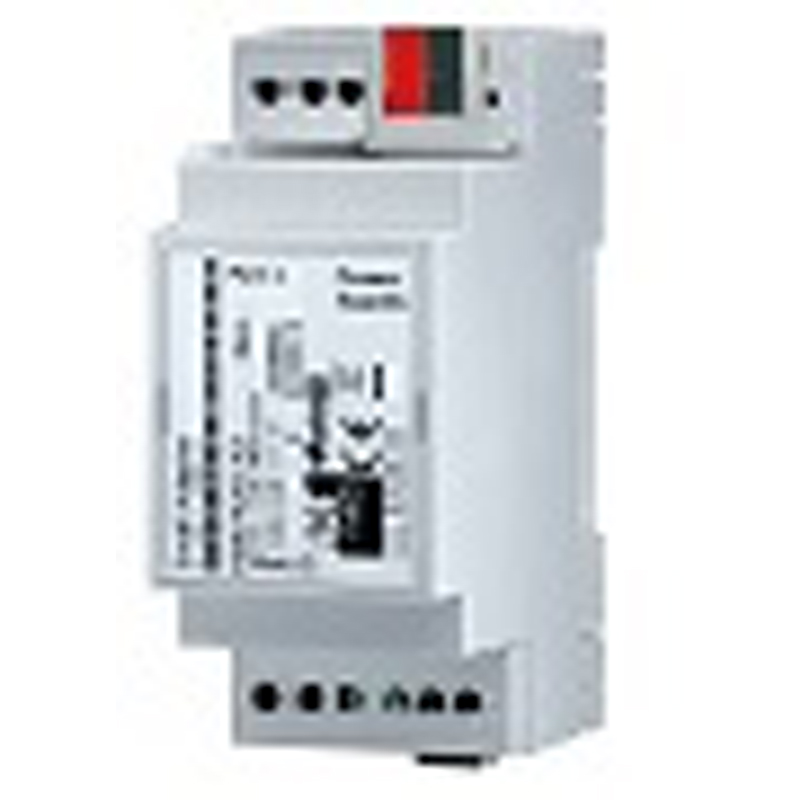

HD67825-KNX-E-B2
Ethernet / KNX - Interface ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX; 1xEthernet | |
|---|---|---|
| KNX Protocol | KNX TP | |
| Data Rates KNX | 9600 bit/s | |
| Data Rates Ethernet | 10/100 Base-T Autosensing | |
| KNX Connector | KNX Bus connector | |
| Ethernet Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 36x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67825 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
