J1939 to CAN

Part No.: MPADFW-J1939-to-CAN
This series of products allows to integrate a J1939 network with a CAN net.

產品介紹

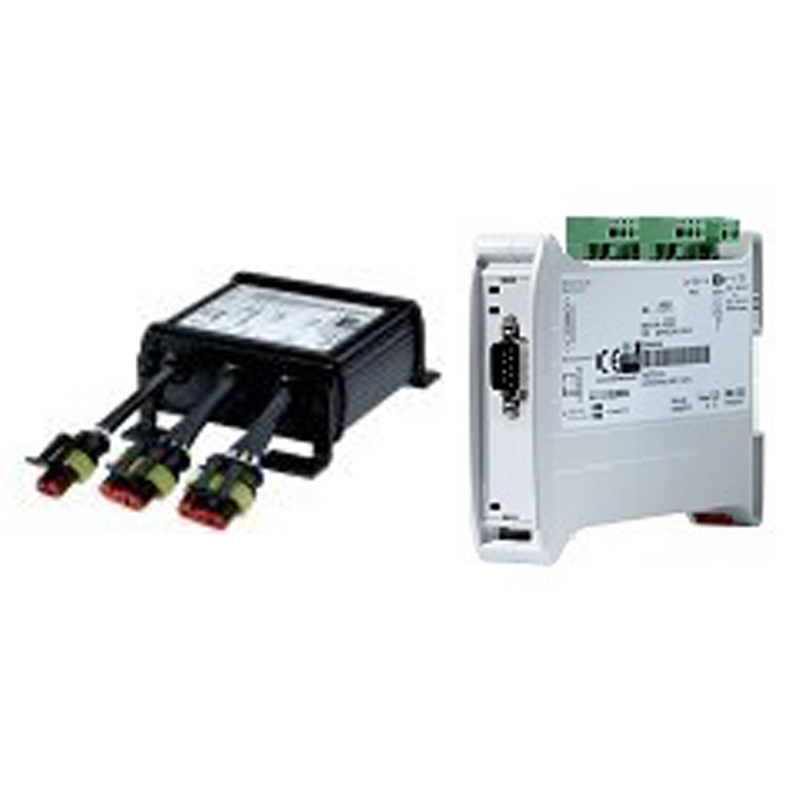

J1939 / CAN - Converter

This series of products allows to integrate a J1939 network with a CAN net.

The HD67047 is a J1939 / CAN Converter and it allows you to connect a J1939 net (for example a common engines based on SAE J1939, joysticks ) with a CAN network in order to exchange the informations between the networks.

The converters are available also in another version, ideal for STRONG applications.

The corresponding models are:

  • HD67439 - J1939 / CAN, STRONG Converter

These converters are contained in a metal housing, so it is STRONG and RESISTANT to the vibrations and shocks. The electrical parts are with triple isolation of 4000 V between J1939/CAN - J1939/Power Supply - CAN/Power Supply.
Particularly suitable for the installation on cars, trains, boats, industrial sector and in fragile environments.
Two versions, one with Varnished PCB and one with Resined PCB.
Varnished treatment gives dust and humidity protection, Resined treatment gives high water, dust and vibrations protection.
Excellent range of temperature resistance from -40 C to +105 C, features required by AUTOMOTIVE applications.



HD67047-A1

J1939 / CAN - Converter ( Housing type: A, Terminal Blocks connectors )





Ports 1xCAN; 1xJ1939
Data Rates J1939 Up to 1 Mbps
Data Rates CAN Up to 1 Mbps
J1939 Connector 3way 5mm terminal block
CAN Connector 3way 5mm terminal block
Power Supply 8..24V AC; 12..35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Software SW67047



J1939 / CAN - Converter

Products supplied with metal housing (Housing type: E), are STRONG and RESISTANT to mechanical stress (such as vibration and shock), electrical parts with a triple insulation 4 kV
between CAN/J1939 - CAN/Power Supply – J1939/Power Supply.

Particularly suitable for installation in cars, trucks, trains, boats, in the industrial sector and in fragile environments.

Two versions, one with a coating of the PCB (suffix code V) that ensures total protection to the dust (IP65) and another encapsulation-based resin (suffix code R) which gives to device the high performance safety and insulation for wet environments (IP67) and to resist to noise.

This product can be mounted on any type of surface (horizontal, vertical and oblique) with four fixing lugs, also you can choose the type of connector, Mini-Fit or Superseal 1.5.

Excellent range of temperature resistance from -40 ° C to +105 ° C, features required by AUTOMOTIVE.



HD67439-E4V

J1939 / CAN - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )





Ports 1xCAN; 1xJ1939
Data Rates J1939 Up to 1 Mbps
Data Rates CAN Up to 1 Mbps
J1939 Connector 3way Mini-Fit®
CAN Connector 3way Mini-Fit®
Power Supply Connector 2way Mini-Fit®
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67439



HD67439-E4R

J1939 / CAN - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )





Ports 1xCAN; 1xJ1939
Data Rates J1939 Up to 1 Mbps
Data Rates CAN Up to 1 Mbps
J1939 Connector 3way Mini-Fit®
CAN Connector 3way Mini-Fit®
Power Supply Connector 2way Mini-Fit®
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67439



HD67439-E7V

J1939 / CAN - Converte ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )





Ports 1xCAN; 1xJ1939
Data Rates J1939 Up to 1 Mbps
Data Rates CAN Up to 1 Mbps
J1939 Connector 3way SuperSeal 1.5
CAN Connector 3way SuperSeal 1.5
Power Supply Connector 2way SuperSeal 1.5
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40ºC/+105ºC (-40ºF/+221ºF)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67439



HD67439-E7R

J1939 / CAN - Converte ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )





Ports 1xCAN; 1xJ1939
Data Rates J1939 Up to 1 Mbps
Data Rates CAN Up to 1 Mbps
J1939 Connector 3way SuperSeal 1.5
CAN Connector 3way SuperSeal 1.5
Power Supply Connector 2way SuperSeal 1.5
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40ºC/+105ºC (-40ºF/+221ºF)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67439



Accessories


Order Code Description
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC



Benefits

  • Software for easy configurator
  • Designed for serius use
  • Very easy to configure
  • Low cost
  • Rail din mountable
  • Wide supply input range
  • Galvanic isolation
  • Industrial temperature range:  -30° / 70° (-22°F / 158°F)
