J1939 to BACnet

Part No.: MPADFW-J1939-to-BACnet
This series of products allows to integrate a BACnet network with a J1939 net.

產品介紹

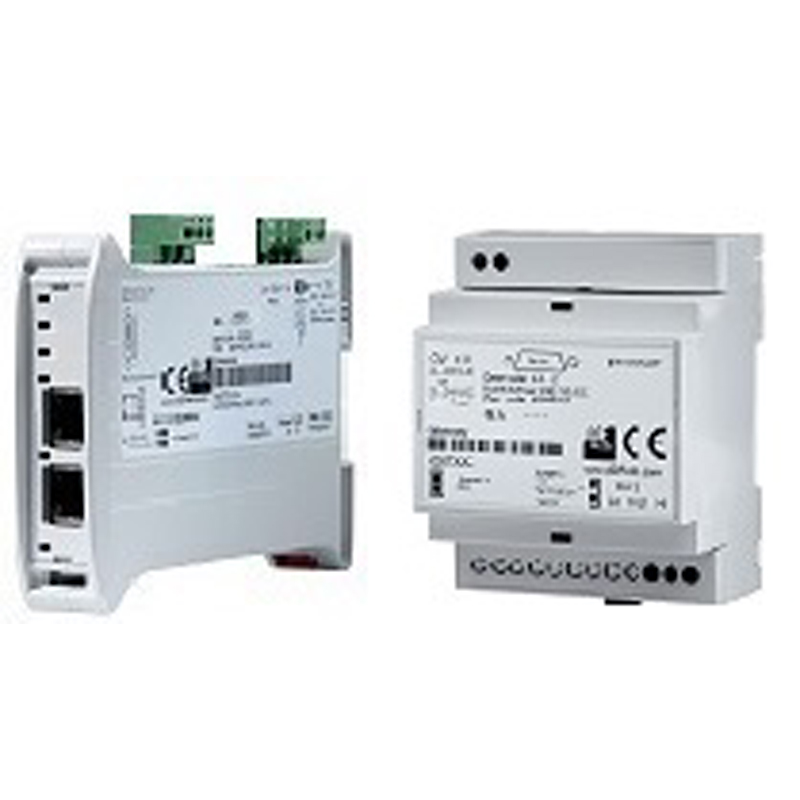

BACnet / J1939 - Converter

This series of products allows to integrate a BACnet network with a J1939 net.

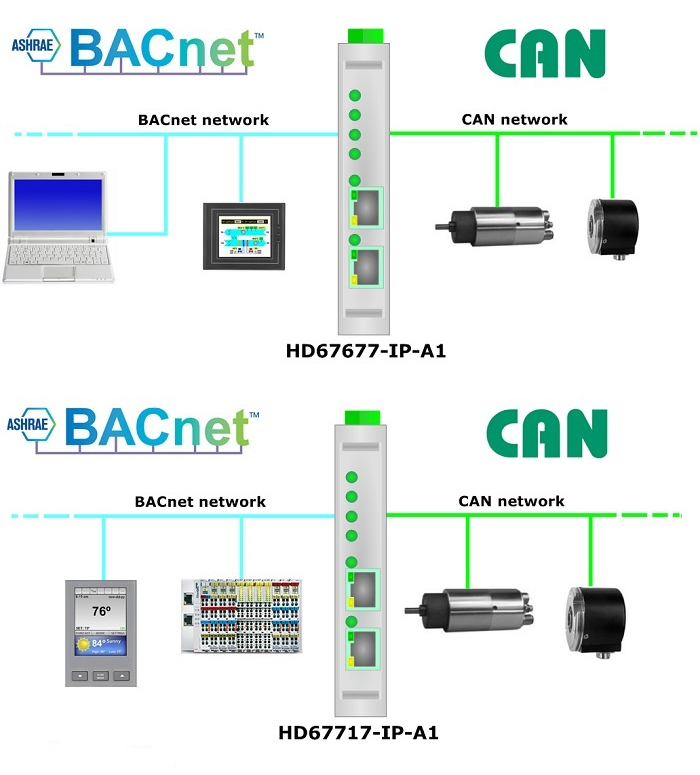

The HD67685 is a BACnet Slave / J1939 Converter and it allows you to connect a BACnet Master net with a J1939 net (for example common engines like CAT, Iveco, Volvo...) in order to exchange the informations between the networks.

The HD67725 is a BACnet Master / J1939 Converter and it allows you to connect some BACnet Slaves devices with a J1939 net (for example common engines like CAT, Iveco, Volvo...) in order to exchange the informations between the networks.

HD67685-IP, HD67725-IP support both BACnet/IP and BACnet/Ethernet.
The connection to BACnet is done over Ethernet.

HD67685-MSTP, HD67725-MSTP supports BACnet MSTP.
The connection to BACnet is done over RS485.



BACnet Slave / J1939 series



HD67685-IP-A1

BACNet IP / J1939 - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 2xEthernet; 1xCAN
CAN Protocol J1939
BACnet Protocol BACNet IP Slave
Data Rates CAN Up to 1 Mbps
Data Rates BACnet 10/100 Base-T Autosensing
CAN Connector 3way 5mm terminal block
BACnet Connector RJ45
Power Supply 8..24V AC; 12..35V DC
Power Supply Connector 2way 5mm terminal block
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing 35mm DIN Rail montage
Software SW67683



HD67685-MSTP-A1

BACnet MSTP Slave / J1939 - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 1xCAN; 1xRS485; 1xEthernet
CAN Protocol J1939
BACnet Protocol BACnet MS/TP Slave
Data Rates CAN Up to 1 Mbps
Data Rates BACnet Up to 115200 bps
CAN Connector 3way 5mm terminal block
BACnet Connector 3way 5mm terminal block
Power Supply 8..24V AC; 12..35V DC
Power Supply Connector 2way 5mm terminal block
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing 35mm DIN Rail montage
Software SW67685



HD67685-MSTP-B2

BACnet MSTP Slave / J1939 - Converter ( Housing type: B, Terminal Blocks Connectors )





Ports 1xRS485; 1xEthernet
CAN Protocol J1939
BACnet Protocol BACnet MS/TP Slave
Data Rates CAN Up to 1 Mbps
Data Rates BACnet Up to 115200 bps
CAN Connector 3way 5mm terminal block
BACnet Connector 3way 5mm terminal block
Power Supply 8..24V AC; 12..35V DC
Power Supply Connector 2way 5mm terminal block
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 71x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing 35mm DIN Rail montage
Software SW67685



BACnet Master / J1939 series



HD67725-IP-A1

BACNet IP Master/ J1939 - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 2xEthernet; 1xCAN
CAN Protocol J1939
BACnet Protocol BACNet IP Master
Data Rates CAN Up to 1 Mbps
Data Rates BACnet 10/100 Base-T Autosensing
CAN Connector 3way 5mm terminal block
BACnet Connector RJ45
Power Supply 8..24V AC; 12..35V DC
Power Supply Connector 2way 5mm terminal block
Operating Temperature
-40° to +85° (-40°F to +185°F)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing 35mm DIN Rail montage
Software SW67725



HD67725-MSTP-A1

BACnet MSTP Master / J1939 - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 1xCAN; 1xRS485; 1xEthernet
CAN Protocol J1939
BACnet Protocol BACnet MS/TP Master
Data Rates CAN 100 Base-T autosensing
Data Rates BACnet Up to 115200 bps
CAN Connector 3way 5mm terminal block
BACnet Connector 3way 5mm terminal block
Power Supply 8..24V AC; 12..35V DC
Power Supply Connector 2way 5mm terminal block
Operating Temperature
-40° to +85° (-40°F to +185°F)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing 35mm DIN Rail montage
Software SW67725



HD67725-MSTP-B2

BACnet MSTP Master / J1939 - Converter ( Housing type: B, Terminal Blocks Connectors )





Ports 1xCAN; 1xRS485; 1xEthernet
CAN Protocol J1939
BACnet Protocol BACnet MS/TP Master
Data Rates CAN 100 Base-T autosensing
Data Rates BACnet Up to 115200 bps
CAN Connector 3way 5mm terminal block
BACnet Connector
3way 5mm terminal block
Power Supply 8..24V AC; 12..35V DC
Power Supply Connector 2way 5mm terminal block
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 71x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing 35mm DIN Rail montage
Software SW67725



Accessories


Order Code Description
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC
