J1939 to 232/ 485

Part No.: MPADFW-J1939-to-232-485
This series of products allows to integrate a J1939 network with a Modbus net.

產品介紹

J1939 / Modbus - Converter

This series of products allows to integrate a J1939 network with a Modbus net.

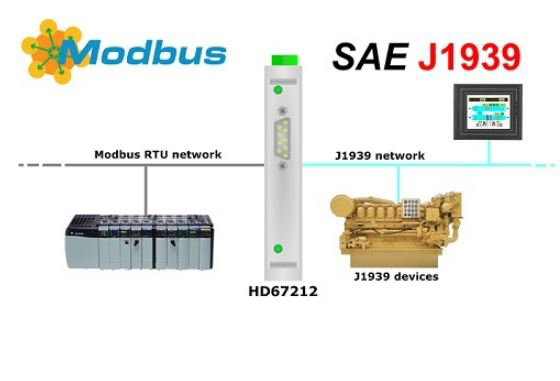

The HD67212 is a J1939 / Modbus Slave Converter and it allows you to connect some J1939 devices like the common engines based on SAE J1939, CAT, Cummins, Iveco, MTU, Perkins, Volvo, etc with a Modbus Master (for example a PC, Supervisory System...) in order to exchange the informations between the networks.

The HD67050 is a J1939 / Modbus Master Converter and it allows you to connect some Modbus RTU slaves with an existing J1939 network.

The HD67215 is a J1939 / Modbus TCP Slave Converter and it allows you to connect a J1939 network with a Modbus TCP Master (for example a PLC, SCADA...) in order to exchange the informations between the networks.

The converters are available also in another version, ideal for STRONG applications.


The corresponding models are:

  • HD67431 - J1939 / Modbus Master, STRONG Converter
  • HD67432 - J1939 / Modbus Slave, STRONG Converter

These converters are contained in a metal housing, so it is STRONG and RESISTANT to the vibrations and shocks. The electrical parts are with triple isolation of 4000 V between J1939/Modbus - J1939/Power Supply - Modbus/Power Supply.

Particularly suitable for the installation on cars, trains, boats, industrial sector and in fragile environments.

Two versions, one with Varnished PCB and one with Resined PCB.

Varnished treatment gives dust and humidity protection, Resined treatment gives high water, dust and vibrations protection.

Excellent range of temperature resistance from -40°C to +105°C, features required by AUTOMOTIVE applications.



Series J1939 from/to Modbus RTU Slave



HD67212

J1939 / Modbus Slave - Converter ( Housing type: A, Terminal Blocks Connectors, Galvanic Isolation: 1KV )




Ports 1xJ1939; 1xRS485;  1xRS232
J1939 Connector Terminal block
Ethernet Connector RJ45
RS232 Connector D-SUB9
Data Rates J1939 250 Kbps
Data Rates Modbus Up to 115 Kbps
Power Supply 10...19V AC ; 10...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage



J1939 / Modbus Slave Converter

Products supplied with metal housing (Housing type: E), are STRONG and RESISTANT to mechanical stress (such as vibration and shock), electrical parts with a triple isolation 4 kV between J1939/RS485 - J1939/Power Supply – RS485/Power Supply.

Particularly suitable for installation in cars, trucks, trains, boats, in the industrial sector and in fragile environments. .

Two versions, one with a coating of the PCB (suffix code V) that ensures IP65 and another encapsulation with resin (suffix code R) which gives to device the high performance safety and insulation for wet environments (IP67) and to resist to noise. .

This product can be mounted on any type of surface (horizontal, vertical and oblique) with four fixing lugs, also you can choose the type of connector, Mini-Fit or Superseal 1.5. .

Excellent range of temperature resistance from -40 ° C to +105 ° C, features required by AUTOMOTIVE.



HD67432-E4V

J1939 / Modbus TCP Slave - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )





Ports 1xRS485; 1xJ1939
Data Rates J1939 250 kbps
Data Rates Modbus Up to 115 Kbps
J1939 Connector 3way Mini-Fit®
Modbus Connector Mini-Fit
Power Supply Connector 2way Mini-Fit®
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67432



HD67432-E4R

J1939 / Modbus TCP Slave - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )





Ports 1xRS485; 1xJ1939
Data Rates J1939 250 kbps
Data Rates Modbus Up to 115 Kbps
J1939 Connector 3way Mini-Fit®
Modbus Connector Mini-Fit
Power Supply Connector 2way Mini-Fit®
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67432



HD67432-E7V

J1939 / Modbus Slave - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )





Ports 1xRS485; 1xCJ1939
Data Rates J1939 250 kbps
Data Rates Modbus Up to 115 Kbps
J1939 Connector 3way SuperSeal 1.5
Modbus Connector AMP SuperSeal 1.5
Power Supply Connector 2way SuperSeal 1.5
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40ºC/+105ºC (-40ºF/+221ºF)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67432





HD67432-E7R

J1939 / Modbus Slave - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )




Ports 1xRS485; 1xCJ1939
Data Rates J1939 250 kbps
Data Rates Modbus Up to 115 Kbps
J1939 Connector 3way SuperSeal 1.5
Modbus Connector AMP SuperSeal 1.5
Power Supply Connector 2way SuperSeal 1.5
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40ºC/+105ºC (-40ºF/+221ºF)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67432



Series J1939 from/to Modbus RTU Master



HD67050

J1939 / Modbus Master - Converter ( Housing type: A, Terminal Blocks Connectors, Galvanic Isolation: 1KV )




Ports 1xJ1939; 1xRS485; 1xRS232
J1939 Connector Terminal block
Ethernet Connector RJ45
RS232 Connector D-SUB9
Data Rates J1939 250 Kbps
Data Rates Modbus Up to 115 Kbps
Power Supply 8...19V AC ; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67050



HD67050M

J1939 / Modbus Master - Converter ( Housing type: B, Terminal Blocks Connectors, Galvanic Isolation: 1KV )





Ports 1xJ1939; 1xRS485; 1xRS232
J1939 Connector Terminal block
Ethernet Connector RJ45
RS232 Connector D-SUB9
Data Rates J1939 250 Kbps
Data Rates Modbus Up to 115 Kbps
Power Supply 8...19V AC ; 8...35V DC
Operating Temperature -40ºC/+85ºC(-40ºF/+185ºF)
Dimensions 71x60x95 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67050



J1939 / Modbus Master Converter

Products supplied with metal housing (Housing type: E), are STRONG and RESISTANT to mechanical stress (such as vibration and shock), electrical parts with a triple isolation 4 kV between J1939/RS485 - J1939/Power Supply – RS485/Power Supply.

Particularly suitable for installation in cars, trucks, trains, boats, in the industrial sector and in fragile environments. .

Two versions, one with a coating of the PCB (suffix code V) that ensures IP65 and another encapsulation with resin (suffix code R) which gives to device the high performance safety and insulation for wet environments (IP67) and to resist to noise. .

This product can be mounted on any type of surface (horizontal, vertical and oblique) with four fixing lugs, also you can choose the type of connector, Mini-Fit or Superseal 1.5. .

Excellent range of temperature resistance from -40 ° C to +105 ° C, features required by AUTOMOTIVE.



HD67431-E4V

J1939 / Modbus Master - Converter (Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )





Ports 1xRS485; 1xJ1939
Data Rates J1939 250 kbps
Data Rates Modbus Up to 115 Kbps
J1939 Connector 3way Mini-Fit®
Modbus Connector Mini-Fit
Power Supply Connector 2way Mini-Fit®
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67431



HD67431-E4R

J1939 / Modbus Master - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )




Ports 1xRS485; 1xJ1939
Data Rates J1939 250 kbps
Data Rates Modbus Up to 115 Kbps
J1939 Connector 3way Mini-Fit®
Modbus Connector Mini-Fit
Power Supply Connector 2way Mini-Fit®
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67431



HD67431-E7V

J1939 / Modbus Master - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )




Ports 1xRS485; 1xJ1939
Data Rates J1939 250 kbps
Data Rates Modbus Up to 115 Kbps
J1939 Connector AMP SuperSeal 1.5
Modbus Connector AMP SuperSeal 1.5
Power Supply Connector 2way SuperSeal 1.5
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40ºC/+105ºC (-40ºF/+221ºF)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67431



HD67431-E7R

J1939 / Modbus Master - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )




Ports 1xRS485; 1xJ1939
Data Rates J1939 250 kbps
Data Rates Modbus Up to 115 Kbps
J1939 Connector AMP SuperSeal 1.5
Modbus Connector AMP SuperSeal 1.5
Power Supply Connector 2way SuperSeal 1.5
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40ºC/+105ºC (-40ºF/+221ºF)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67431



Series J1939 from/to Modbus TCP



HD67215-A1

J1939 / Modbus TCP Slave - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 1xJ1939;  1xEthernet 10/100;  1xRS232
CAN 2.0 Connector Terminal block
RS485 Connector Terminal block
RS232 Connector D-SUB9
Data Rates J1939 250 Kbps
Data Rates Modbus 10/100 MHz Autosensing
Power Supply 8...19V AC ; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage



HD67215-B2

J1939 / Modbus TCP Slave - Converter ( Housing type: B, Terminal Blocks Connectors )





Ports 1xJ1939;  1xEthernet 10/100;  1xRS232
CAN 2.0 Connector Terminal block
RS485 Connector Terminal block
RS232 Connector D-SUB9
Data Rates J1939 250 Kbps
Data Rates Modbus 10/100 MHz Autosensing
Power Supply 8...19V AC ; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 71x60x95 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage


Accessories



Order Code Description
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC
AC34107 Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m
AC34114 Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m



Benefits

  • RS232/485 Selection
  • Support Modbus RTU
  • Software for easy configurator
  • Designed for serius use
  • Very easy to configure
  • Low cost
  • Rail din mountable
  • Wide supply input range
  • Galvanic isolation
  • Industrial temperature range: -30° / 70° (-22°F / 158°F)
