IEC 61850 to EtherNet/IP
Part No.: MPADFW-IEC-61850-to-EthernetIP
This series of products allows to integrate some IEC61850 devices into a EtherNet/IP network.
產品介紹
IEC 61850 / EtherNet/IP - Converter
This series of products allows to integrate some IEC61850 devices into a EtherNet/IP network.

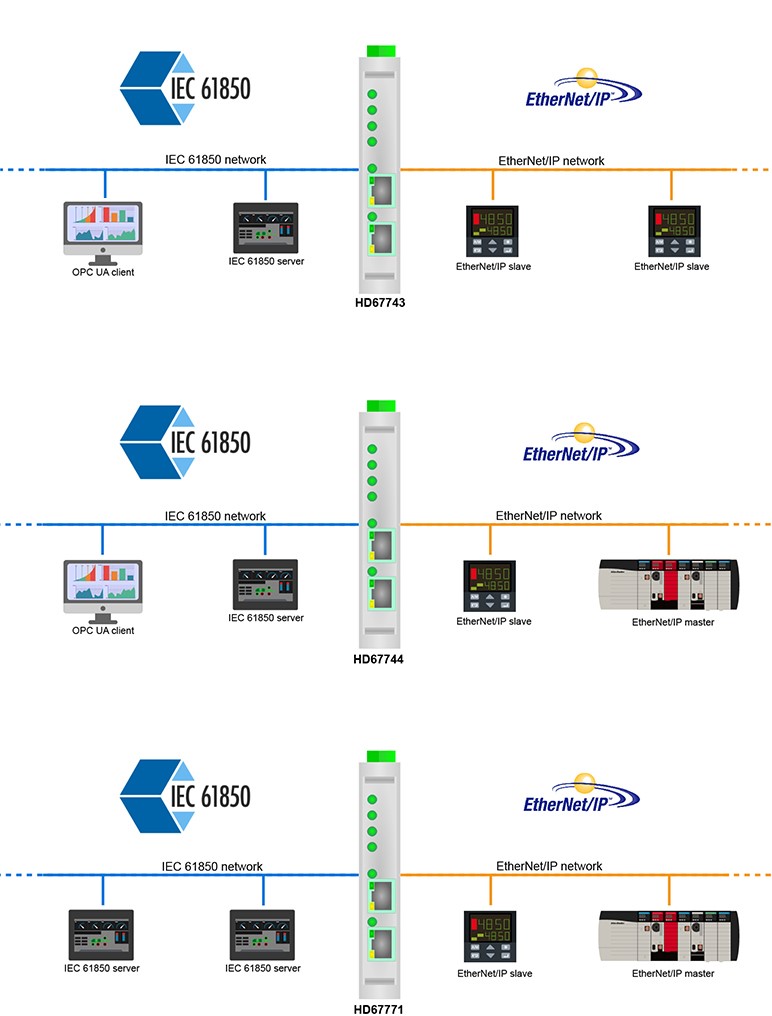

The HD67743-A1 is an IEC 61850 Server / EtherNet/IP Master Converter so you can connect an IEC 61850 Client network (for example a SCADA, HMI etc..) with some EtherNet/IP devices in order to exchange informations between the nets.
The HD67744-A1 is an IEC 61850 Server / EtherNet/IP Slave Converter so you can connect an IEC 61850 Client network (for example a SCADA, HMI etc..) with an EtherNet/IP Master in order to exchange informations between the nets.
The HD67771-A1 is an IEC 61850 Client / EtherNet/IP Slave Converter so you can connect an IEC 61850 Server network (for example a Meters, Switces etc..) with an EtherNet/IP Master in order to exchange informations between the networks.
IEC 61850 Server / EtherNet/IP
HD67743-A1
IEC 61850 Server / EtherNet/IP Master - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 2xEthernet | |
|---|---|---|
| EtherNet/IP Protocol | EtherNet/IP Master | |
| IEC 61850 Protocol | Server | |
| Data Rates EtherNet/IP | 10/100 Base-T Autosensing | |
| Data Rates IEC 61850 | 10/100 Base-T Autosensing | |
| EtherNet/IP Connector | RJ45 | |
| IEC 61850 Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67743 | |
HD67744-A1
IEC 61850 Server / EtherNet/IP Slave - Converter ( Housing type: A, Terminal Blocks Connectors )
| Ports | 2xEthernet | |
|---|---|---|
| EtherNet/IP Protocol | EtherNet/IP Slave | |
| IEC 61850 Protocol | Client | |
| Data Rates EtherNet/IP | Up to 500 kbps | |
| Data Rates IEC 61850 | 10/100 Base-T Autosensing | |
| EtherNet/IP Connector | RJ45 | |
| IEC 61850 Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67744 | |
.jpg)
Accessories
AC34011
Isolated Converter 100..240V AC to 12V DC stabilized AC/DC
| Input Voltage | 100..240V AC 50/60Hz | |
|---|---|---|
| Output Voltage | 12V DC | |
| Dimensions | 53x60x95 mm (DxWxH) | |
| Weight | 400g approx | |
| Mechanical Fixing | DIN Rail montage | |
AC34012
Isolated Converter from 100..240V AC to 24V DC stabilized AC/DC
| Input Voltage | 100..240V AC 50/60Hz | |
|---|---|---|
| Output Voltage | 24V DC | |
| Dimensions | 53x60x95 mm (DxWxH) | |
| Weight | 400g approx | |
| Mechanical Fixing | DIN Rail montage | |
