IEC 61850 to EnOcean
Part No.: MPADFW-IEC-61850-to-EnOcean
This series of products allows to integrate some EnOcean devices into a IEC61850 network.
產品介紹
EnOcean / IEC61850 - Converter
This series of products allows to integrate some EnOcean devices into a IEC61850 network.
The HD67C65 is an EnOcean / IEC61850 Server Converter so you can connect an IEC 61850 Client network (for example a SCADA, HMI etc..) with some EnOcean devices in order to exchange informations between the nets.
EnOcean / IEC61850 Server Converters

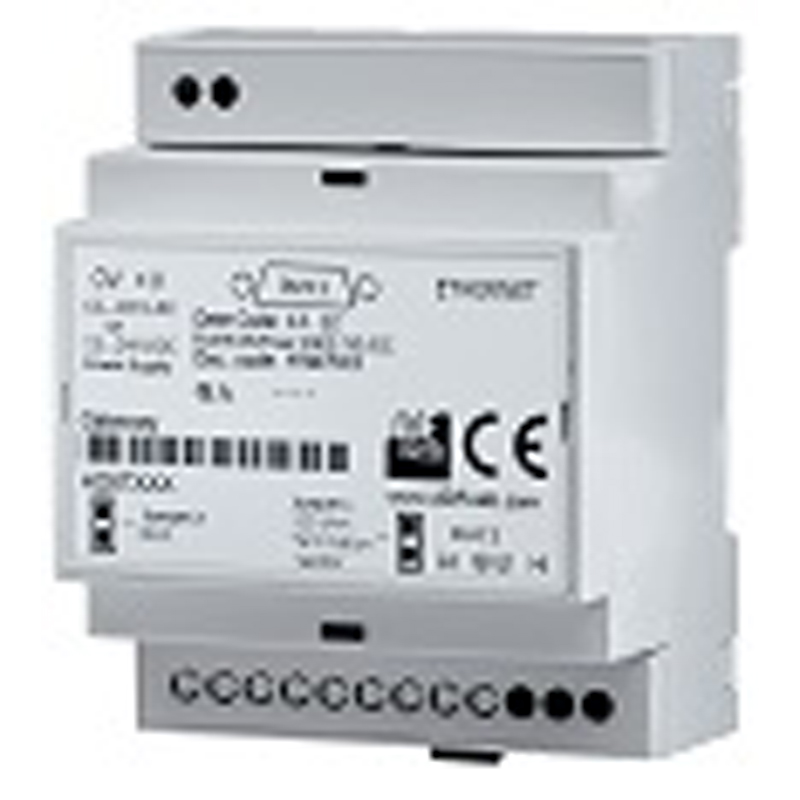

HD67C65-B2
EnOcean / IEC61850 Server - Converter ( Housing type: B, Terminal Blocks Connectors )
| Ports | 1xEthernet | |
|---|---|---|
| IEC61850 Protocol | IEC61850 Server | |
| Ethernet Protocol | EnOcean | |
| Data Rates IEC61850 | 10/100 Base-T Autosensing | |
| Data Rates EnOcean | 10/100 Base-T Autosensing | |
| IEC61850 Connector | RJ45 | |
| EnOcean Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 70x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67C65 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
