Ethernet to IEC 61850

Part No.: MPADFW-Ethernet-to-IEC-61850
This series of products allows to integrate some IEC61850 devices into a Ethernet network.

產品介紹

IEC 61850 / Ethernet - Converter

This series of products allows to integrate some IEC61850 devices into a Ethernet network.

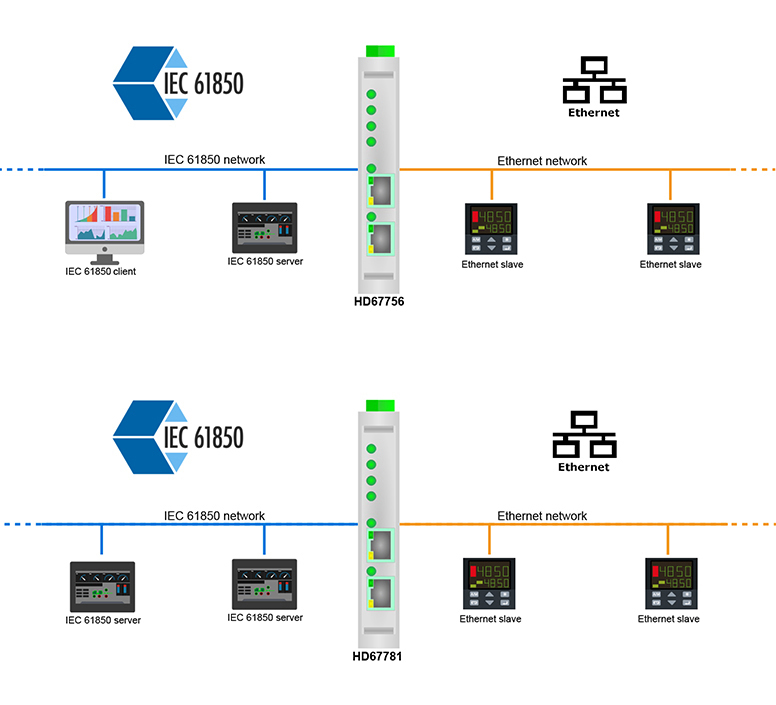

The HD67756-A1 is an IEC 61850 Server / Ethernet Converter so you can connect an IEC 61850 Client network (for example a SCADA, HMI etc..) and interface this by Ethernet in order to exchange informations between the nets.

The HD67781-A1 is an IEC 61850 Client / Ethernet Converter so you can connect an IEC 61850 Server network (for example a Meters, Switces etc..) and interface this by Ethernet in order to exchange informations between the networks.



IEC 61850 / Ethernet



HD67756-A1

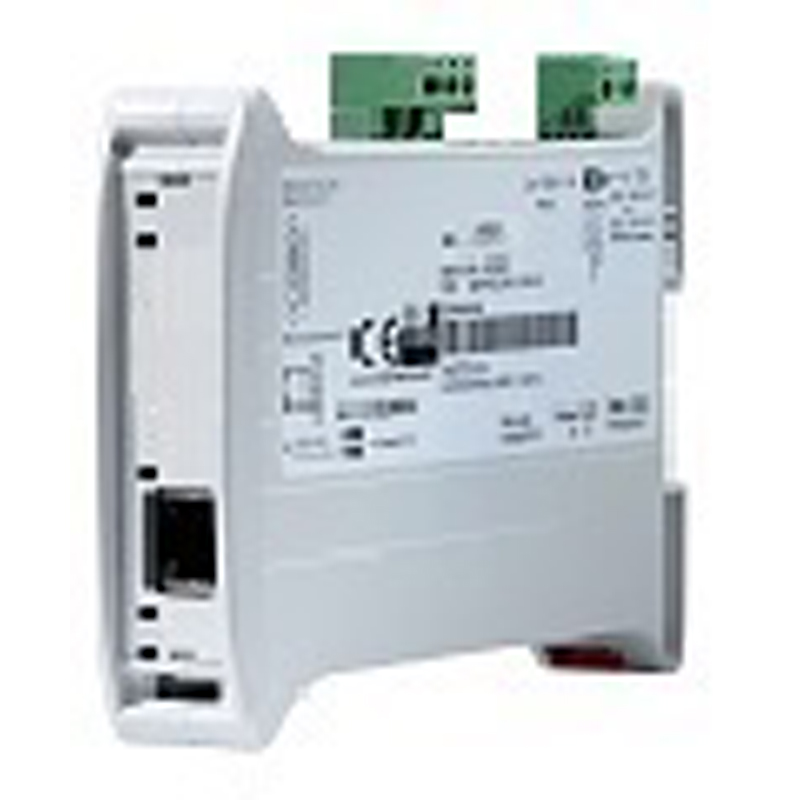

IEC 61850 Server / Ethernet - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 2xEthernet
Ethernet Protocol CANopen
IEC 61850 Protocol Server
Data Rates Ethernet 10/100 Base-T Autosensing
Data Rates IEC 61850 10/100 Base-T Autosensing
Ethernet Connector RJ45
IEC 61850 Connector RJ45
Power Supply 8..24V AC; 12..35V DC
Power Supply Connector 2way 5mm terminal block
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing 35mm DIN Rail montage
Software SW67756



HD67781-A1

IEC 61850 Client / Ethernet - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 2xEthernet
Ethernet Protocol CANopen
IEC 61850 Protocol Client
Data Rates Ethernet 10/100 Base-T Autosensing
Data Rates IEC 61850 10/100 Base-T Autosensing
Ethernet Connector RJ45
IEC 61850 Connector RJ45
Power Supply 8..24V AC; 12..35V DC
Power Supply Connector 2way 5mm terminal block
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing 35mm DIN Rail montage
Software SW67781



Accessories


Order Code Description
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC
AC34131 Patch Cross Cable Cat6 2 Meters
