Ethernet to HART

Part No.: MPADFW-Ethernet-to-HART

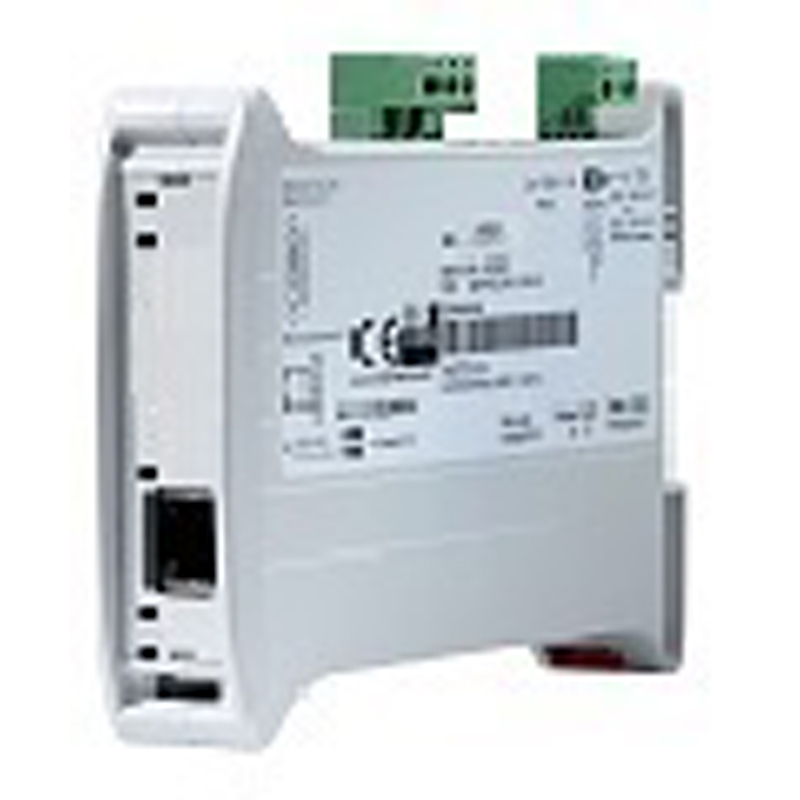

The HD67905-A1 are Ethernet / HART converters.

產品介紹

Ethernet / HART - Converter

The HD67905-A1 are Ethernet / HART converters.

They allow to monitor HART devices (like Sensors, etc..) with an Ethernet net (like PC etc..).

On the HART side, the HD67905-A1 can manage up to 15 deivces (+1 Secondary Master).

HD67905-A1 supports HART FSK.
HD67905-A1 can be used like Primary HART Master or like Secondary HART Master.



EtherNet / HART



HD67905-A1

Ethernet / HART Master - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 1xEthernet; 1xHART
Ethernet Protocol UDP / TCP
HART Protocol HART FSK Master + 4..20mA Analog Input
Data Rates Ethernet 10/100 Base-T Autosensing
Data Rates HART 1200bps
Ethernet Connector RJ45
HART Connector 2way 5mm terminal block
Power Supply Connector 2way 5mm terminal block
Power Supply 8..24V AC; 12..35V DC
HART Power Supply Additional power supply 24 V DC for HART devices
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 (LxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
SOFTWARE SW67905



Accessories


Order Code Description
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC
AC34131 Patch Cross Cable Cat6 2 Meters
