Ethernet to DeviceNet

Part No.: MPADFW-Ethernet-to-DeviceNet
This series of products allows to integrate an Ethernet network with a DeviceNet net.

產品介紹

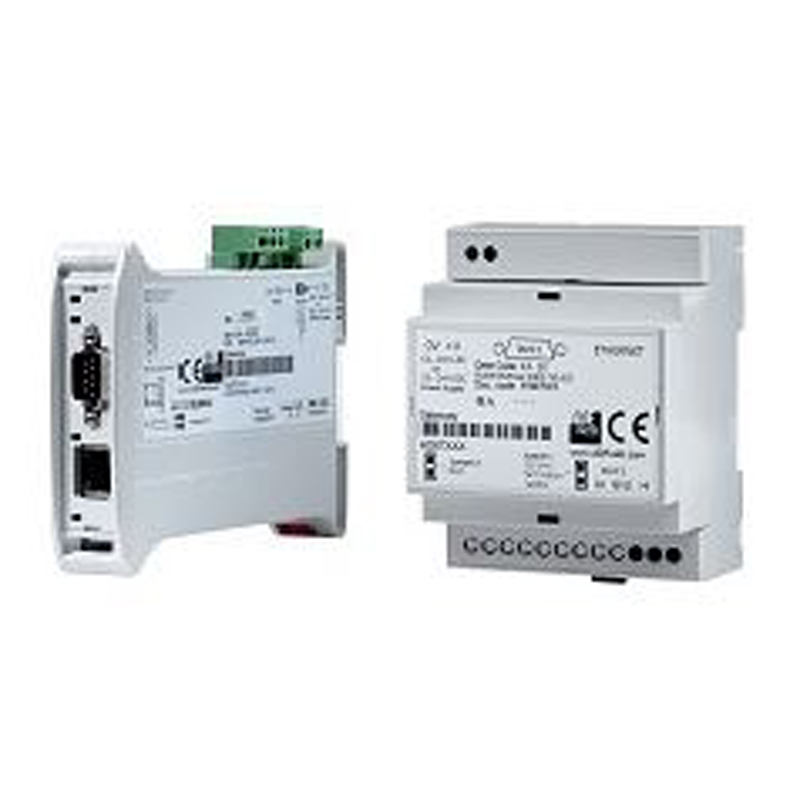

Ethernet / DeviceNet - Converter

This series of products allows to integrate an Ethernet network with a DeviceNet net.

The HD67043 is a Ethernet / DeviceNet Slave Converter and it allows you to connect an Ethernet net with a DeviceNet Master network (for example an Allen-Bradley PLC...) in order to exchange the informations between the networks.

The HD67154 is a Ethernet / DeviceNet Master Converter and it allows you to connect some DeviceNet Slaves with an existing Ethernet network.

They are available with differents connectors:

  • HD67154-A1 - Ethernet / DeviceNet Master (Terminal Blocks Connectors)
  • HD67154-A3 - Ethernet / DeviceNet Master (M12 Connectors)
  • HD67154-A4 - Ethernet / DeviceNet Master (Mini-Fit Connectors)

Series Ethernet from/to DeviceNet Slave



HD67043-A1

Ethernet / DeviceNet Slave - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 1xEthernet; 1xDeviceNet
Ethernet Connector RJ45
Power supply Connector
Terminal Block
Data Rates Modbus Up to 115200 bps
Power Supply 8...19V AC ; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67043



HD67043-B2

Ethernet / DeviceNet Slave - Converter ( Housing type: B, Terminal Blocks Connectors )





Ports 1xEthernet; 1xDeviceNet
Ethernet Connector RJ45
Power Supply Connector Terminal Block
Data Rates Modbus Up to 115200 bps
Power Supply 8...19V AC ; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 71x60x95 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67043



Series Ethernet from/to DeviceNet Master



HD67154-A1

Ethernet / DeviceNet Master - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 1xEthernet; 1xDeviceNet
Ethernet Connector RJ45
Power supply Connector Terminal Block
Power Supply 8...19V AC; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67154



HD67154-B2

Ethernet / DeviceNet Master - Converter ( Housing type: B, Terminal Blocks Connectors )





Ports 1xEthernet; 1xDeviceNet
Ethernet Connector RJ45
Power Supply Connector Terminal Block
Power Supply 8...19V AC; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 71x60x95 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67154





Accessories


Order Code Description
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC
AC34107 Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m
AC34114 Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m

Benefits

  • Software for easy configurator
  • Designed for serius use
  • Very easy to configure
  • Low cost
  • Rail din mountable
  • Wide supply input range
  • Galvanic isolation
  • Industrial temperature range:  -30°C / 70°C (-22°F / 158°F)
