This series of products allows to integrate an EtherNetIP network with a KNX net.
產品介紹
EtherNetIP / KNX - Converter
This series of products allows to integrate an EtherNetIP network with a KNX net.
The HD67806 is a EtherNetIP Master / KNX Converter and it allows you to connect some EtherNetIP Slaves (for example Encoder, I/O...) with a KNX net (for example light switches, actuators...) in order to exchange the informations between the networks.

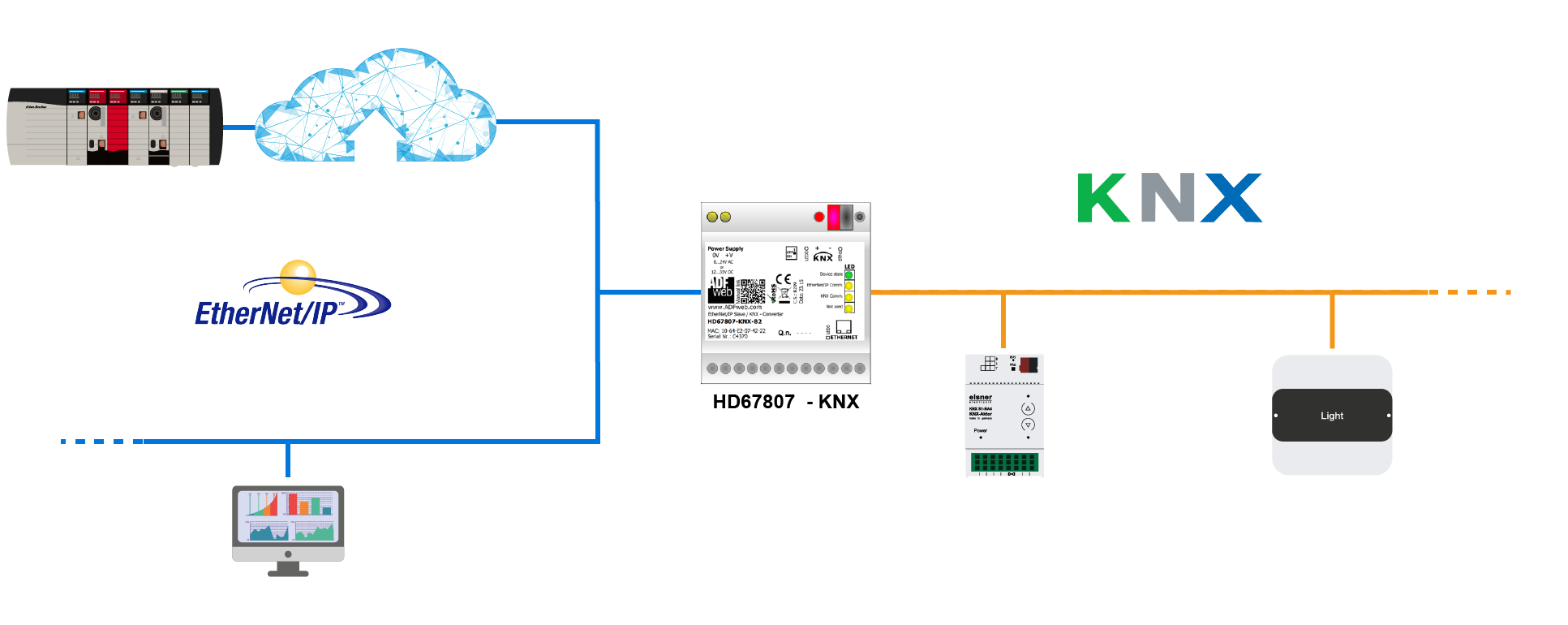

The HD67807 is a EtherNetIP / KNX Converter and it allows you to connect an EtherNetIP net (for example an Allen-Bradley PLC, a ABB robot...) with a KNX net (for example light switches, actuators...) in order to exchange the informations between the networks.
.png)
This converters are very easy to configure and allows you to interface an EtherNetIP system with the KNX world.
On KNX side you can connect all the common KNX devices such as temperature sensors, shutters, light switches, actuators, alarms etc.

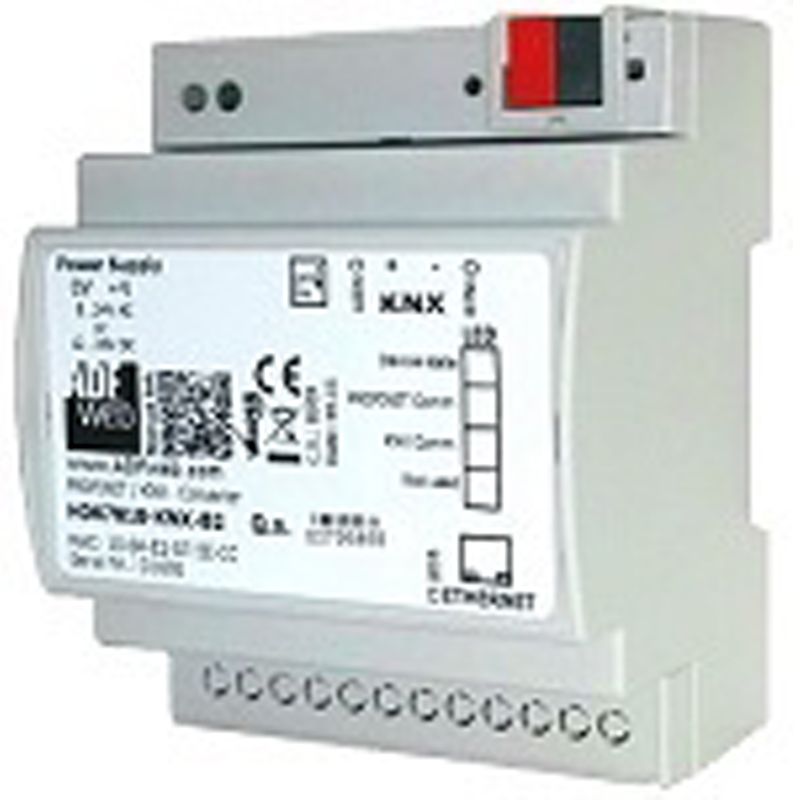

HD67806-KNX-B2
Ethernet/IP Master / KNX - Converter (Ethernet Switch Inside for enter/exit connection, Housing type: B, Terminal Blocks Connectors)
| Ports | 2xEthernet | |
|---|---|---|
| KNX Protocol | KNX TP | |
| Ethernet Protocol | Ethernet/IP Master | |
| Data Rates KNX | 9600 bit/s | |
| Data Rates Ethernet | 10/100 Base-T Autosensing | |
| KNX Connector | KNX Bus connector | |
| Ethernet Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67806 | |
HD67807-KNX-B2
Ethernet/IP / KNX - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: B, Terminal Blocks Connectors )
| Ports | 1xKNX; 1xEthernet | |
|---|---|---|
| KNX Protocol | KNX TP | |
| Ethernet Protocol | Ethernet/IP slave | |
| Data Rates KNX | 9600 bit/s | |
| Data Rates Ethernet | 10/100 Base-T Autosensing | |
| KNX Connector | KNX Bus connector | |
|
Ethernet Connector
|
RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67807 | |
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34-AB1TP | KNX Power Supply - KNX out 640mA - in 240VAC |
| AC34-AG1TP | KNX Power Supply - KNX out 640mA + AUX out 30VDC - in 240VAC |
