EthernetIP to J1939

Part No.: MPADFW-EthernetIP-to-J1939
This series of products allows to integrate a EtherNetIP network with a J1939 net.

產品介紹

EtherNetIP / J1939 - Converter

This series of products allows to integrate a EtherNetIP network with a J1939 net.

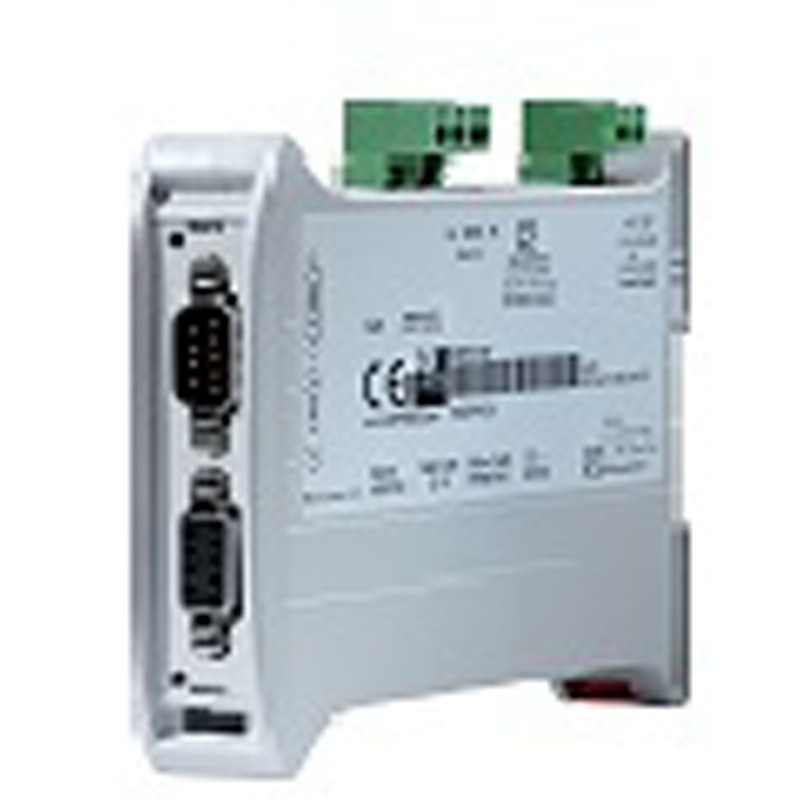

The HD67599 is a EtherNetIP / J1939 Converter and it allows you to connect some J1939 devices (like common engines based on SAE J1939 CAT, Cummins, Iveco…) with an EtherNeIP net (for example an Allen-Bradley PLC, an OMRON PLC...) in order to exchange the informations between the networks.

The converters are available also in another version, ideal for STRONG applications.

The corresponding models are:

  • HD67447 - EtherNetIP / J1939, STRONG Converter

These converters are contained in a metal housing, so it is STRONG and RESISTANT to the vibrations and shocks. The electrical parts are with triple isolation of 4000 V between EtherNetIP/J1939 - EtherNetIP/Power Supply – J1939/Power Supply.
Particularly suitable for the installation on cars, trains, boats, industrial sector and in fragile environments.
Two versions, one with Varnished PCB and one with Resined PCB.
Varnished treatment gives dust and humidity protection, Resined treatment gives high water, dust and vibrations protection.
Excellent range of temperature resistance from -40°C to +105°C, features required by AUTOMOTIVE applications.



Series J1939 from/to EtherNet/IP



HD67599-A1

EtherNet/IP / J1939 - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )





Ports 1xJ1939; 1xEtherNet/IP
Data Rates J1939 Up to 1Mbps
Data Rates Ethernet 10/100 Base-T Autosensing
J1939 Connector 3way 5mm removable screw terminal
Ethernet Connector RJ45
Power Supply 8..24V AC; 12..35V DC
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67599



EtherNet/IP / J1939 Converter

Products supplied with metal housing (Housing type: E), are STRONG and RESISTANT to mechanical stress (such as vibration and shock), electrical parts with a triple insulation 4 kV between J1939/EtherNet/IP – J1939/Power Supply – EtherNet/IP/Power Supply.

Particularly suitable for installation in cars, trucks, trains, boats, in the industrial sector and in fragile environments.Two versions, one with a coating of the PCB (suffix code V) that ensures total protection to the dust (IP65) and another encapsulation-based resin (suffix code R) which gives to device the high performance safety and insulation for wet environments (IP67) and to resist to noise.
This product can be mounted on any type of surface (horizontal, vertical and oblique) with four fixing lugs, also you can choose the type of connector, Mini-Fit or Superseal 1.5.Excellent range of temperature resistance from -40 ° C to +105 ° C, features required by AUTOMOTIVE.



HD67447-E4V

EtherNet/IP / J1939 - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )





Ports 1xCAN, 1xEthernet
Data Rates J1939 up to 1 Mbps
Data Rates EtherNet/IP 10/100 Base-T Autosensing
J1939 Connector 3way Mini-Fit®
EtherNet/IP Connector RJ45
Power Supply Connector 2way Mini-Fit®
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67447



HD67447-E4R

EtherNet/IP / J1939 - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )





Ports 1xCAN, 1xEthernet
Data Rates J1939 up to 1 Mbps
Data Rates EtherNet/IP 10/100 Base-T Autosensing
J1939 Connector 3way Mini-Fit®
EtherNet/IP Connector RJ45
Power Supply Connector 2way Mini-Fit®
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67447



HD67447-E7V

EtherNet/IP / J1939 - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )





Ports 1xCAN, 1xEthernet
Data Rates J1939 up to 1 Mbps
Data Rates EtherNet/IP 10/100 Base-T Autosensing
J1939 Connector 3way SuperSeal 1.5
EtherNet/IP Connector 4way SuperSeal 1.5
Power Supply Connector 2way SuperSeal 1.5
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40ºC/+105ºC (-40ºF/+221ºF)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67447



HD67447-E7R

EtherNet/IP / J1939 - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )





Ports 1xCAN, 1xEthernet
Data Rates J1939 up to 1 Mbps
Data Rates EtherNet/IP 10/100 Base-T Autosensing
J1939 Connector 3way SuperSeal 1.5
EtherNet/IP Connector 4way SuperSeal 1.5
Power Supply Connector 2way SuperSeal 1.5
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40ºC/+105ºC (-40ºF/+221ºF)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW67447



Series J1939 from/to EtherNet



HD67213

J1939 / Ethernet - Converter ( Housing type: A, Terminal Blocks Connectors )





Ports 1xJ1939; 1xEthernet
Data Rates J1939 Up to 1 Mbps
Ethernet Protocol TCP or UDP
Power Supply 8...19V AC ; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67213



HD67213M

J1939 / Ethernet - Converter ( Housing type: B, Terminal Blocks Connectors )





Ports 1xJ1939; 1xEthernet
Data Rates CAN Up to 1 Mbps
Ethernet Protocol TCP or UDP
Power Supply 8...19V AC ; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 71x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67213



Tools Accessories



HD67316-E-A1

CAN Analyzer Hardware and Software ( PC Interface port: Ethernet )





Standard ISO 11898
Ports 1xCAN; 1xEthernet
CAN Baudrate Up to 1Mbps
Isolation 2000V DC
CAN Connector Removable Screw Terminal
Power Supply 8...19V AC; 8...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 120x36x107 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67216



HD67316-U-D1

CAN Analyzer Hardware and Software ( PC Interface port: USB )





Standard ISO 11898
Ports 1xCAN; 1xUSB
CAN Baudrate Up to 1Mbps
Isolation 2000V DC
CAN Connector Removable Screw Terminal
Power Supply Given by USB port
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 119x27x65 mm(DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67216



Specifications
Ports 1xCAN; 1xEthernet/IP
Data Rates CAN Up to 1Mbps
Data Rates Ethernet 10/100 Base-T Autosensing
CAN Connector 3way 5mm removable screw terminal
Ethernet Connector RJ45
Power Supply 8…24V AC; 12…35V DC
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 120x23x107 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage



Accessories


Order Code Description
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC

Benefits

  • Software for easy configurator
  • Designed for serius use
  • Very easy to configure
  • Low cost
  • Rail din mountable
  • Wide supply input range
  • Galvanic isolation
  • Industrial temperature range:  -30° / 70° (-22°F / 158°F)
